This 5 channel unit allows for control of any LED strip (up to 5 channels) via wireless Zigbee control. This is the perfect solution for controlling your LED strips via a robust wireless control method. Works with any Zigbee/WiFi control bridge such as the Philips Hue bridge.
- 4 LED strip control options (White, Colour Temperature Adjustable, RGBW, and RGB+Colour Temperature Adjustable)Â

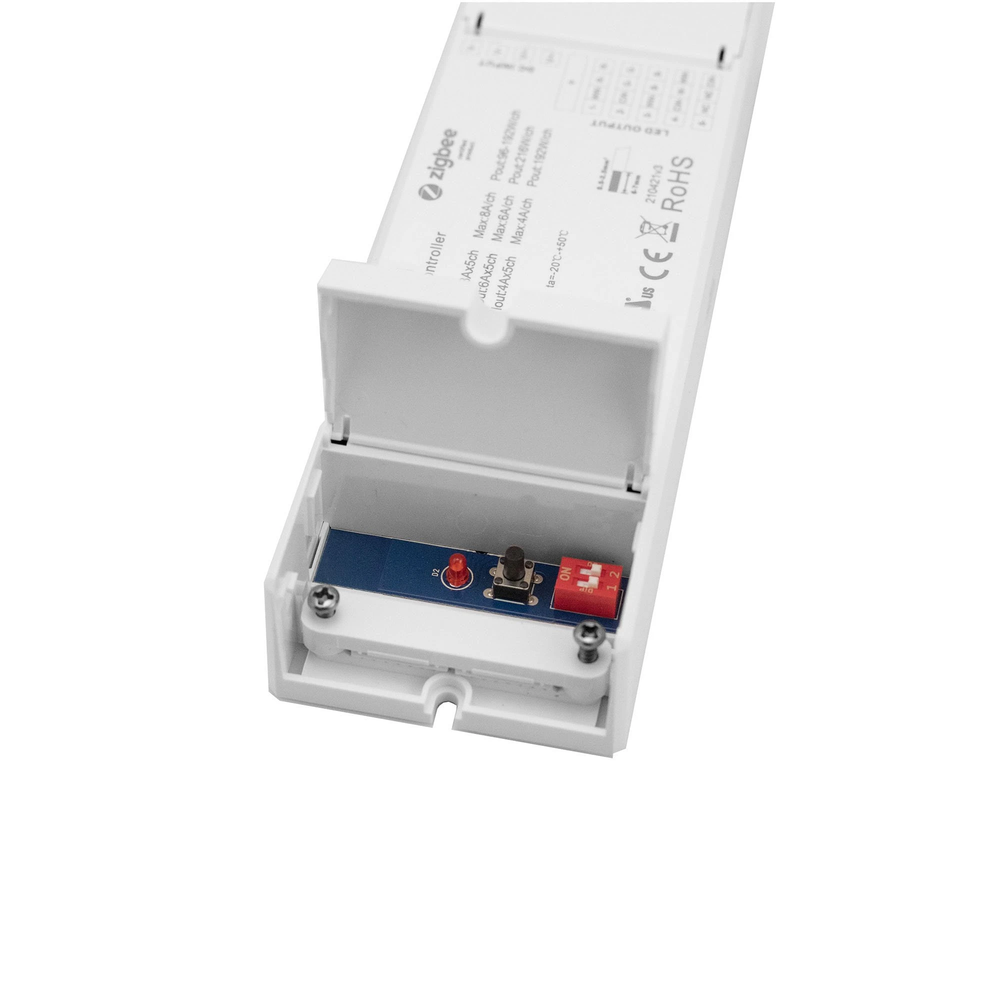

- Control mode is settable via dipswitches
- Connects wirelessly to a Zigbee network
- Requires a Zigbee hub to be able to bridge to your phone or control device
- Can be controlled remotely via smartphone apps (iPhone or Android)
- Controls include dimming/colour temperature adjustments/RGB/RGBW/RGBWW
Â
Technical Specifications
|
Output Current (A) |
: |
5 CH @ 8A/CH = Max 40A |
|
Output Power (W) |
: |
480W @ 12V / 960W @ 24V / 1,080 @ 36V / 960 @ 48V |
|
Supply Voltage |
: |
12V - 24V DC / 36V / 48V |
|
Size (MM) |
: |
148 X 87 X 23Â |
|
Working Temperature |
: |
-20°C to + 50°C |
|
Weight |
: |
380g |
|
PWM Frequency |
: |
1 kHz |
|
IP Rating |
: |
IP40 - Indoor Use Only |
|
Flicker Free |
: |
Yes |
|
Bit Rate |
: |
N/A |

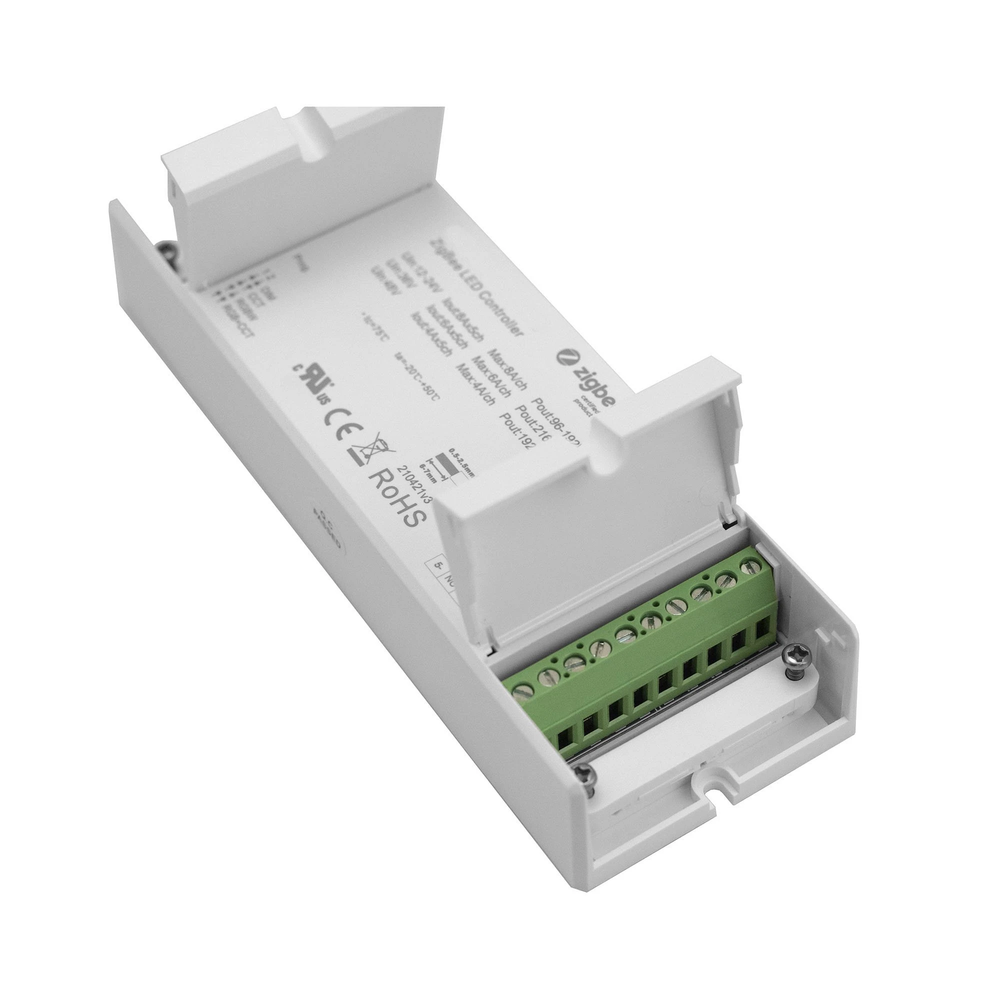

 **Connector Tails Not Included**
Â
Â
DOWNLOADS
UL Certificate of ComplianceÂ
Zigbee Range
|
Outdoor |
: |
300 meters (985 foot) |
|
Indoor (no barriers/walls) |
: |
75 ~ 100m (246 ~ 328 feet) |
|
Indoor (with walls and furniture) |
: |
12 ~ 25m (40 ~ 82 feet) |
