Ferrule Terminal - Gray

Ferrule Terminal - Gray

SKU FRLEDBLE_20AWG
by Various
$0.35
Size
Style
Quantity
Availability: Translation missing: en.general.icons.icon_check_circle icon 481 in stock, ready to be shipped

Perfect for making quick, permanent, secure connections.

Low profile for limited space applications

Internal wire stop assures proper length of insertion into terminal barrel




SPECIFICATIONS

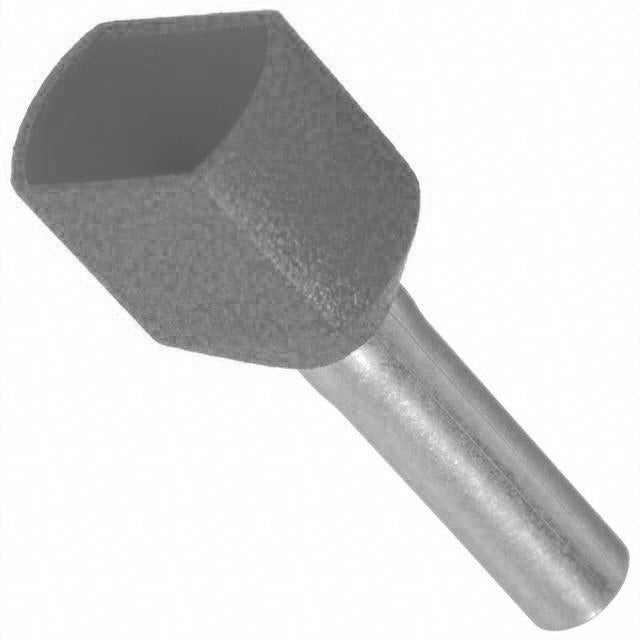

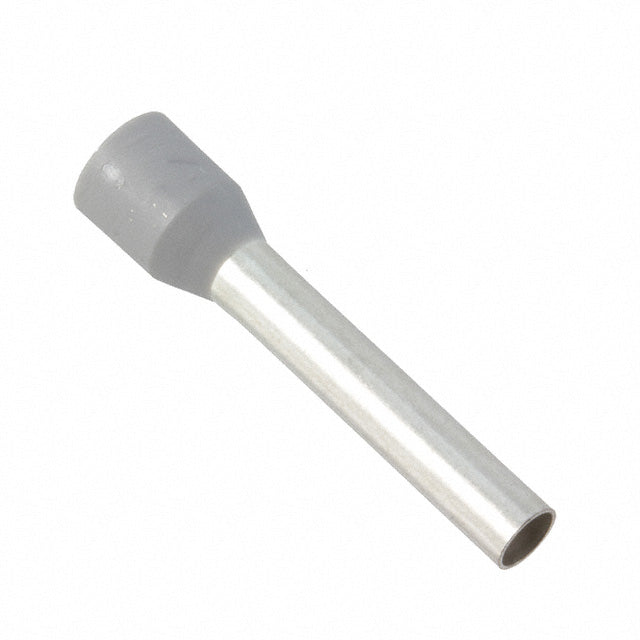

Style : Ferrule Crimp - Single Ferrule Crimp - Double
Wire Size : 20AWG 20AWG
Barrel Configuration : Standard Standard
Base Material : Copper Copper
Insulation : Nylon Nylon
Color Code : Gray Gray
Plating Type : Tin Plated Copper Tin Plated Copper

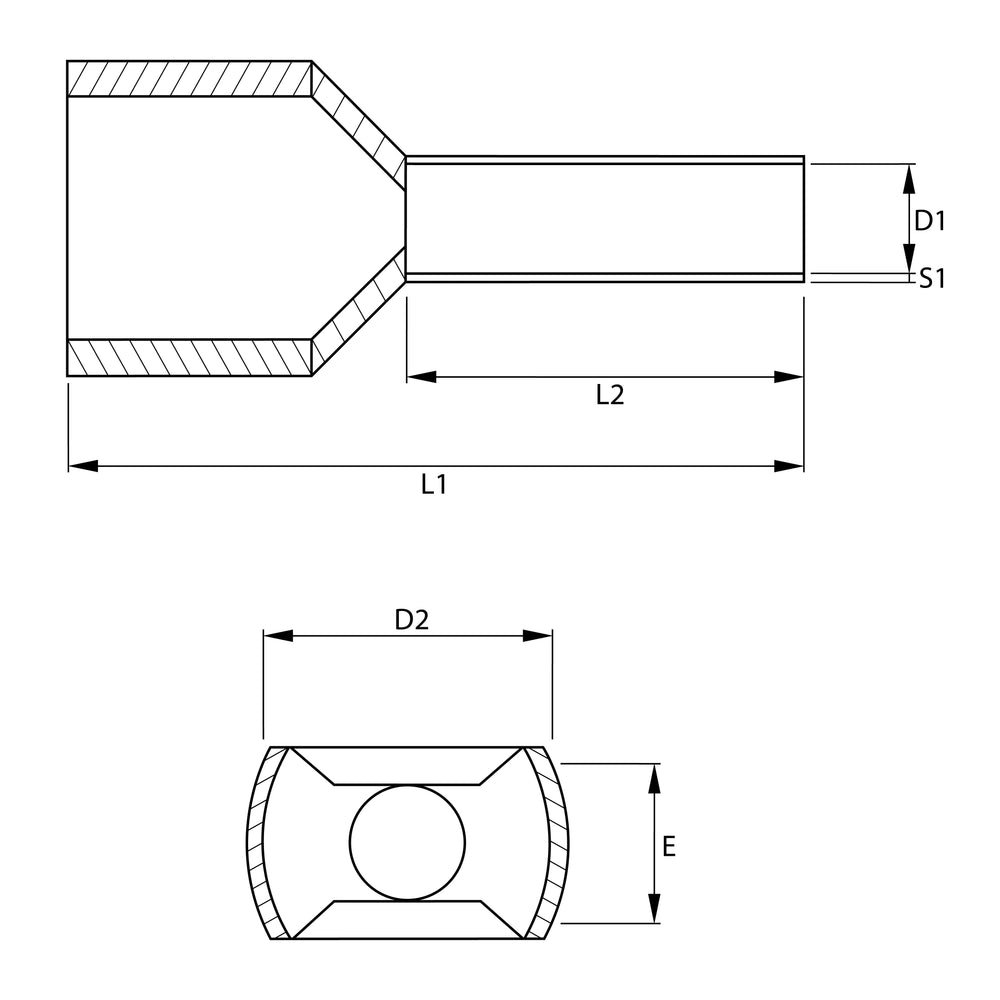

E : N/A 3.0mm (0.12")

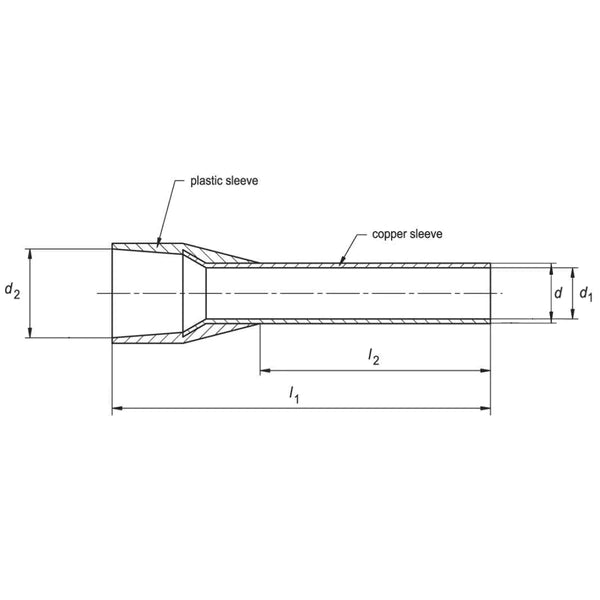

L1
 : 14.0mm (0.5551") 14.7mm (0.57")

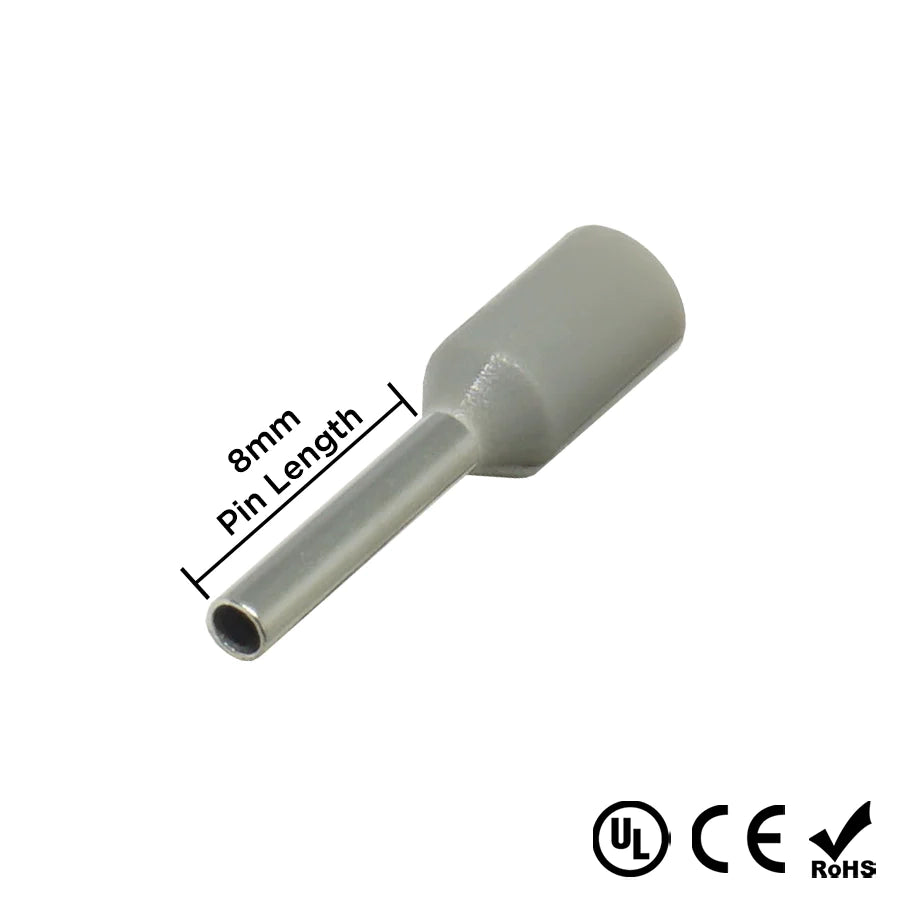

L2
 : 8.0mm (0.32") 8.0mm (0.31")
D
 : 1.57mm (0.062") N/A
D1
 : 1.2mm (0.047") 1.7mm (0.07")
D2
 : 2.8mm (0.11") 5.4mm (0.21")
S2 : N/A 0.3mm (0.01")
Max Electrical Rating : 105 °C (221 °F) - 600 Volts 105 °C (221 °F) - 600 Volts
Max Electrical Current : 18A 18A
UL Approved : Yes Yes
CE Compliant : Yes Yes
RoHS Compliancy Status : Compliant Compliant
