Powerful magnets designed for mounting anything, anywhere!
12.28 lbs pull force from magnet to metal.

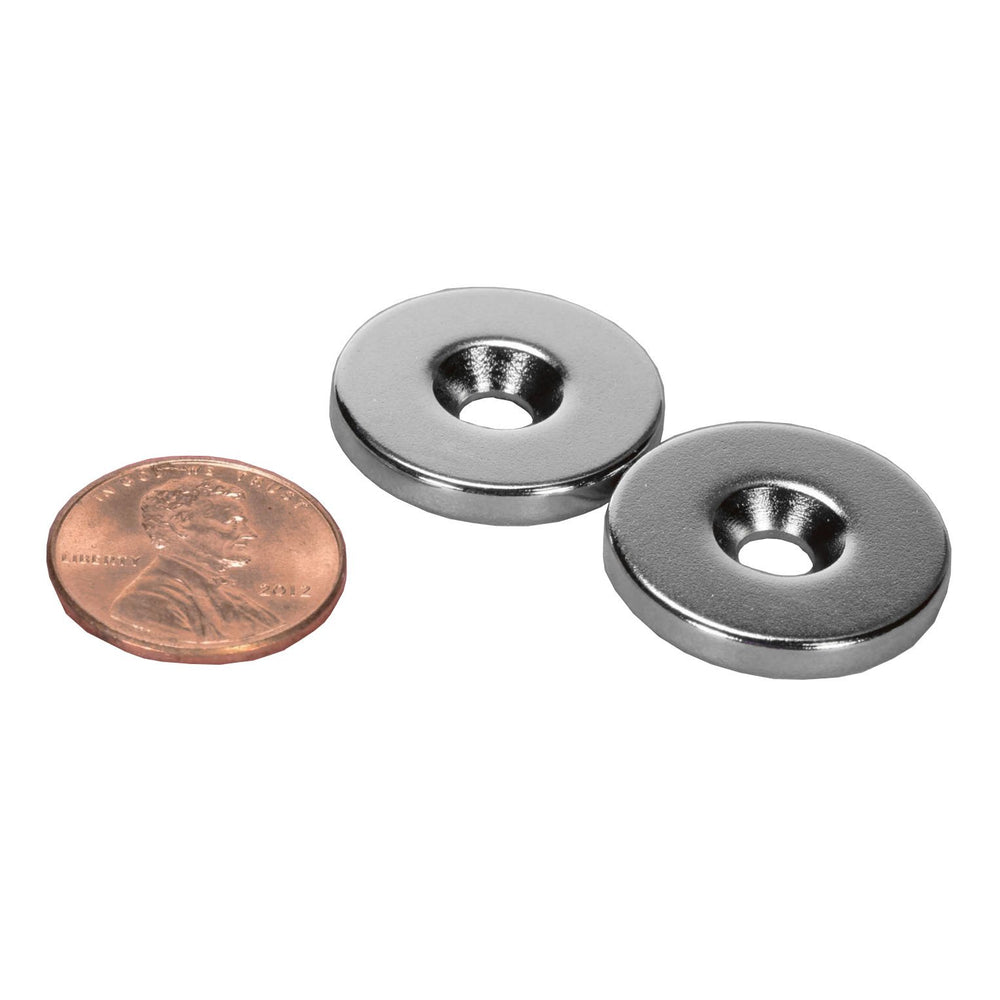

47.14 lbs pull from magnet to magnet.

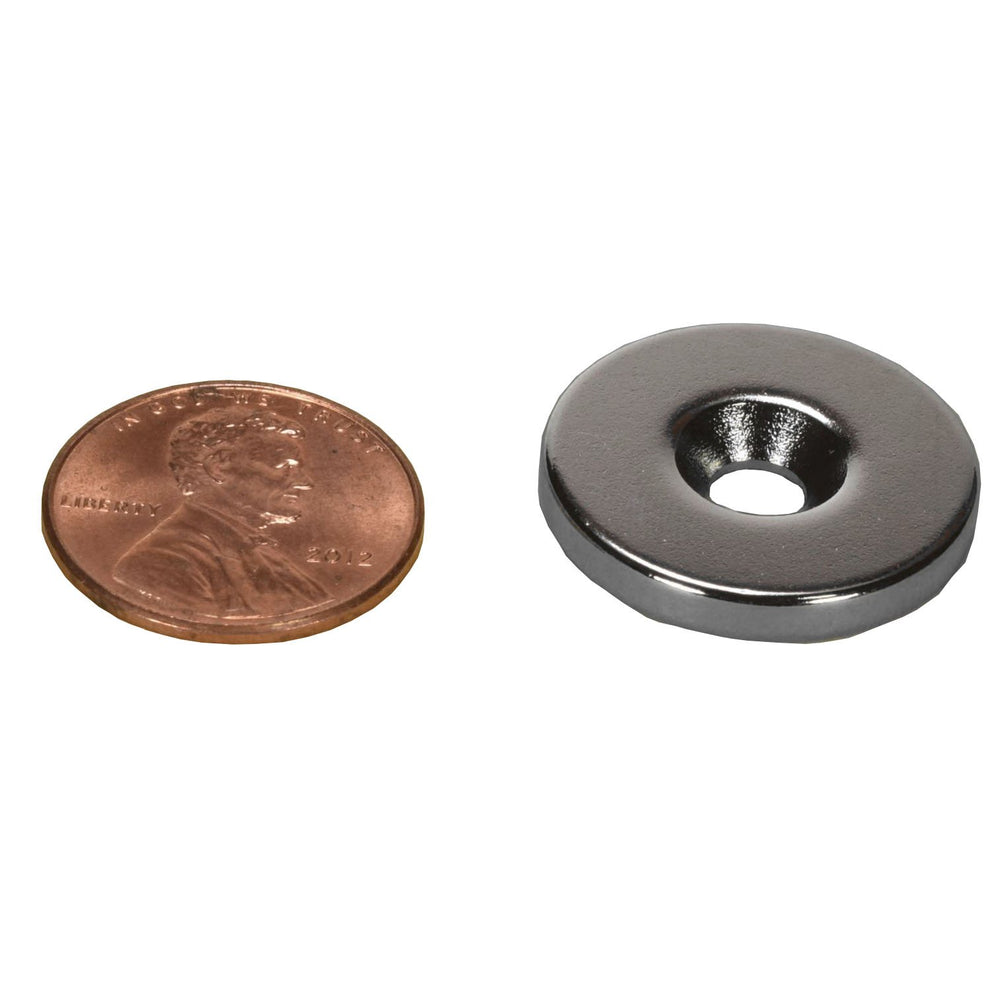

These are 7/8" diameter x 1/8" thick countersunk ring magnets sized to accept a #8 countersunk screw.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | North Pole |
South Pole |
Pair |
| Product Code | : | MAG0_875_0_125_CSH_N | MAG0_875_0_125_CSH_S | MAG0_875_0_125_CSH_NS |

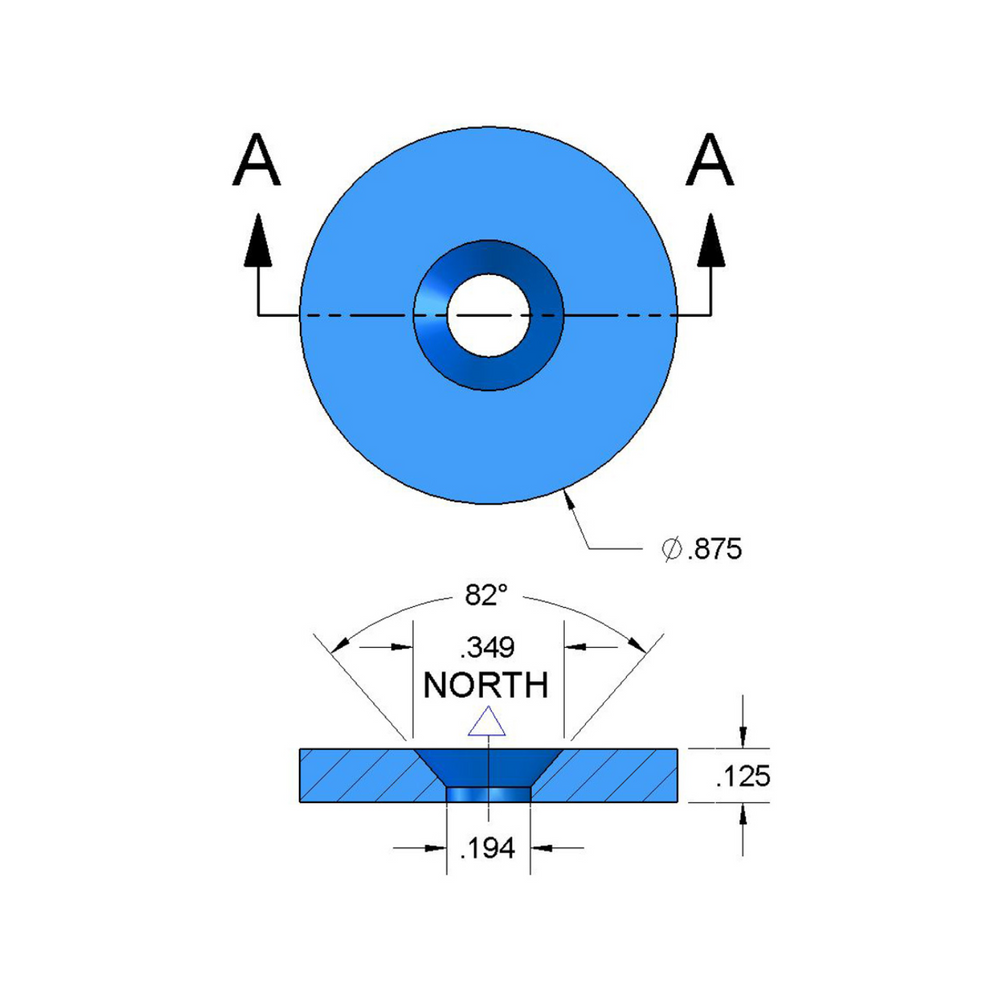

| Dimensions | : | 7/8" od x 1/8" thick with countersunk hole for #8 screw | 7/8" od x 1/8" thick with countersunk hole for #8 screw | 7/8" od x 1/8" thick with countersunk hole for #8 screw |
| Tolerances | : | ±0.004" x ±0.004" x ±0.004" x ±0.004" | ±0.004" x ±0.004" x ±0.004" x ±0.004" | ±0.004" x ±0.004" x ±0.004" x ±0.004" |
| Material | : | NdFeB, Grade N52 | NdFeB, Grade N52 | NdFeB, Grade N52 |
| Plating (Coating) | : | Ni-Cu-Ni (Nickel) | Ni-Cu-Ni (Nickel) | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | : | Axial (Pole on Flat Ends) | Axial (Pole on Flat Ends) | Axial (Pole on Flat Ends) |
| Weight | : | 9.05 g | 9.05 g | 18.1 g |
| Pull Force | : | 12.28lbs (to metal) | 12.28lbs (to metal) | 47.14lbs (to each other) |
| Max Operating Temp | : | 176ºF (80ºC) | 176ºF (80ºC) | 176ºF (80ºC) |
| Brmax | : | 14,800 Gauss | 14,800 Gauss | 14,800 Gauss |
| BHmax | : | 52 MGOe | 52 MGOe | 52 MGOe |
DOWNLOADS
Specification Sheet*nominal lifetime - dependent on installation location
