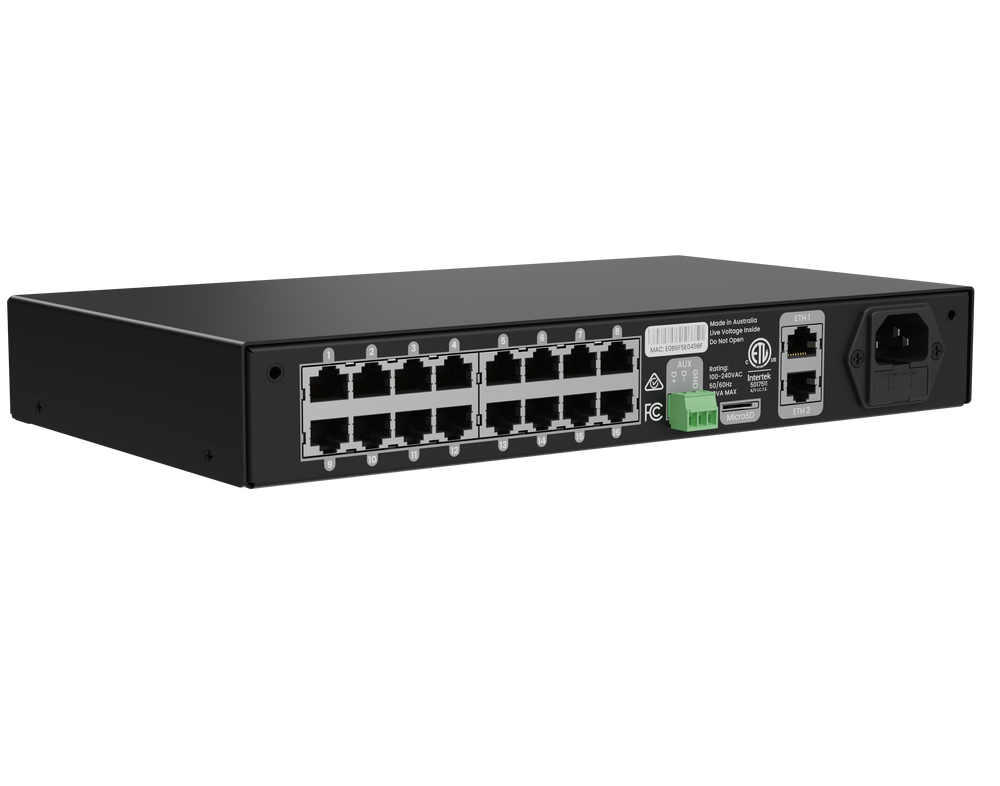

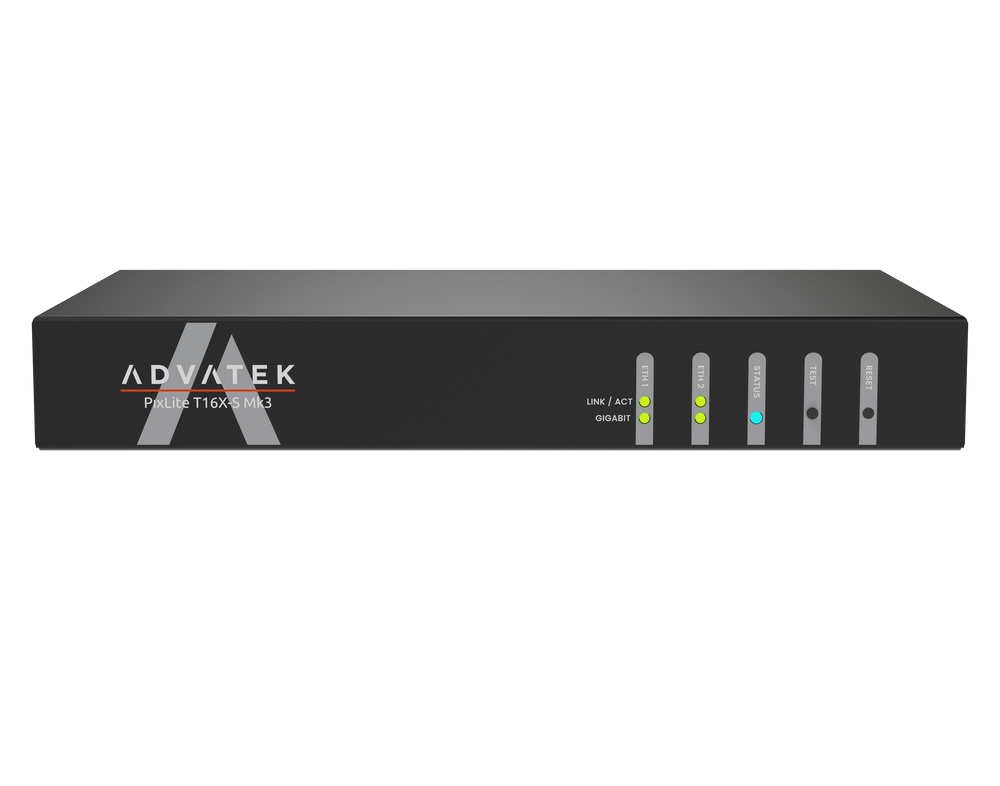

The PixLite® T16X-S Mk3 is a powerful long-range pixel LED controller that joins Advatek's bestselling T8-S Mk3 controller. This new model was developed with 16 output connectors to meet overwhelming demand from our customers for an even more powerful long-range solution in a reliable, user-friendly system.

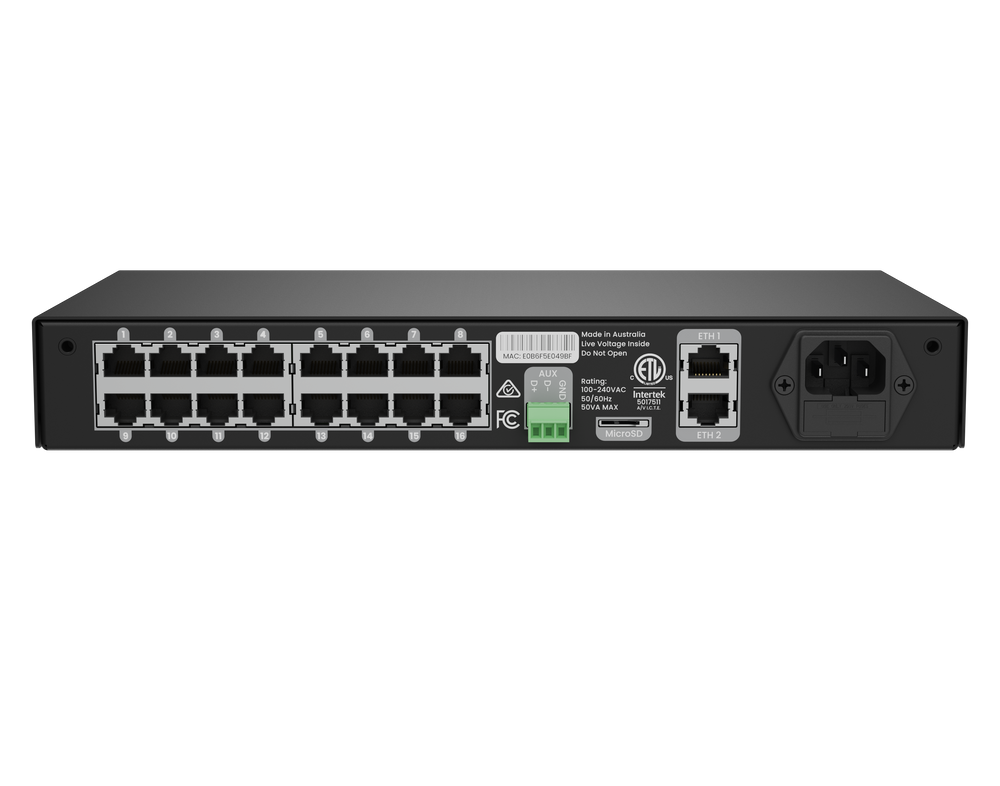

With a 300-meter data transmission range, the T16 is a high-performance, user-friendly long-range pixel controller, perfect for professional installations. It features 16 output connectors, each carrying half the signal pairs of a T8 output. While both support the same total universes, the T16 spreads its signals across more connectors, enabling more receivers to be connected to a single transmitter.
Reduce control costs by up to 40% when the T16X-S Mk3 is paired with its trusty sidekick – the PixLite® R1F-S.
The PixLite long range systems (in general) are useful for scenarios where the pixels are separated by some distance from each other and from the controller. A number of receivers can span a radius of 300 meters from the transmitter.
The R1 and T16 pairing lowers the cost of each run of pixels by reducing the cost of the receiver and reducing the number of transmitters.

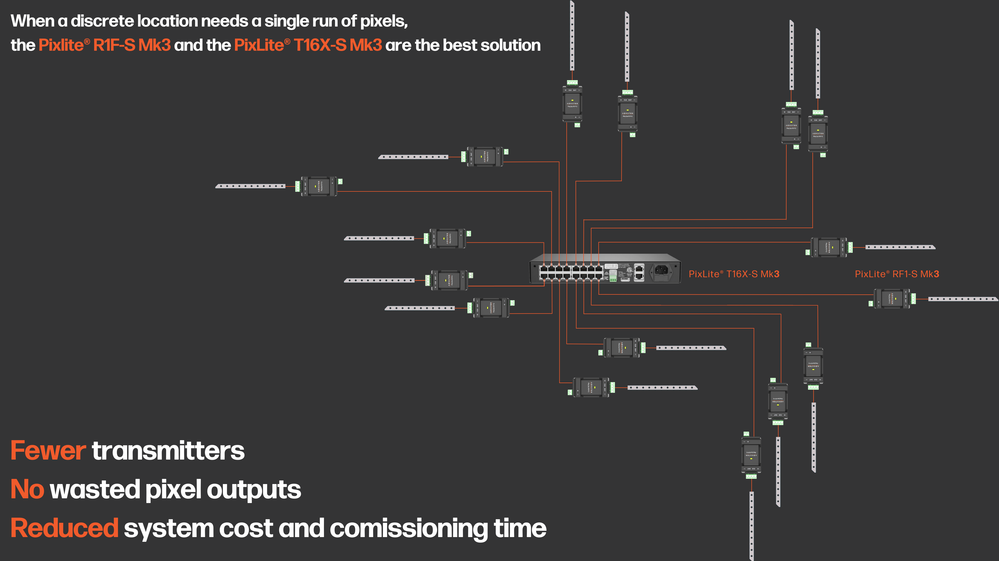

Example Scenario:
When a discrete location needs a single run of pixels, the R1/T16 is the best solution.
• Fewer transmitter units are required.
• Pixel outputs aren’t being wasted.
Example Scenario: 16 discrete locations, each with a single run of pixels.
• R2/T8 solution: 16x R2 units and 2x T8 units.
• R1/T16 solution: 16x R1 units and 1x T16 unit:
o No outputs are wasted.
o Reduced system cost and commissioning time.
In this scenario, the user saves about 40% on their control costs."
Features
- 16 pixel outputs
- Data output: RJ45 differential
- Max RGB pixels per outpput: 1020 (384 expanded mode)
- Expanded mode available
- Clocked pixels supported
- Duel ethernet ports
- Pixel input: sACN/ART-NET
- Data input: 2 x 10/100/1000Mbit/s Ethernet Ports
- Compatibility: R1F-S, R2F-S, R4D-S
- SHOWtime
- Record live data as scenes
- Create up to 25 powerful triggers
- Use scenes to create playlists
- Playback to pixel outputs and/or aux port
- Input universes: 96
- Universes per piixel output: 6 (3 expanded mode)
- Universe data hardware firewall
- Monitor data source
- Advanced diagnotic information per universe
- 60+ pixel protocols supported
- Extreme refresh rates
- Continued support for new pixel protocols
- Gamma correction
- Dithering
- Advanced mapping options
- Auto patch
- Hold last frame on timeout option
- Auto synchronized to data source
- Drop frame on overrun option
- Adjustable clock speed
- Power management
- Smart electronic fuses on pixel outputs
