Color Temperature adjustable high density FlexLED Tape
2700K - 6000K CRI >95
120, 196, and 240 LED/meter versions are now available. Three versions to suit your project. 120 LED/meter (12MM Width) standard as well as 196 LED/meter (10MM Width) high output version. The 196 LED/meter is ideally suited for areas where high output in a very tight space is required. The 196 & 240 LED/meter are designed to be installed onto a metal heat sink for longevity purposes. The 120 LED/meter can be installed on virtually any surface and still provide nominal output for many tens of thousands of hours of use.
All three versions are suitable for residential, television, industrial, and commercial applications where high CRI white output is required.
Single bin LED chip ensures CCT accuracy within +/- 100k.
TESA 4965 high tack double-sided tape on the back makes installation as easy as peel n stick. When used in damp or wet locations it is advised to use silicone caulking or glue to ensure proper adhesion.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
Controller, Power supply and Extension Cables are sold separately.
Custom Color Temperatures are available. Please contact us for specifics.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
Pricing is for 5 meters (16.4')
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Bi-Color 120 |
Bi-Color 196 |
Bi-Color 240 |
Bi-Color 480 |
| Product Code | : | I24VBC27606003528 | I24VBC27609803528 | I24VBC276012003528 | I24VBC276024003528 |
| CRI | : | ≥95 | ≥95 | ≥95 | ≥95 |
| Kelvin | : | 2700k - 6000k | 2700k - 6000k | 2700k - 6000k | 2700k - 6000k |
| PCB Color | : | White | White | White | White |
| Current, Rating | : | 0.79 A / meter | 1.4 A / meter | 1.59 A / meter | 1.59 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 19.2 W / meter | 33.6 W / meter | 38.4 W / meter | 38.4 W / meter |
| Wattage @ 5 Meters (Powered at one end) | : | 94 W | 139 W | 165 W | 163 W |
| Wattage @ 5 Meters (Powered at both ends) | : | 100 W | 166 W | 185 W | 179 W |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP43 | IP43 |
| Lumens @ Full | : | 2700k: 859lm 6000k: 1008m Combined 4000k: 1800lm |
2700K: 1400lm 6000k: 1700lm Combined 4000k: 3100lm |
2700k: 1610lm 6000k: 1955lm Combined 4000k: 3565lm |
2700k: 1610lm 6000k: 1955lm Combined 4000k: 3565lm |
| Lumen / Watt | : | 94 | 94 | 94 | 94 |
| Lifetime | : | 50,000 hours | 30,000 hours | 30,000 hours | 30,000 hours |

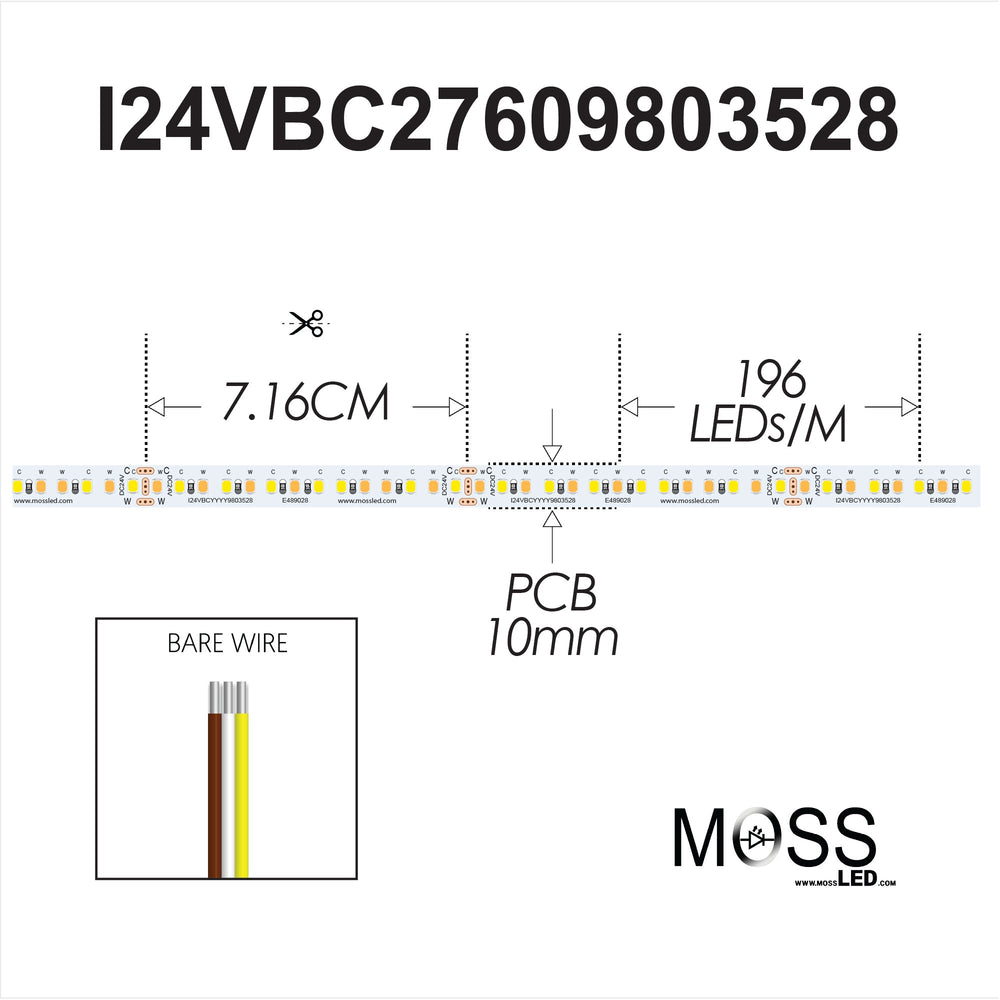

| Cutting Length* | : | 10.00 CM | 7.14 CM | 5.00 CM | 2.50 CM |
| LED Quantity | : | 120 LED / meter | 196 LED / meter | 240 LED / meter | 480 LED / meter |
| Number of Contacts | : | 3 | 3 | 3 | 3 |
| LED Type | : | 3528 | 3528 | 3528 | 3528 |
| Copper Quantity | : | 3 Oz. | 3 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 12MM | 10MM | 12MM | 28MM |
| Maximum Recommended Length | : | 10 meters | 5 meters | 5 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree | 120 degree |
| Adhesion | : | TESA 4965 | TESA 4965 | TESA 4965 | 3M 200MP |
* Rounded values. For high precision applications please contact our Tech. Dept. at extension 101
