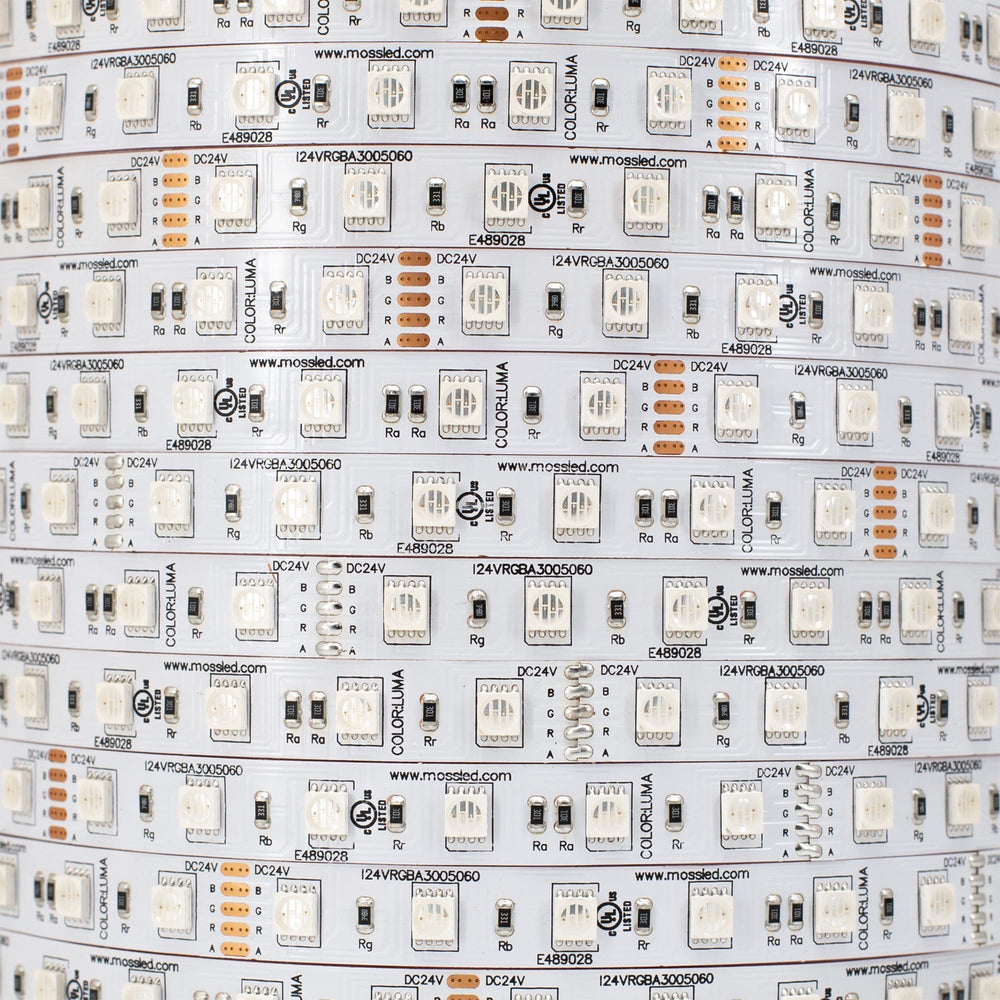

RGBA All-In-One Diode is extremely advantageous over the previous individual RGBA as the diodes are much closer together and in one chip package.
This allows for no rainbow effect when viewed from an angle or when installed close to a surface.
Customized Lengths Available.
Suitable for on-camera use, or anywhere a high-quality LED product is required.
Indoor and weatherproof strips have 3M 200MP double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone.
Maximum recommended length in order to prevent line-loss is 5m. (16.4')
Controller, Power supply and Extension Cables sold separately
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
Pricing is for 5 meters (16.4')
SPECIFICATIONS - INDOOR PRODUCT

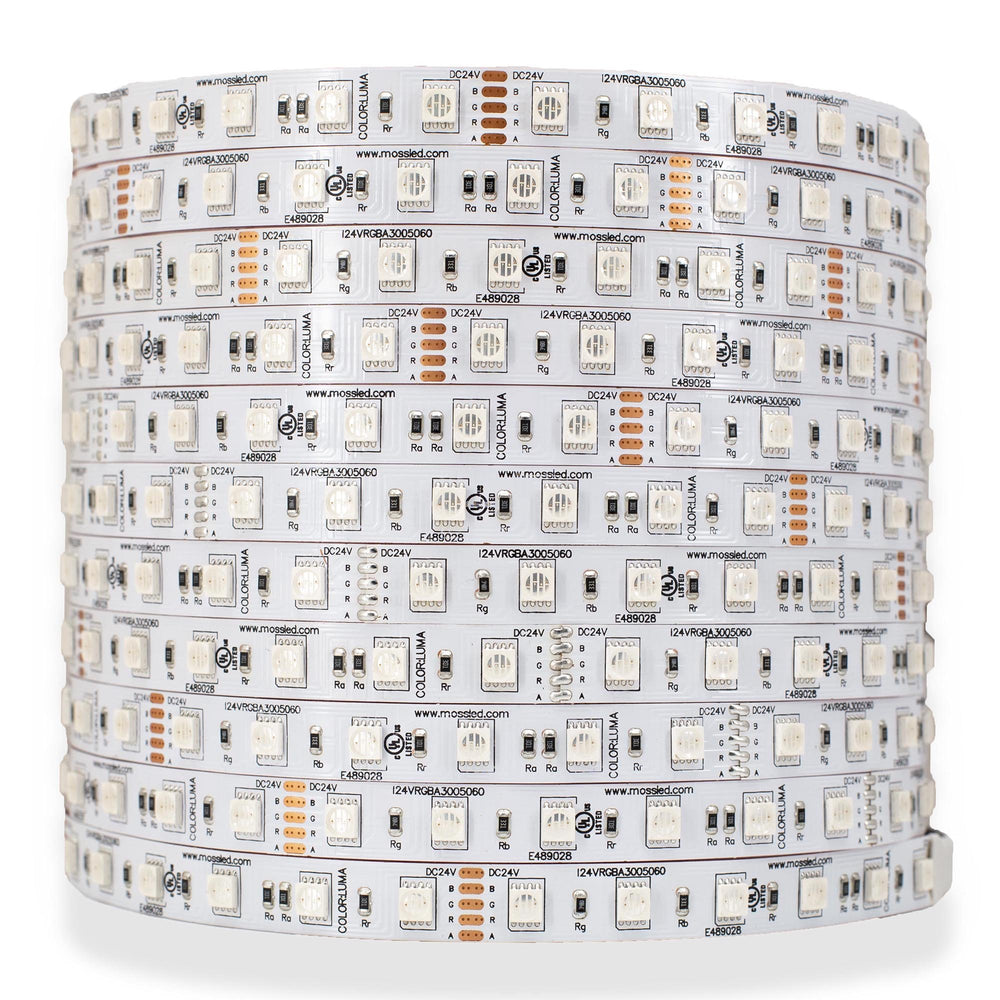

| Product Type | : | RGBA 60 24V (All-In-One Diode) |
| Product Code | : | I24VRGBA3005060 |
| CRI | : | N/A |
| Kelvin | : | RGBA |
| PCB Color | : | White |
| Current, Rating | : | 0.79 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 19.2 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 1300 lm / meter |
| Lumen / Watt | : | 67.7 |
| Lifetime* | : | 50,000 hours |

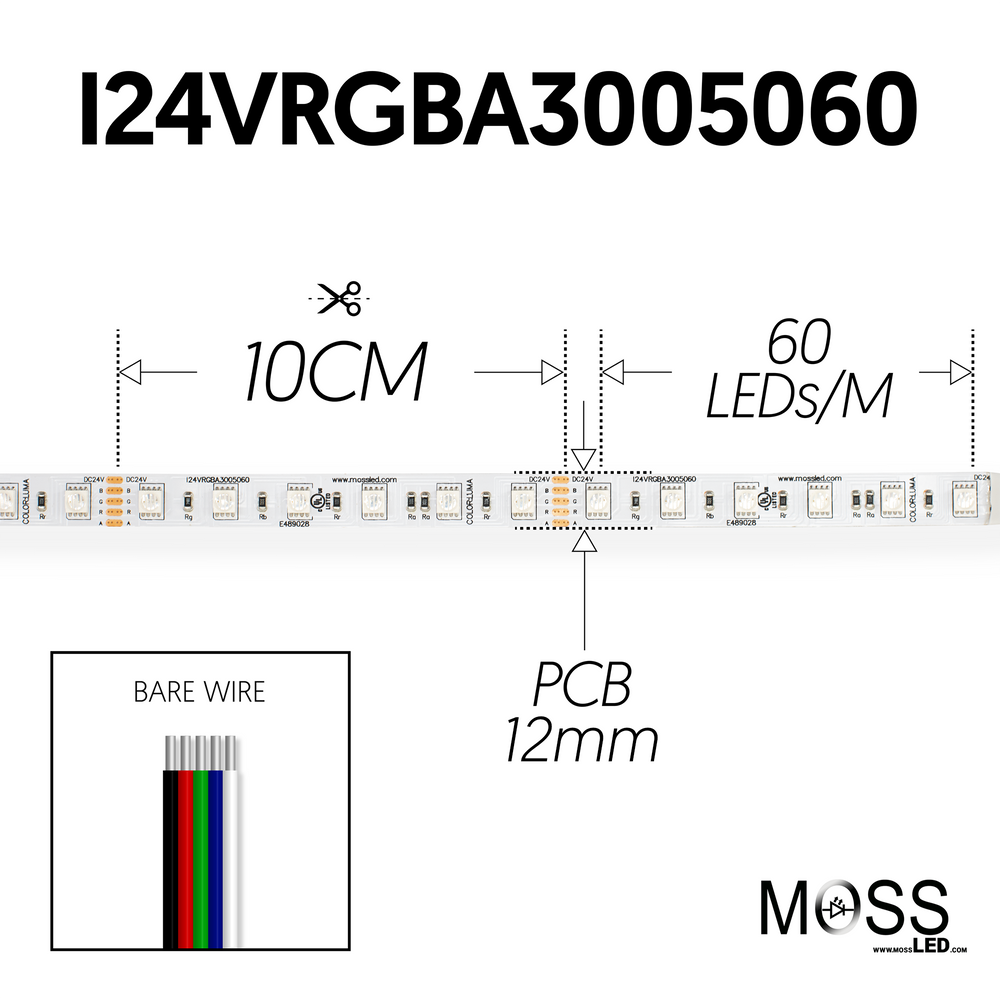

| Cutting Length | : | 10 CM |
| LED Quantity | : | 60 LED / meter |
| Number of Contacts | : | 5 |
| LED Type | : | 5060 |
| Copper Quantity | : | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 12MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 |
| Adhesion | : | 200MP 3M |
| Wavelength A Red | : | 620 ~ 625nm |
| Wavelength B Green | : | 520 ~ 525nm |
| Wavelength C Blue | : | 465 ~ 470nm |
| Wavelength D Amber | : | 590 ~ 595nm |
