5V Pixel Dots

5V Pixel Dots

SKU O5VMOD5050D4PRGBAPA102
by MossLED
Save 70%
$2.45
$0.74
Diffused
Colour
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 3188 in stock, ready to be shipped

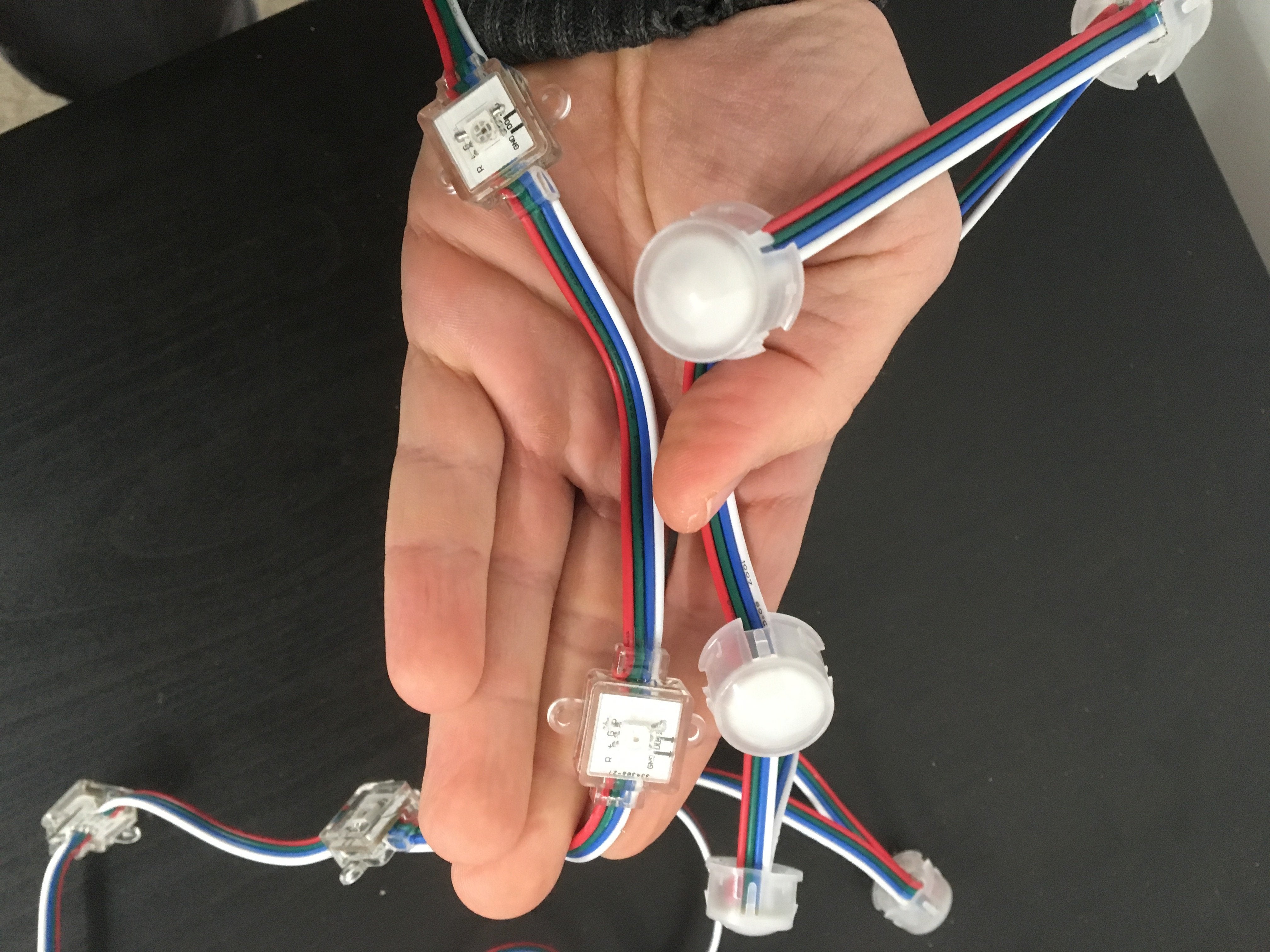

Individual controlled pixel dots.

5 Volt, APA 102 Chips.  Compatible with our LXFXBX & PixlArt416 controllers.



Pixel Product Installation Notes:
  • The PWM frequency (dimming frequency) is baked into the pixel and cannot be changed.  You must ensure you choose the right pixel strip for your application.  If you are unsure of what camera settings are going to be in use, it is best to go with high frequency pixel tape (8khz or higher / GS8208 or APA102)
  • Avoid voltage drop by positioning a power supply close to the LED and/or powering the LED from multiple locations (or via multiple power supplies)
  • The power supply that is providing power to the controller (PixlArt416) does not need to be the same power supply that is powering the LED.
  • Controller, power supply and extension cables are sold separately based on your project
  • Quantity discounts available
  • Custom colour temperatures, pixel densities, and PCB colour are available
  • Please contact us for more information

SPECIFICATIONS - WEATHERPROOF (IP66) PRODUCT

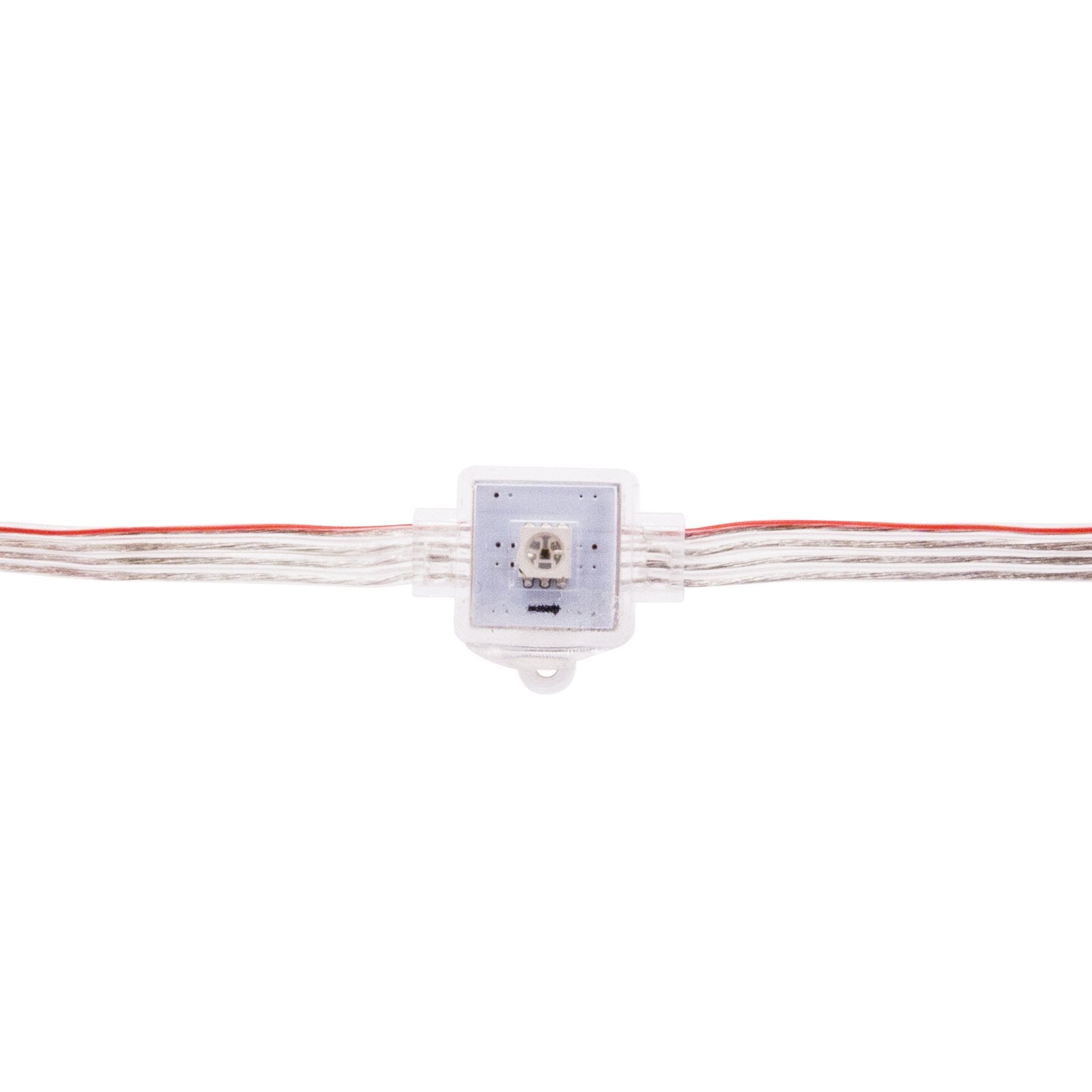

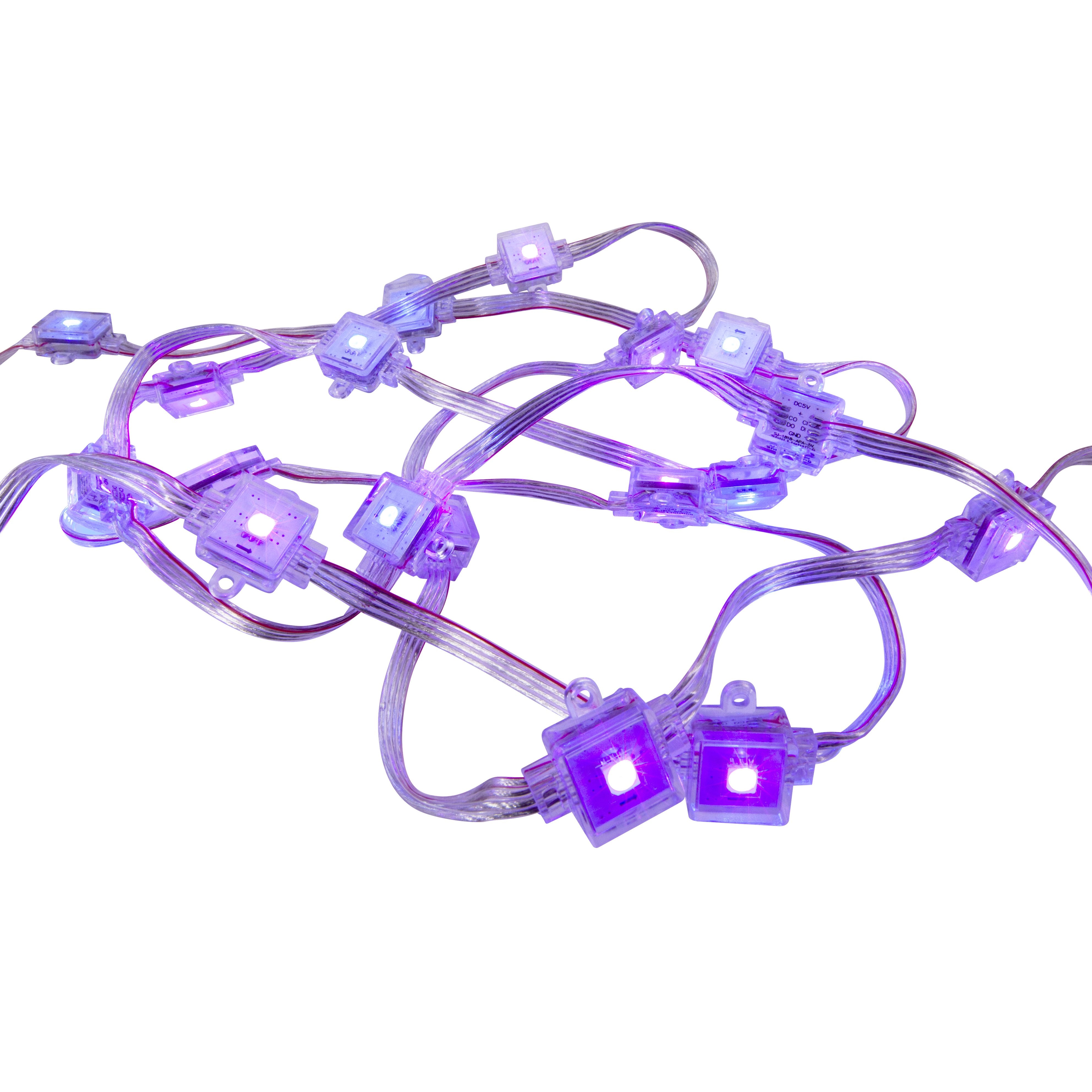

Product Type : RGB Raw Pixel Module

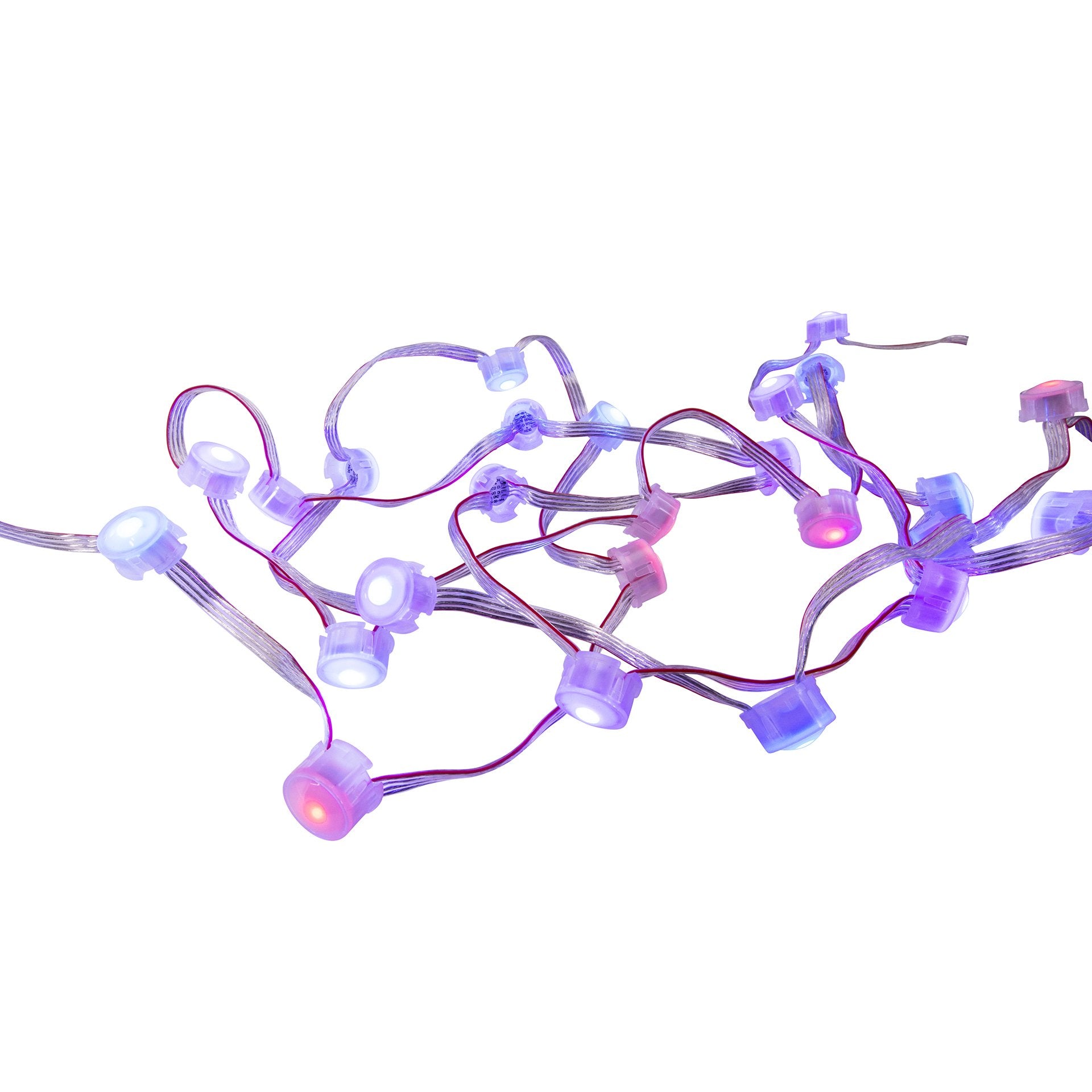

 RGB Diffused Pixel Module
 Cool White, Warm White, Amber Raw Pixel Module
Product Code : O5VMOD5050D4PRGBAPA102 O5VMOD5050D4PDRGBAPA102 O5VMOD5050D4PDWCAAPA102
CRI : N/A N/A N/A
Kelvin : N/A N/A TBD
PCB Color : White White White
Current, Rating : 0.06A / Pixel 0.06A / Pixel 0.06A / Pixel
Voltage : 5 VDC 5 VDC 5 VDC
Wattage : 0.3 W / Pixel 0.3 W / Pixel 0.3 W / Pixel
CC / CV : Constant Voltage Constant Voltage Constant Voltage
IP Rating : IP66 IP66 IP66
Lumens @ Full : N/A N/A N/A
Lumen / Watt : N/A N/A N/A
Lifetime* : 30,000 hours 30,000 hours 30,000 hours
Pixel Pitch : 3.15" / 8CM 3.15" / 8CM 3.15" / 8CM
LED Quantity : 1 LED 1 LED 1 LED
Number of Contacts : 4 4 4
LED Type : 5050 5050 5050
Copper Quantity : 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 C 70 C 70 C
Temperature, Operating, Minimum : -40 C -40 C -40 C
Agency Ratings : CE, RoHS CE, RoHS CE, RoHS
Dimensions : 18MM Diameter 20mm Diameter 18MM Diameter
 Maximum Recommended Length : 300 Pixel Dots 300 Pixel Dots 300 Pixel Dots
Viewing Angle : 120 degree 120 degree 120 degree
Adhesion : Mechanical Fastener Required Mechanical Fastener Required Mechanical Fastener Required

DOWNLOADS

  1. Specification Sheet

  2.  RoHS Test Report

*nominal lifetime - dependent on installation location
