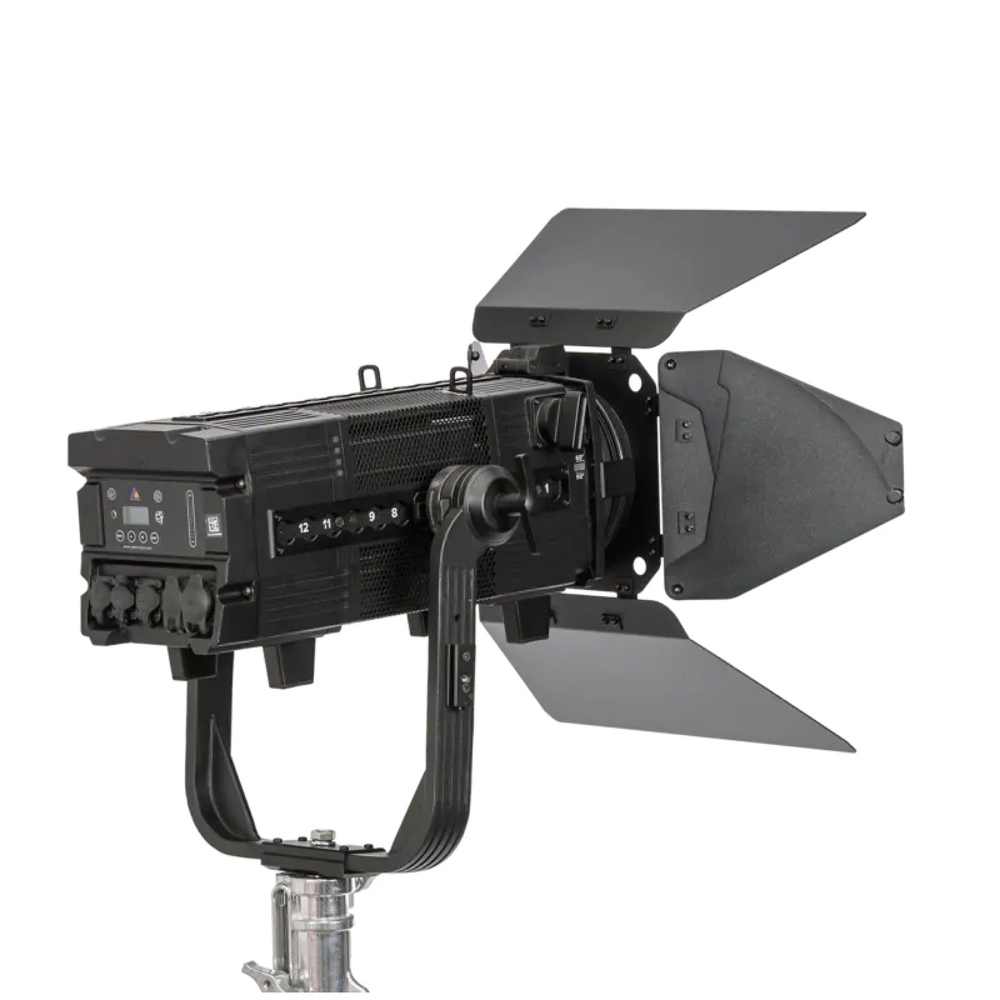

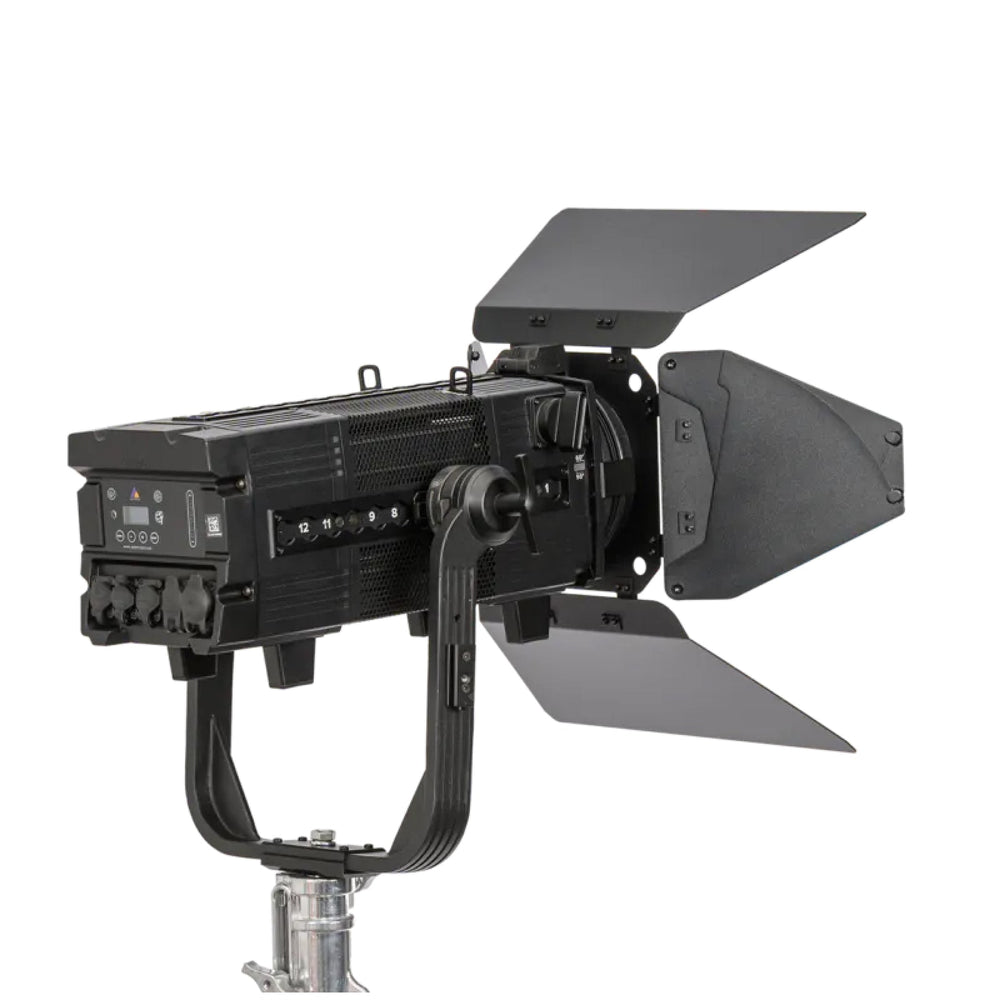

Leo Fresnel Kit

Astera’s LeoFresnel is as an exceptional solution for film, studio, and event lighting. LeoFresnel boasts an impressive output comparable to a traditional 1000W Tungsten Fresnel. With a beam angle of 15° to 60° without color fringing, wireless and wired DMX control, these lights offer impressive performance while consuming only 250 W. Easy to mount and adjust with removable handles and YokeBases, they enhance creativity and productivity on any set.

Leo Fresnel ships with

• Fresnel Lens
• Barndoor
• Yoke
• YokeBase
• Case for Leo Fresnel
• PowerCON True1 Cable

2 hours on MAX Runtime

Unlike traditional Fresnels, this light has a built-in battery that lasts 2 hours displaying white colors on MAX Brightness. When a longer operation is needed, you can set the Seamless Runtime setting up to 20 hours. For longer installations, LeoFresnel can be connected to AC power via Powercon in+out sockets.

External Battery Option
With RuntimeExtender

For a longer operational time, one or two RuntimeExtender’s with V-Mount or Gold Mount battery can be connected. With one 14.4V battery, the light can be operated on reduced power. A single 26V battery or two 14.4V batteries allow full power output.

Battery Priority
When external batteries are connected, you can select if the light uses the internal or external battery first. This can be set directly on the lights display or via the AsteraApp.

Zoomable Fresnel
This next generation Fresnel lens works in conjunction with a light pipe that is built into the fixture. It creates an even beam with steep fall-off and no chromatic aberration or color fringing. The manual zoom ranges from 15° – 60° and allows it to be opearated as spotlight, washlight and anything in between.

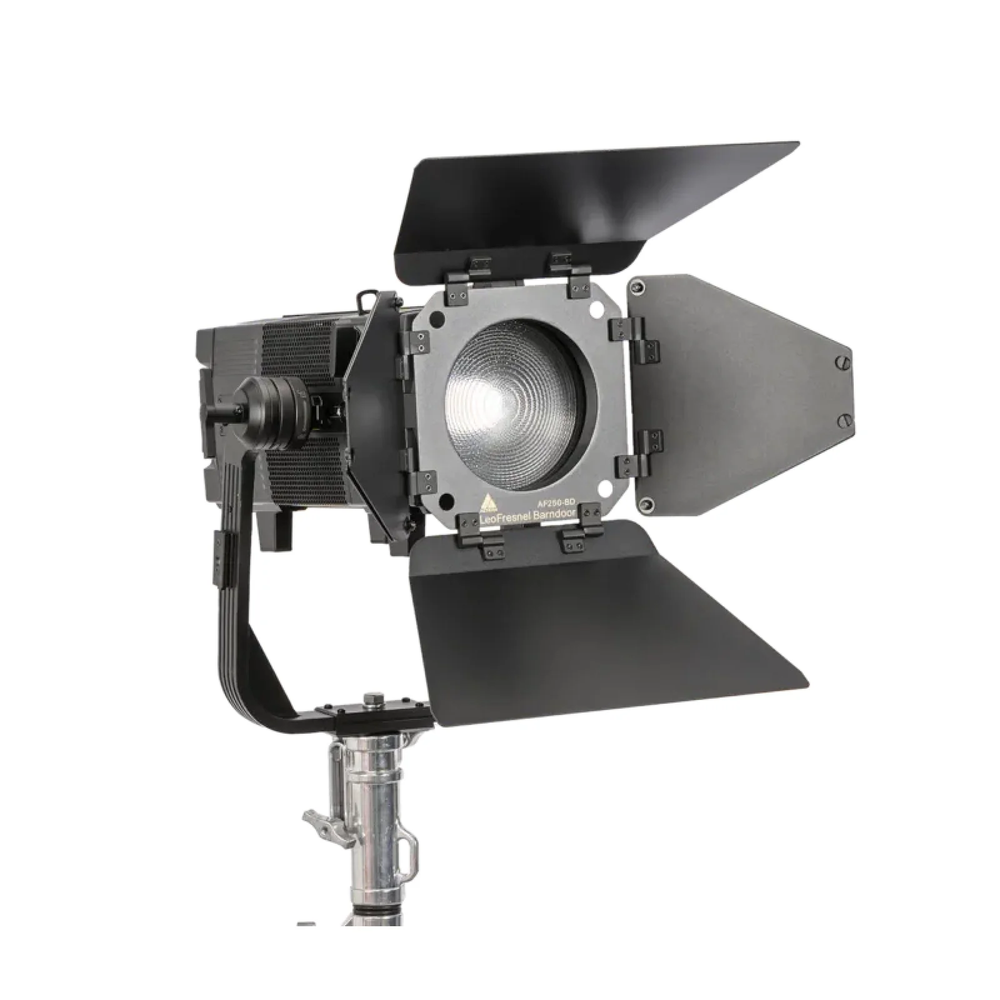

Barndoor
Included with each light is a eight-leave Barndoor. Its specific design leads to ultra-clean cuts; the edges stay razor sharp when shaping your beam.

Open Face
For additional versatility, the Fresnel lens can be slid out after opening its lock. This gives you a wider beam with even crisper shadows.

Projection Lens

A custom-built projection lens with 16°-36° zoom, manual focus and 4 shutters. Turn your LeoFresnel into a profile that also allows you to insert B size Gobos.

Rabbit-Rounder Adapter
With each LeoFresnel we ship a Rabbit Rounder Adapter which means that universal DOP Choice products for Rabbit-Rounder such as Octa 3, Lantern M and Snapbag M can be attached to the light.
