NDCV Fanless & Metal Housed Power Supplies

Name: NDCV Fanless & Metal Housed Power Supplies
Brand: MossLED
SKU: NDCV-24096-DDW
Price: 86.63 CAD
Availability: InStock

SKU NDCV-24096-DDW

by MossLED

$86.63

Voltage

24VDC

12VDC

Wattage

96 Watt

120 Watt

200 Watt

300 Watt

384 Watt (4 X 96 Watt)

Availability: 114 in stock, ready to be shipped

Quantity

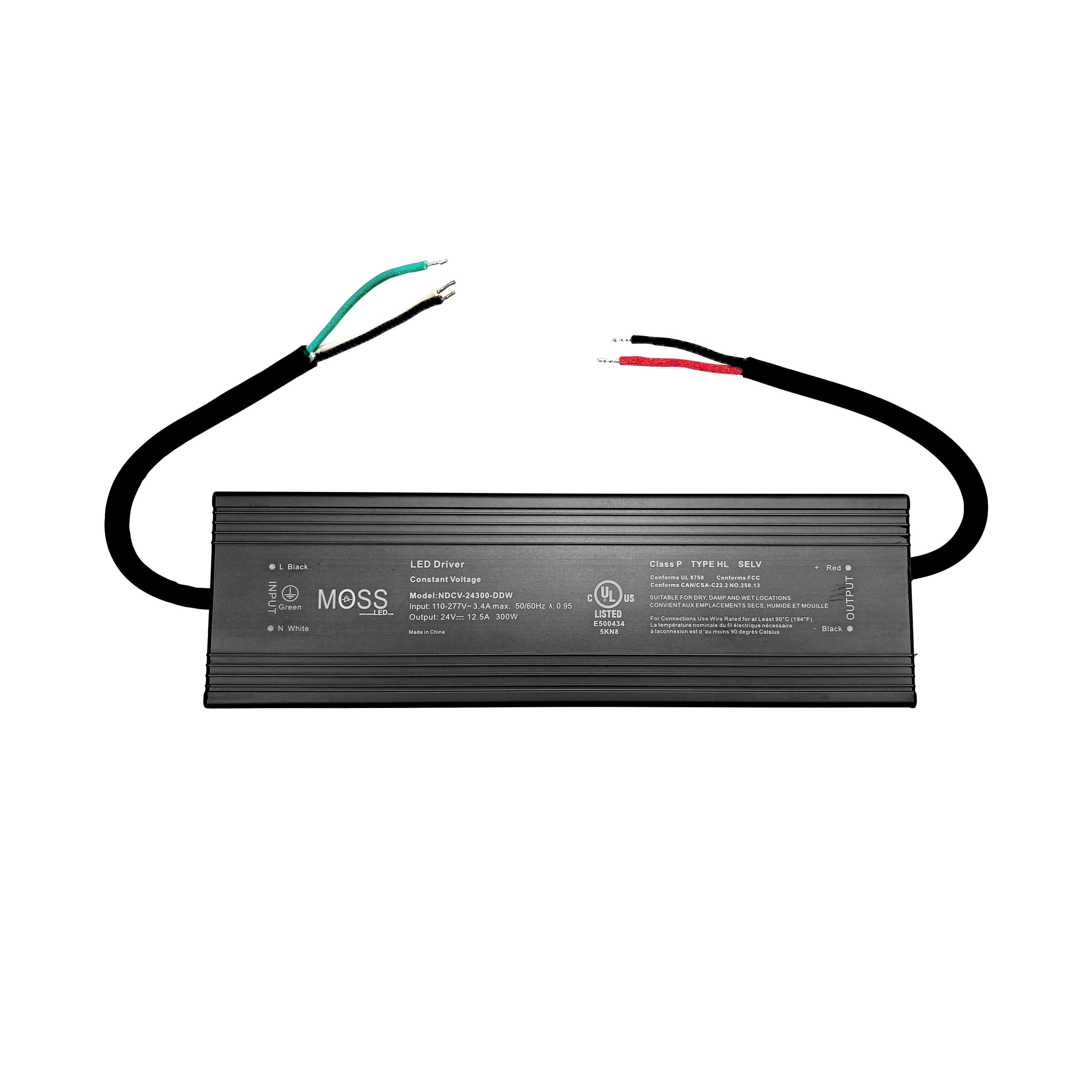

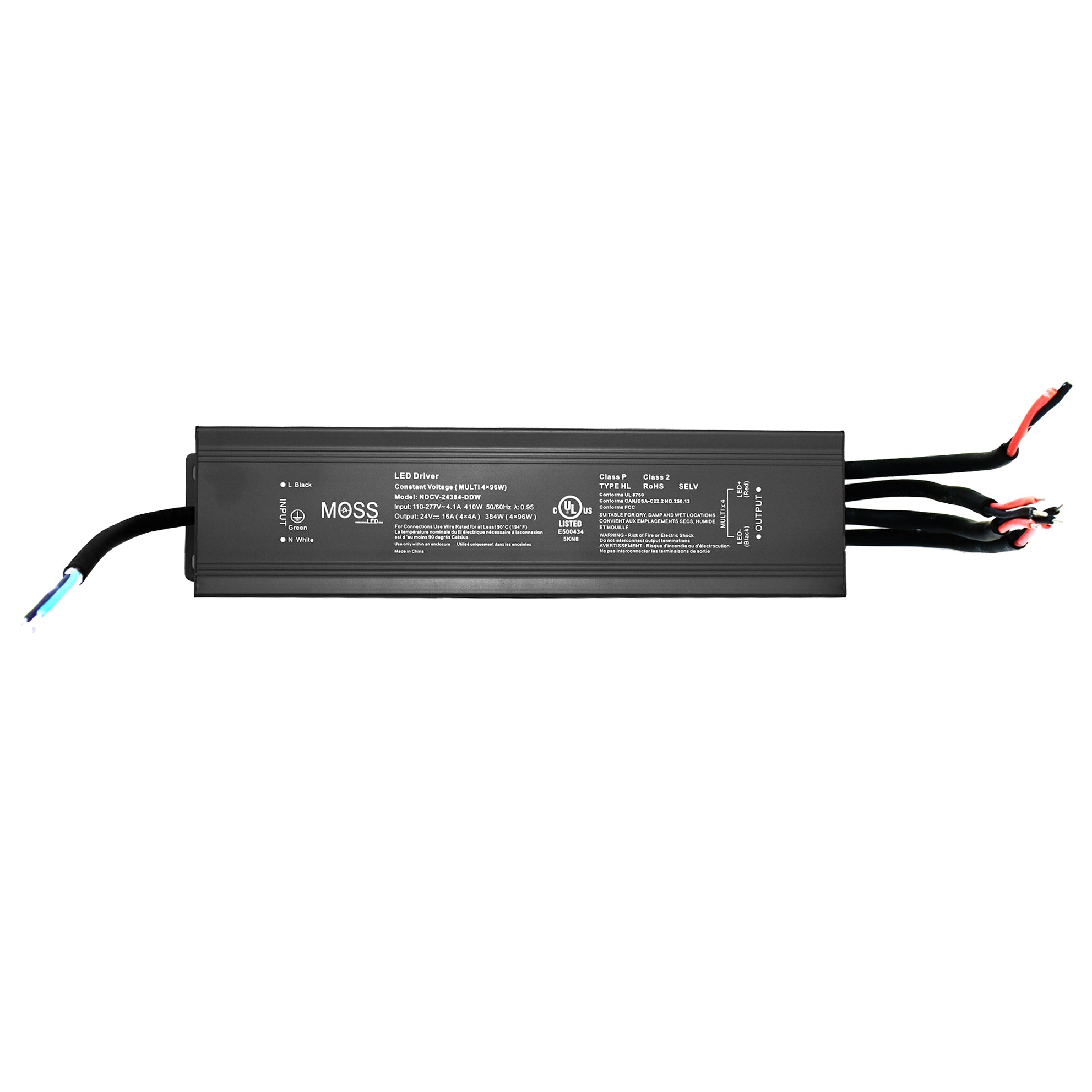

Our range of NDCV Non-Dimmable Constant Voltage bring a new level of reliability to the LED lighting industry. Fanless design with robust metal housed fully listed cULus LED drivers are perfect for powering our range of standalone LED controllers or for directly powering constant voltage LED strips when control is not required. Reliable and robust LED power supply designed for use with all constant voltage LED products or secondary LED controllers. Perfect for on-camera or commercial-grade constant-on use with our FlexLED Tape and any constant voltage LED product. Available in 24VDC and 12VDC. Class P, Tyle HL and SELV with safety features including short-circuit, overload, over-voltage, over-current, and over-temperature protection. Rated for dry, damp, and wet locations. Safe, powerful, and reliable are the cornerstones of our NDCV line of power supplies from MossLED. Amazing 5 year warranty. The NDCV-24384-DDW provides 4 X 96 Watt Class 2 outputs for a total of 384 watts in one compact package.

Important note for NDCV-24384-DDW model only: This driver cannot be used with any of our DMX controllers. It can be used directly wired to the LEDs or with the rotary dimmers below:

Four Channel RGBW Rotary Dimmer
Three Channel RGB Rotary Dimmer
MiniCine V2
Single Channel Rotary

Ships in 1 - 2 Business Days

SPECIFICATIONS - 24VDC PRODUCT

Model	:	NDCV-24096-DDW	NDCV-24120-DDW	NDCV-24200-DDW	NDCV-24300-DDW	NDCV-24384-DDW
Current (A)	:	4 A	5 A	8.34 A	12.5 A	4 X 4A = 16A TOTAL
Output Power (W)	:	96 W	120 W	200 W	300 W	4 X 96W = 384W TOTAL
Agency Approvals	:	FCC UL cUL Class 2 Class P SELV UL1310 and UL8750 CSA-C22.2.NO.250.13	FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13	FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13	FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13	FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13
Size (millimeters)	:	230 X 70 X 43	230 X 70 X 43	256 X 78 X 47 mm	256 X 78 X 47 mm	322 X 78 X 47 mm
Ripple & Noise (mV p-p)	:	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p
Load Regulation ()	:	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Line Regulation ()	:	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	:	83%@120VAC 88%@ 230VAC 87%@277VAC	83%@120VAC 88%@ 230VAC 87%@277VAC	83%@120VAC 88%@ 230VAC 87%@277VAC	83%@120VAC 88%@ 230VAC 87%@277VAC	87%@120VAC 90%@277VAC
Frequency Range	:	47 ~ 63 Hz	47 ~ 63 Hz	47 ~ 63 Hz	47 ~ 63 Hz	47 ~ 63 Hz
Universal AC input	:	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC
Low leakage current	:	<0.5mA	<0.5mA	<0.5mA	<0.5mA	<0.5mA
Protections:	:	short circuit, overload, over temp, auto recovery	short circuit, overload, over temp, auto recovery	short circuit, overload, over temp, auto recovery	short circuit, overload, over temp, auto recovery	short circuit, overload, over temp, auto recovery
AC Input	:	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned
Housing	:	Fully enclosed aluminum housing	Fully enclosed aluminum housing	Fully enclosed aluminum housing	Fully enclosed aluminum housing	Fully enclosed aluminum housing
Ingress Protection Rating	:	IP65, Dry, Damp, and Wet Locations	IP65, Dry, Damp, and Wet Locations	IP65, Dry, Damp, and Wet Locations	IP65, Dry, Damp, and Wet Locations	IP65, Dry, Damp, and Wet Locations
Class	:	TYPE HL - Class 2 Class P	TYPE HL - Class P	TYPE HL - Class P	TYPE HL - Class P	TYPE HL - Class P
Indicator	:	None	None	None	None	None
Voltage Adjustment Range	:	Fixed	Fixed	Fixed	Fixed	Fixed
Output Connector Type	:	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned
Current Adjustment Range	:	N/A	N/A	N/A	N/A	N/A
Output Polarity	:	N/A	N/A	N/A	N/A	N/A
Input Connector	:	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)
Product Type	:	AC to DC Power Supply	AC to DC Power Supply	AC to DC Power Supply	AC to DC Power Supply	AC to DC Power Supply
MFR Product Family	:	NDCV	NDCV	NDCV	NDCV	NDCV
Operating Temperature (Ambient)	:	-40°C to 80°C	-40°C to 90°C	-40°C to 90°C	-40°C to 90°C	-40°C to 60°C
Power Supply Color	:	Dark Grey	Dark Grey	Dark Grey	Dark Grey	Dark Grey
Wiring Color Codes Output	:	Refer to Label on PSU	Refer to Label on PSU	Refer to Label on PSU	Refer to Label on PSU	Refer to Label on PSU
