Secifications
Specs |
DC 2-Way/3-Way/4-Way/5-Way |

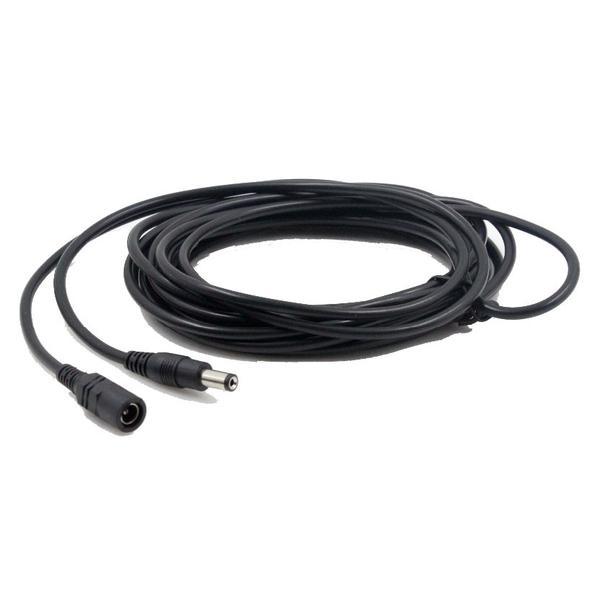

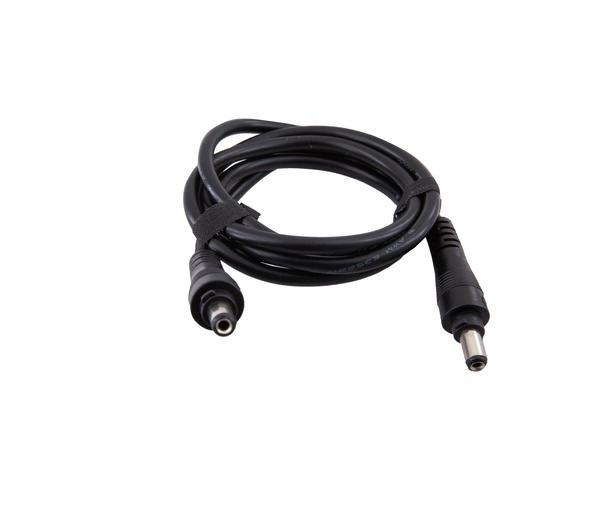

DC Cable Extension 1M/2M/3M |

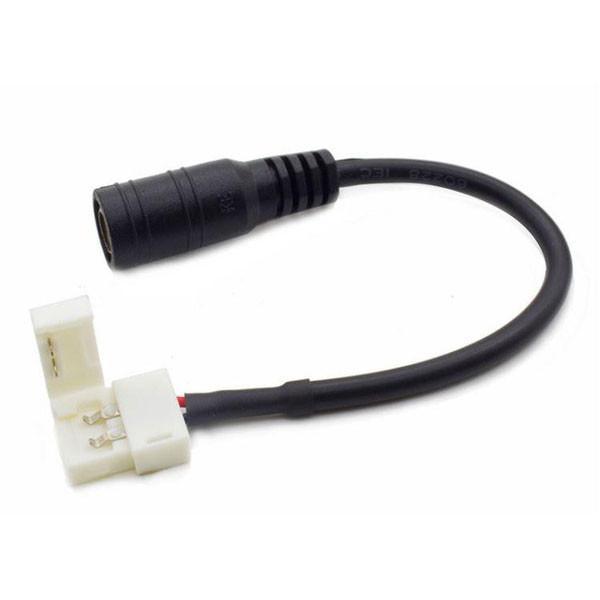

DC Male Connector Tail to Single Collar Quick Clip DC Barrel Male Connector Tail |
DC Barrel Female to Female Locking |

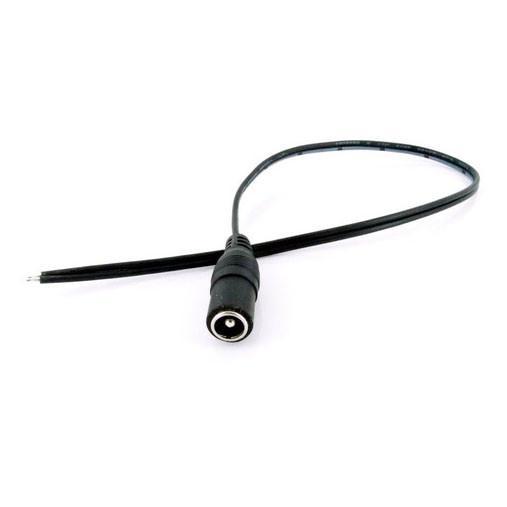

DC Barrel Female Connector Tail 18 AWG |

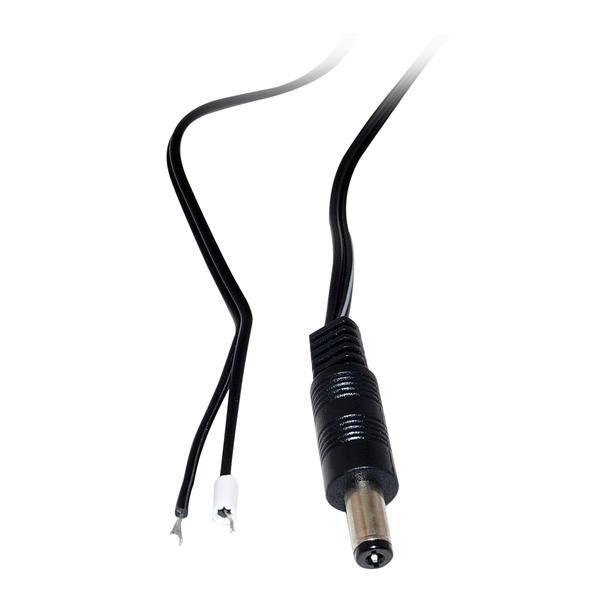

DC Male Connector Tail 18AWG |
SKU |
DCMYDCF(X)WY X= # of splits |
DCM0(X)00DCF X=length |
DCBRLMLQKCLIP |
DCF0100DCF |
DCF0030BW_18AWG |
DCM0030BW |
Agency Approvals |
UL 1185 |
UL 1185 |
UL 1185 |
UL 1185 |
UL 1185 |
UL 1185 |
Amperage |
8A |
8 A |
8 A |
8 A |
8 A |
8 A |
Color |
BLACK |
Black |
Black |
Black |
Black |
Black |
Current, Rating |
8 A -> 2 X 4A |
8A |
8A |
8A |
8A |
8A |
Cord (NO/MM) |
41/0.160 -> 17/0.160 |
41/0.160 -> 17/0.160 |
41/0.160 -> 17/0.160 |
41/0.160 -> 17/0.160 |
41/0.160 -> 17/0.160 |
41/0.160 -> 17/0.160 |
Insulation Material |
Polyvinylchloride (PVC) |
Polyvinylchloride (PVC) |
Polyvinylchloride (PVC) |
Polyvinylchloride (PVC) |
Polyvinylchloride (PVC) |
Polyvinylchloride (PVC) |
Flammability |
VW-1 |
VW-1 |
VW-1 |
VW-1 |
VW-1 |
VW-1 |
IP Rating (Indoor Use Only) |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
Cable Type |
Tinned Copper Strands |
Tinned Copper Strands |
Tinned Copper Strands |
Tinned Copper Strands |
Tinned Copper Strands |
Tinned Copper Strands |
Material, Contact |
Copper Alloy, Tin Plated |
Copper Alloy, Tin Plated |
Copper Alloy, Tin Plated |
Copper Alloy, Tin Plated |
Copper Alloy, Tin Plated |
Copper Alloy, Tin Plated |
DC Plug Rating |
5A |
5A |
5A |
5A |
5A |
5A |
Material, Housing |
Nylon |
Nylon |
Nylon |
Nylon |
Nylon |
Nylon |
NEMA Type |
1-15P |
1-15P |
1-15P |
1-15P |
1-15P |
1-15P |
# of Contacts |
2 |
2 |
2 |
2 |
2 |
2 |
Inside Contact Diameter |
2.1mm |
2.1mm |
2.1mm |
2.1mm |
2.1mm |
2.1mm |
OutsideContact Diameter |
5.5mm |
5.5mm |
5.5mm |
5.5mm |
5.5mm |
5.5mm |
Temperature, Operating Maximum |
+70℃ |
+70℃ |
+70℃ |
+70℃ |
+70℃ |
+70℃ |
Temperature, Operating Minimum |
-40℃ |
-40℃ |
-40℃ |
-40℃ |
-40℃ |
-40℃ |
Outer Diameter |
3.5MM |
3.5MM |
3.5MM |
3.5MM |
3.5MM |
3.5MM |
Type |
1 X Male DC Plug -> 2 X Female DC Plug *non locking* |
Female DC Plug & Male DC Plug |
Male DC Plug |
Male DC Plug |
Female DC Plug |
Male DC Plug |
Voltage, Rating |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
24 V DC |
Weight |
0.3 lbs. |
0.1 lbs. |
0.1 lbs. |
0.1 lbs. |
0.1 lbs. |
0.1 lbs. |
Wire, AWG |
#18/22 |
#18 |
#18 |
#18 |
#18 |
#18 |
