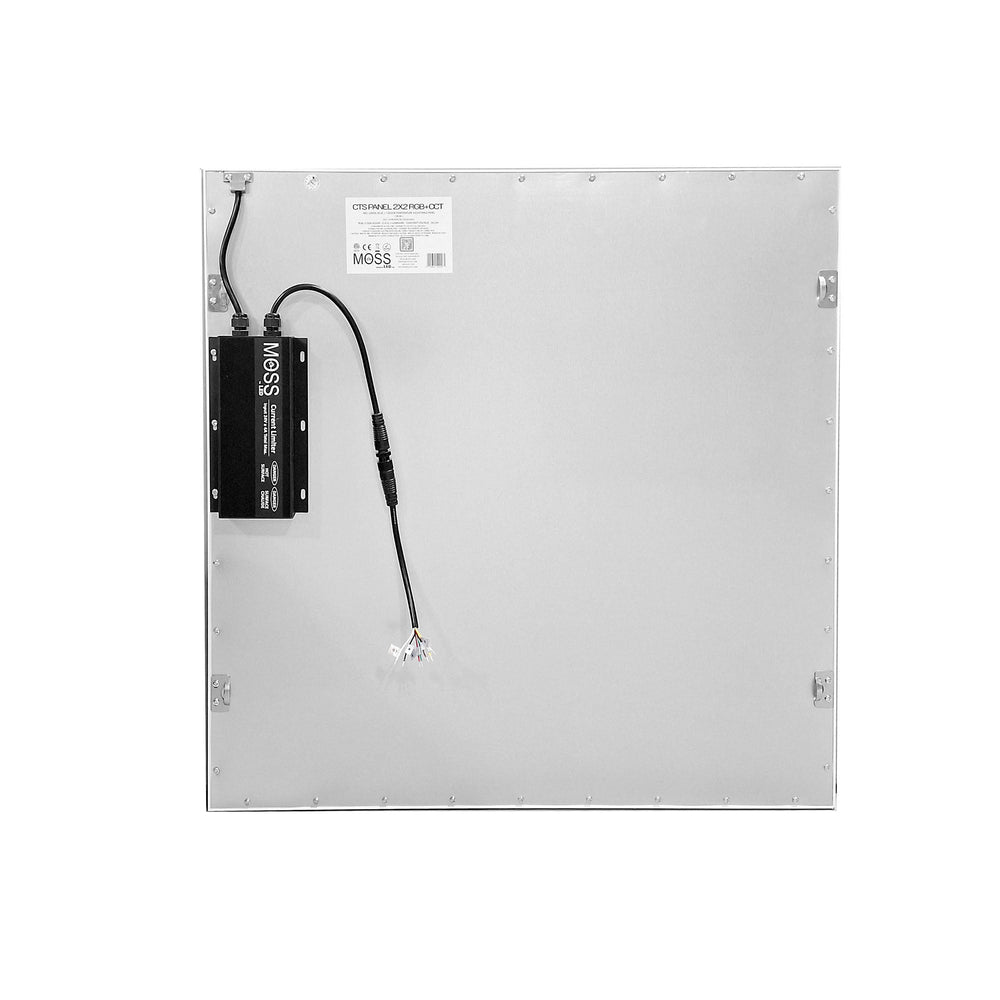

The Ceiling Tile Panel is a lightweight, high-output LED panel designed to seamlessly integrate into existing drop ceilings. Newly updated, it features higher brightness and new slim panel sizes, offering colour-changing plus CCT-adjustable options for residential, commercial, and office environments. Available in multiple sizes, these ultra-thin panels deliver consistent, high-CRI illumination with a modern, low-profile design.
Key Features:
-
Multiple Size Options – Available in 6"x4', 1'x4', 2'x4', and 2'x2' formats.
-
Slim, Lightweight Design – 2’x4’x0.4” (603mm x 1213mm x 11.5mm) for easy drop ceiling installation.
-
Standard North American sizes
-
Colour-Changing & CCT-Adjustable – Delivers dynamic lighting customization.
-
High Output Performance – Enhanced brightness and efficiency.
-
Stock & Custom Options – RGB+WW panels are stocked, other options available within 2-3 month lead time.
The Ceiling Tile Panel is an ideal lighting solution for modern workspaces, retail, and architectural applications.
Need a custom solution? Contact us today!
SPECIFICATIONS
| Product Type | : | 2'x4' 3000k | 2'x4' 6000k | 2'x4' Bi-Color 2600 - 6000k |
6"x4'Bi-Color 2600k - 6000k | 1'x4' Bi-Color 2600k - 6000k | 2'x4' RGBW (3000k/4100k/6500k) |
| Product Code | : | 24VWW306031213 | 24VCW60 6031213 | 24VWW26CW606031213 | 24VWW26CW56601521213 | 24VWW26CW603011213 | 24VRGBWXX 6031213 |
| CRI | : | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥90 |
| Kelvin | : | 3000k | 6000k | 2600-6000k | 2600-6000k | 2600-6000k | 3000k OR 4100k OR 5600K |
| Mounting Type | : | Suspension Mount Bracket OR Recessed | Suspension Mount Bracket OR Recessed | Suspension Mount Bracket OR Recessed | Suspension Mount Bracket OR Recessed | Suspension Mount Bracket OR Recessed | Suspension Mount Bracket OR Recessed |
| Current, Rating | : | 3A / panel | 3A / panel | 4A / panel | 2.92A / panel | 3A / panel | 3A / panel |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 72 W / panel | 72W / panel | 57W / channel 94W / panel |
36W / Channel 70W / Panel |
36W / Channel 70W / Panel |
84W / panel |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP50 | IP50 | IP50 | IP50 | IP50 | IP50 |
| Lumens @ Full | : | 6624 | 6891 | 6561 | 4200 | 5070 | 4530 |
| Lumen / Watt | : | 63-68 lm / w | 65-70 lm / w | 65-70 lm / w | 65-70 lm / w | 60-65 lm / w | 65-70 lm / w |
| Lifetime* | : | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours |
| Number of Contacts | : | 2 | 2 | 3 | 3 | 3 | 5 |
| LED Type | : | 2835 | 2835 | 2835 | 2835 | 2835 | RGBW (4 in 1) |
| Copper Quantity | : | 2 Oz. | 2 Oz. | 2 Oz. | 2 Oz. | 2 Oz. | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C | 70 C | 70 C | 50 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C | - 40 C | -40 C | -20 C |
| Agency Ratings | : | UL - Pending, CE, RoHS | UL - Pending, CE, RoHS | UL - Pending, CE, RoHS | UL - Pending, CE, RoHS | UL - Pending, CE, RoHS | UL - Pending, CE, RoHS |
| PCB Width | : | 8MM | 8MM | 8MM | 8MM | 8MM | 8MM |
| Maximum Recommended Length | : | N/A | N/A | N/A | N/A | N/A | N/A |
| Beam Angle | : | 170 degree | 170 degree | 170 degree | 170 degree | 170 degree | 170 degree |
| Weight | : | 13 lbs | 13 lbs | 13 lbs | 3.6 lbs | 3.6 lbs | 14 lbs |
*nominal lifetime - dependent on installation location
Controller, Power supply and Extension Cables sold separately
