NDCV Fanless & Metal Housed Power Supplies

NDCV Fanless & Metal Housed Power Supplies

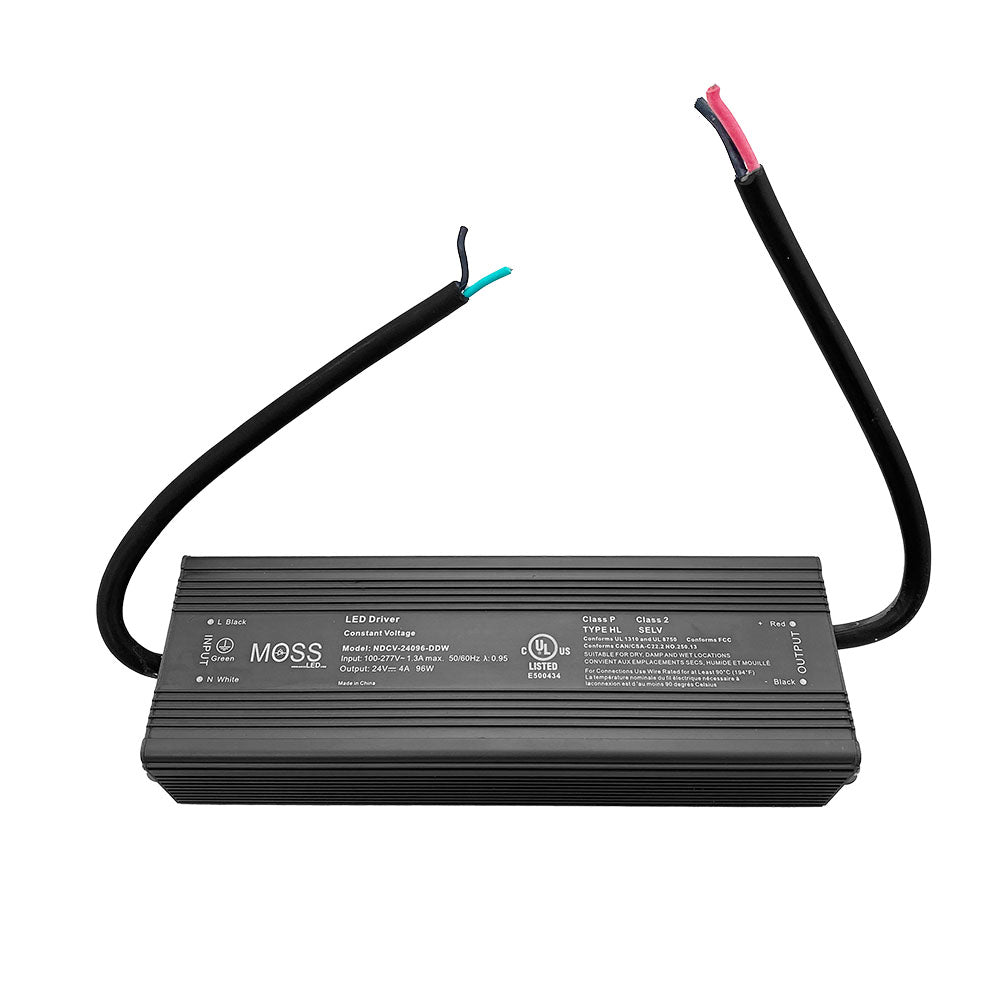

SKU NDCV-24096-DDW
by MossLED
$86.63
Voltage
Wattage
Availability: Translation missing: en.general.icons.icon_check_circle icon 111 in stock, ready to be shipped

The NDCV series delivers unmatched reliability and efficiency for constant voltage LED products and standalone LED controllers. With a fanless, metal-housed design, these fully cULus-listed LED drivers provide stable, flicker-free power for on-camera, commercial, and industrial applications. Rated for dry, damp, and wet locations, the NDCV series ensures safe, long-lasting performance with comprehensive safety protections.

Key Features:

  • Wide Compatibility – Powers constant voltage LED strips and secondary LED controllers.
  • High Safety Standards – Class P, Type HL, and SELV certified with short-circuit, overload, over-voltage, over-current, and over-temperature protection.
  • Fanless Metal Housing – Ensures silent, reliable operation in any environment.
  • Multiple Voltage Options – Available in 24VDC and 12VDC models.
  • Durable & Weather-Resistant – Rated for dry, damp, and wet locations.
  • High-Power Output – NDCV-24384-DDW provides 4 x 96W Class 2 outputs (384W total).
  • 5-Year Warranty – Long-term performance and peace of mind.

Need a custom solution? Contact us today!






Important note for NDCV-24384-DDW model only: This driver cannot be used with any of our DMX controllers. It can be used directly wired to the LEDs or with the rotary dimmers below:

Four Channel RGBW Rotary Dimmer
Three Channel RGB Rotary Dimmer
MiniCine V2
Single Channel Rotary



Ships in 1 - 2 Business Days

SPECIFICATIONS - 24VDC PRODUCT

Model : NDCV-24096-DDW NDCV-24120-DDW NDCV-24200-DDW NDCV-24300-DDW NDCV-24384-DDW
Current (A) : 4 A 5 A 8.34 A 12.5 A 4 X 4A = 16A TOTAL
Output Power (W) : 96 W 120 W 200 W 300 W 4 X 96W = 384W TOTAL
Agency Approvals : FCC UL cUL Class 2 Class P SELV UL1310 and UL8750 CSA-C22.2.NO.250.13 FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13 FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13 FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13 FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13
Size (millimeters) : 230 X 70 X 43 230 X 70 X 43  256 X 78 X 47 mm 256 X 78 X 47 mm 322 X 78 X 47 mm
Ripple & Noise (mV p-p) : 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p
Load Regulation () : ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Line Regulation () : ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency : 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC 87%@120VAC 90%@277VAC
Frequency Range : 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz
Universal AC input : 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC
Low leakage current : <0.5mA <0.5mA <0.5mA <0.5mA <0.5mA
Protections: : short circuit, overload, over temp, auto recovery short circuit, overload, over temp, auto recovery short circuit, overload, over temp, auto recovery short circuit, overload, over temp, auto recovery short circuit, overload, over temp, auto recovery
AC Input : Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned
Housing : Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing
Ingress Protection Rating : IP65, Dry, Damp, and Wet Locations IP65, Dry, Damp, and Wet Locations IP65, Dry, Damp, and Wet Locations IP65, Dry, Damp, and Wet Locations IP65, Dry, Damp, and Wet Locations
Class : TYPE HL - Class 2 Class P TYPE HL - Class P TYPE HL - Class P TYPE HL - Class P TYPE HL - Class P
Indicator : None None None None None
Voltage Adjustment Range : Fixed Fixed Fixed Fixed Fixed
Output Connector Type : Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned
Current Adjustment Range : N/A N/A N/A N/A N/A
Output Polarity : N/A N/A N/A N/A N/A
Input Connector : Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V)
Product Type : AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply
MFR Product Family : NDCV NDCV NDCV NDCV NDCV
Operating Temperature (Ambient) : -40°C to 80°C -40°C to 90°C -40°C to 90°C -40°C to 90°C -40°C to 60°C
Power Supply Color : Dark Grey Dark Grey Dark Grey Dark Grey Dark Grey
Wiring Color Codes Output : Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU

DOWNLOADS

  1. Specification Sheet - 96 Watt LED Driver

  2.  Specification Sheet - 120 Watt LED Driver
  3. Specification Sheet - 200 Watt LED Driver
  4.  Specification Sheet - 300 Watt LED Driver
  5.  Specification Sheet - 384 Watt LED Driver
