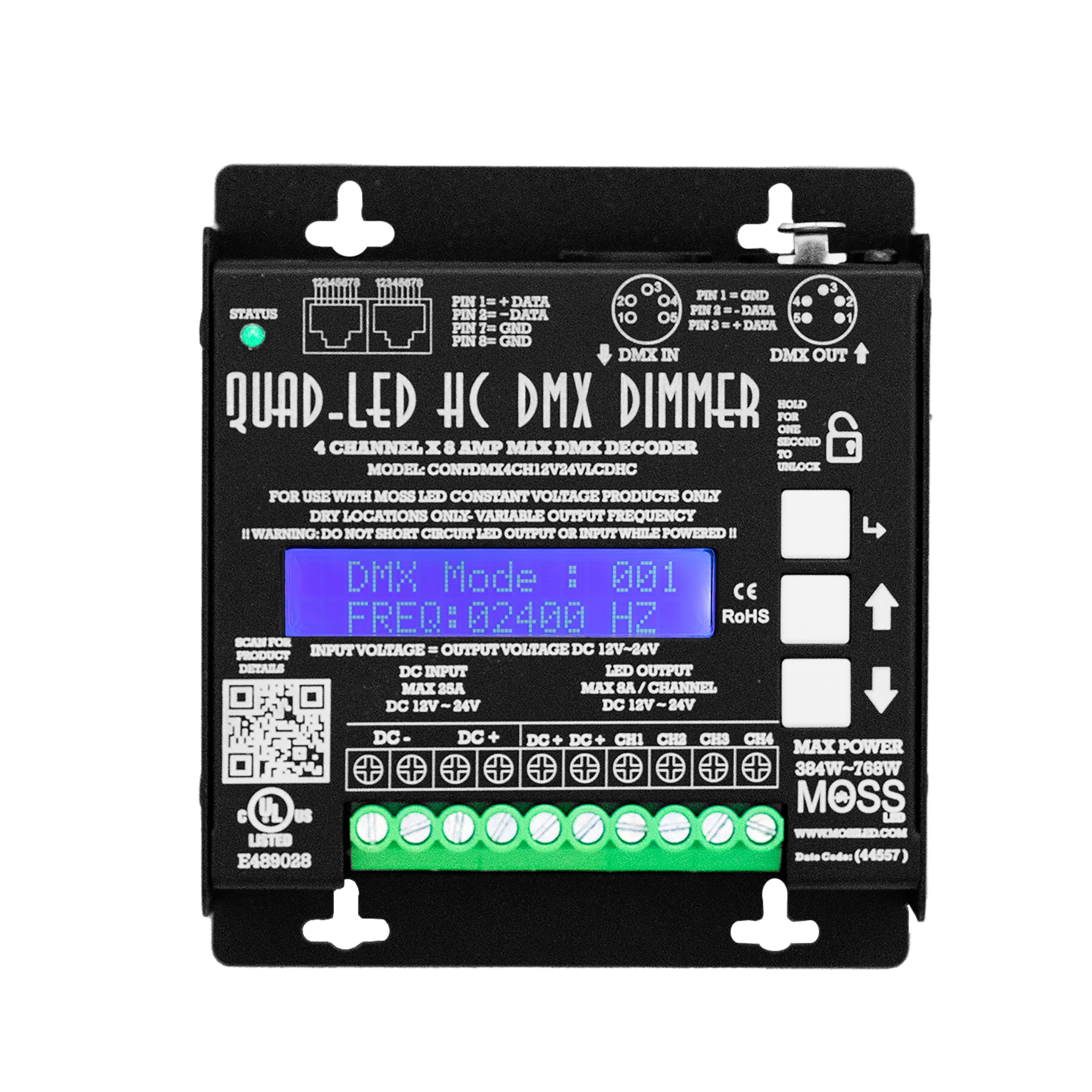

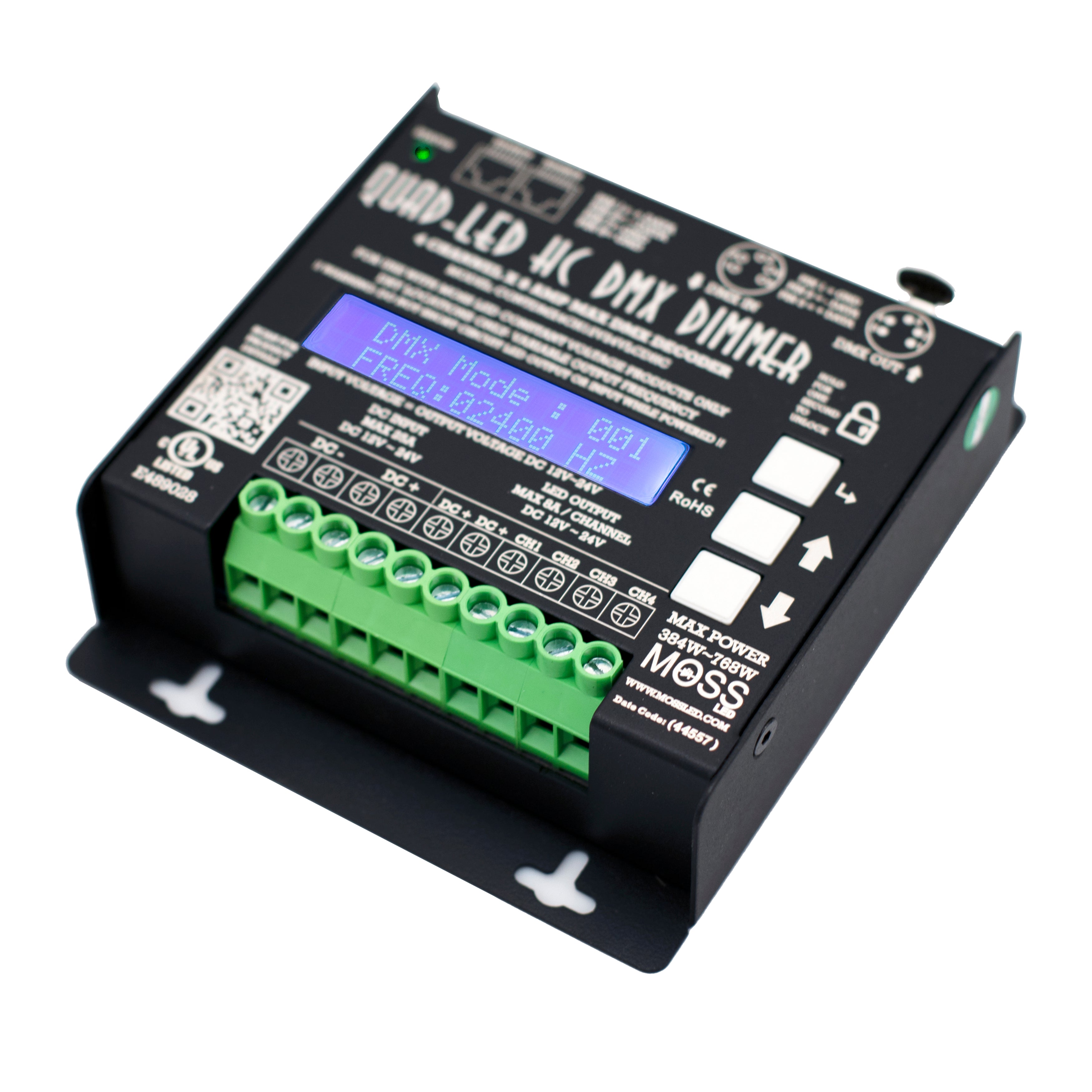

This dimmer can be used with all of our 4 channel, 3 channel, 2 channel, and 1 channel FlexLED Tape products and Modules
- This unit converts DMX-512/1990 standard digital signal into four dimmable channels.
- Uses RJ45 Ethernet or 5-pin XLR connectors to control LEDs via any lighting console or through computer software.
- Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape.
- LCD Interface provides easy functionality for DMX addressing as well as full manual mode & test control options.
Note: After changing a dimmer setting you must make sure the unit does not lose power for the next few seconds until it reverts back to Lock Mode.
Technical Specifications
|
Output Current (A)
|
:
|
4 CH @ 10A/CH = Max 40A (4 CH @ 8A/CH = Max 25A for UL Standards)
|
|
Output Power (W)
|
:
|
480W @ 12V / 960W @ 24V (384W @ 12V / 678W @ 24V for UL Standards)
|
|
Supply Voltage
|
:
|
DC12V - DC24V
|
|
Size (inches)
|
:
|
L 4.8” x W 4.2” x H 1.2”
|
|
Working Temperature
|
:
|
-0°C to + 70 °C
|
|
Bit Rate
|
:
|
8 Bit
|
|
Weight
|
:
|
400g
|
|
IP Rating
|
:
|
IP40
|
|
PWM Frequency
|
:
|
2400Hz / 4800Hz / 9600Hz
|
|
IP Rating
|
:
|
IP40
|
DOWNLOADS
UL Certificate of Compliance- Specification Sheet - Version 6
