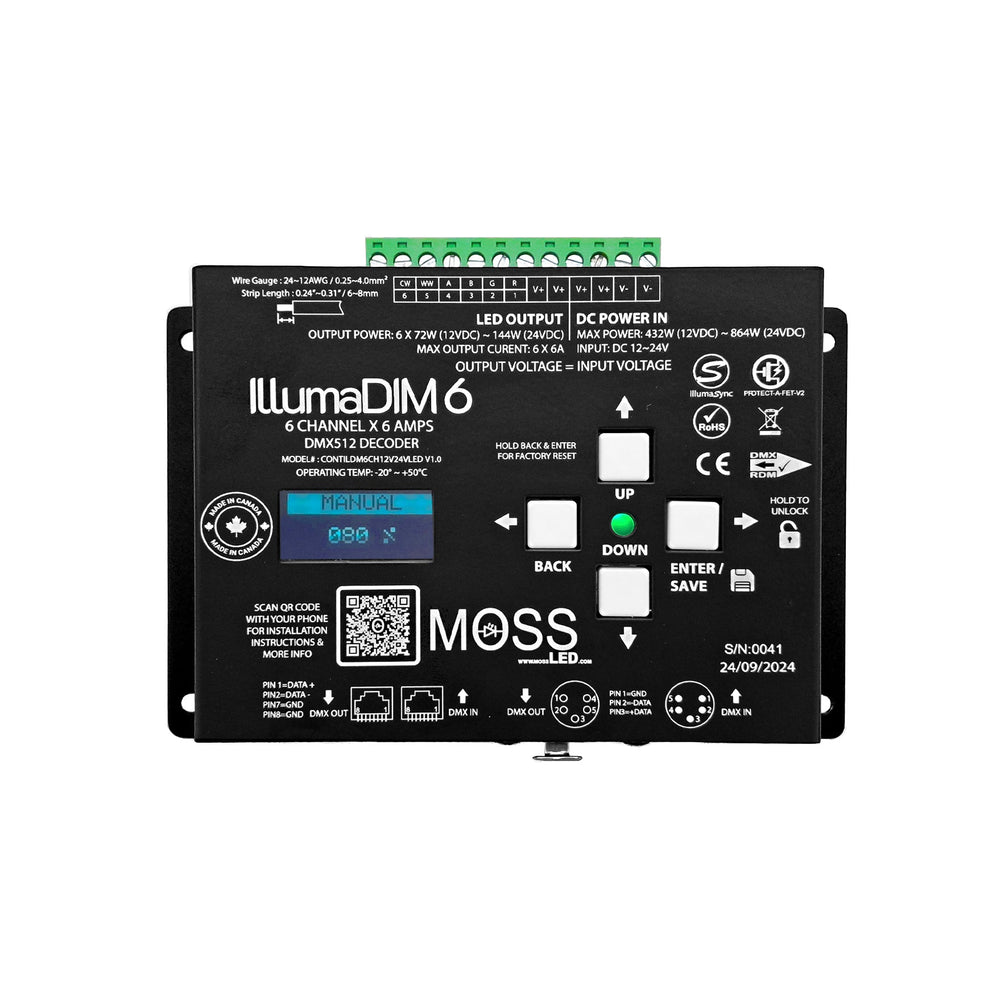

The IllumaDIM6 DMX Dimmer is the first LED dimmer of our IllumaDIM series. A new product lineup of highly reliable, rugged & smart LED Dimmers with more capabilities and more features than any other LED dimmer on the market.
Designed for use on-camera, for theatrical uses, or anywhere that high-precision dimming is required.
Two new game-changing features including Protect-A-Fet 2.0 and IllumaSync. Protect-A-Fet 2.0 is more rugged than ever with smart technology that senses which channel has the short issue to help troubleshooting. IllumaSync allows a user the ability to batch-update settings to multiple controllers at the same time. This saves the user from having to manually change settings one at a time, at each controller.
Adjustable output PWM frequency settings which allow for flicker-free dimming for use on camera in a variety of camera settings.
The on-board GUI menu allows easy access for DMX mode, Manual mode, Test mode and all other features. All these features and more are also accessible via RDM.
A 3 second push-to-unlock function which prevents accidental adjustments.
The IllumaDIM DMX Dimmer is BY FAR the most advanced standalone DMX Decoder controller unit on the market, EVER!
• 6CH with 6Amp per Channel
• Optically Isolated DMX512
• RDM with Advanced Features
• 1Khz to 35Khz PWM frequency
• Gamma correction
• 8bit or 16bit DMX operation
• 1 to 6, 2 to 6, 3 to 6, 6 to 6 DMX address personality
• Output voltage spike protector for longer LED life
• Line voltage sensor
• Internal DMX termination Selectable from GUI or RDM
• Dithering available for DMX
• Decimal and % input for Manual values
• Save to Manual from DMX
• Save to preset from DMX or Manual values
• Master brightness control for Manual values
• Three preset memories for channel values
• OLED Graphical display with brightness control and timeout
• Keyboard lock function
• RGB status led
• Overcurrent or Overload detection on powering up
• Short circuit protection with channel detection
• Built-in test modes selectable from GUI or RDM
• Soft and Hard reset from RDM
• Factory reset
• Software update over DMX
• Group settings update over DMX using IllumaSync app
This controller can be used with all of our FlexLED Tape products and Modules
- This unit converts DMX-512/1990 standard digital signal into six dimmable channels.
- Uses RJ45 Ethernet or 5-pin XLR connectors to control LEDs via any lighting console or through computer software.
- Can create over 16 million colors when used with our Colorful FlexLED Tapes (RGBA, RGBVW RGBW, RGB, Bi-Color, White)
- Interface provides easy functionality for DMX addressing as well as full manual mode, test control options & RDM functionality.
Constant Voltage* Technical Specifications
|
Output Current (A)
|
:
|
6 CH @ 6A/CH = Max 36A
|
|
Output Power (W)
|
:
|
432W @ 12V / 864W @ 24V
|
|
Supply Voltage
|
:
|
12V ~ 24V DC
|
|
Size (mm)
|
:
|
L 110 mm 4.33”
W 150 mm 5.91”
H 40 mm 1.57”
|
|
Working Temperature
|
:
|
-20°C to + 50°C
|
|
Weight
|
:
|
300g
|
|
PWM Frequency
|
:
|
1000Hz to 35kHz
|
|
IP Rating
|
:
|
IP40 - Indoor Use Only
|
|
Flicker Free
|
:
|
Yes
|
|
Bit Rate
|
:
|
8 Bit & 16 Bit
|
Refer to Installation Guide Prior to Installing.
