This controller can be used with all of our Constant Voltage FlexLED Tape products and Modules
- This unit is beefy! 3A X 32 Channel = MAX 96A!

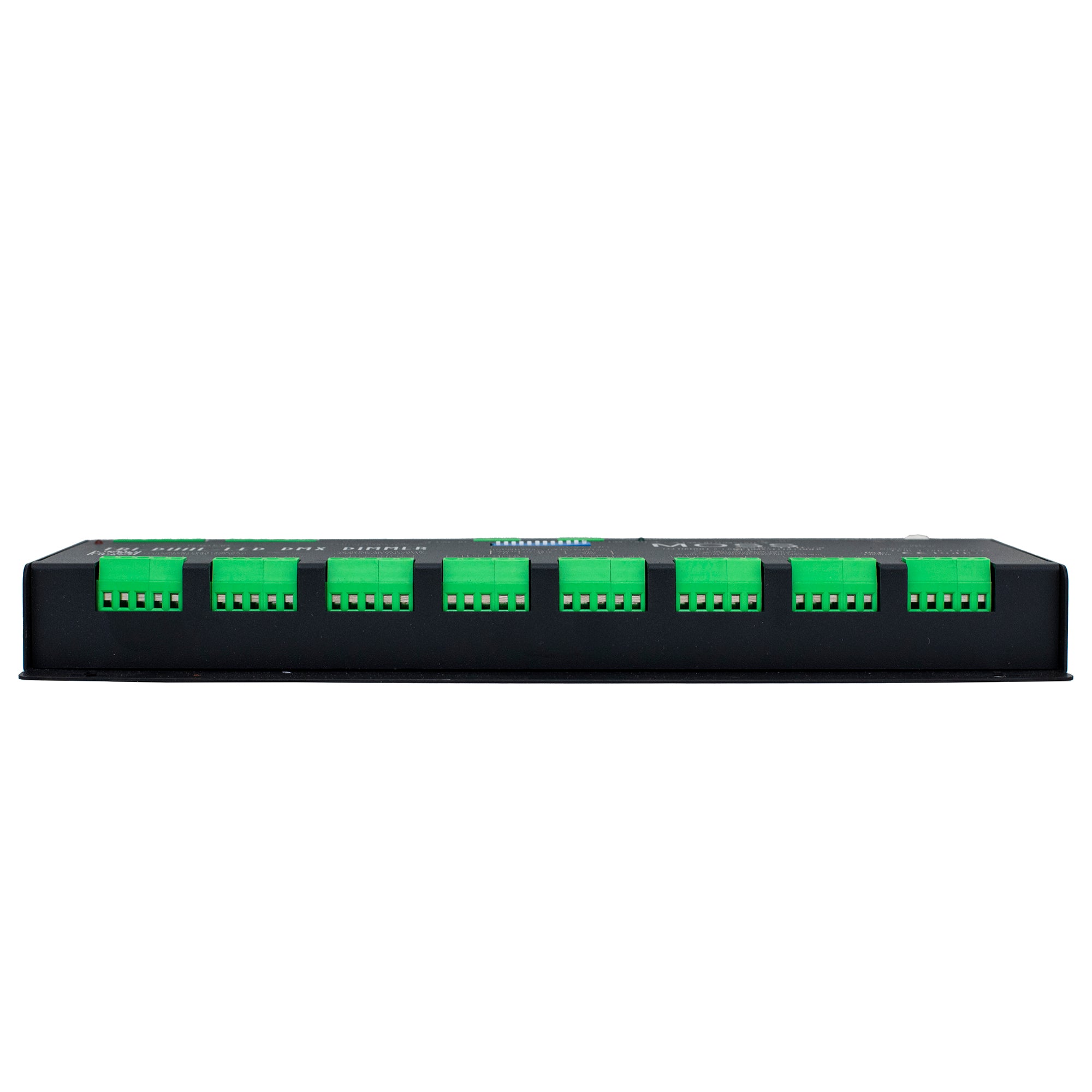

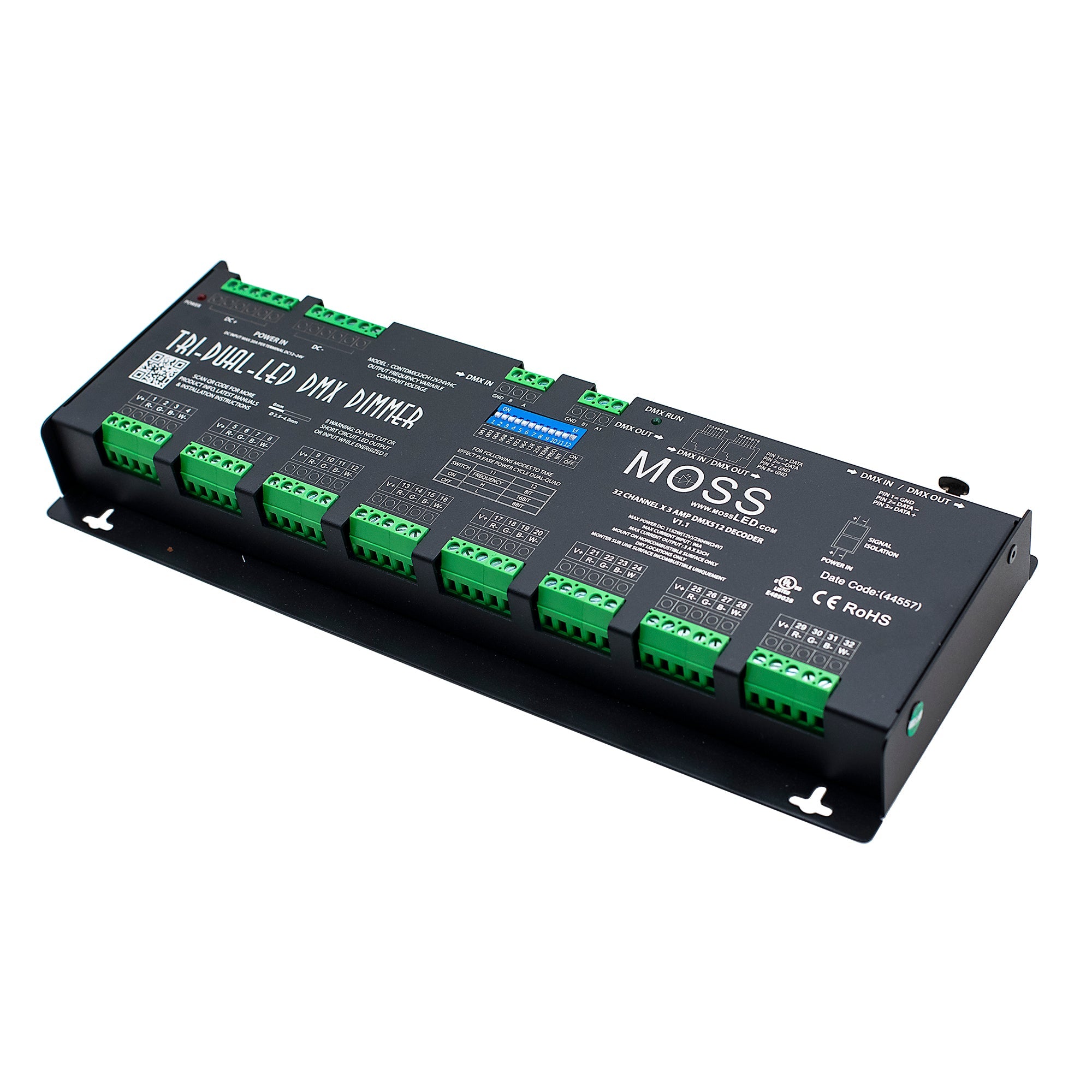

- 32 Channel DMX Decoder - 16 Bit - High Current.
- This unit converts DMX-512/1990 standard digital signal into 32 dimmable channels.

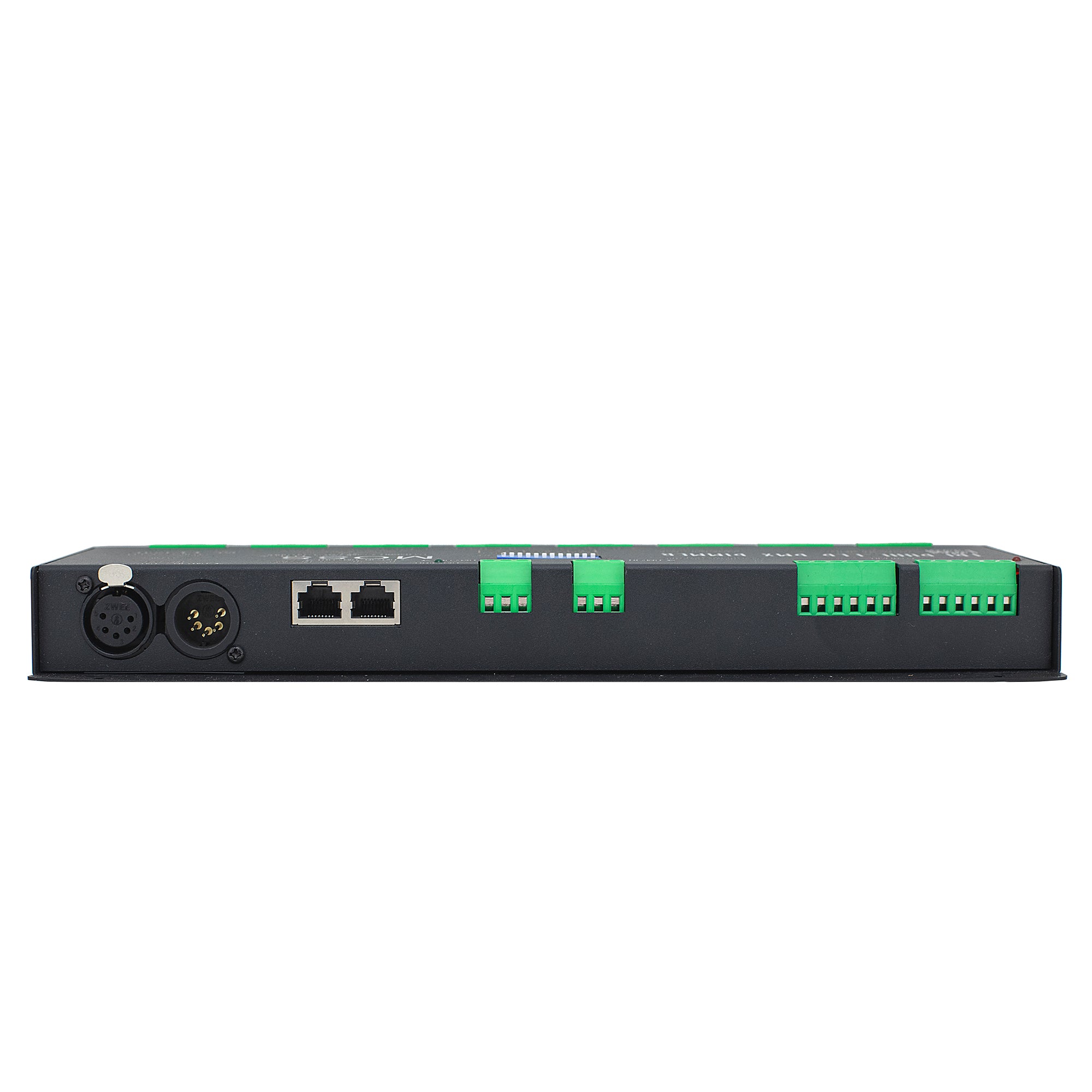

- Uses RJ45 Ethernet or 5-pin XLR connectors to control LEDs via any DMX capable lighting console or through computer software.
- Can create over 16 million colors when used with our Colorful RGBA or RGBW or RGB or combined with Bi-Color or White FlexLED Tapes.
- Dip Switch No. 10 is Termination for DMX.
- Dip Switch No. 11 is Frequency Option (500Hz or 5kHz).
- Dip Switch No. 12 is Bit-Rate Option 16 Bit or 8 Bit.
Technical Specifications
|
Output Current (A) |
: |
32 CH @ 3A/CH = Max 96A |
|
Output Power (W) |
: |
1152W @ 12V / 2304W @ 24V |
|
Supply Voltage |
: |
DC12V - DC24V |
|
Size (inches) |
: |
L 11.4” x W 4.8” x H 1.2” |
|
Working Temperature |
: |
-0°C to + 50 °C |
|
Bit Rate |
: |
8 Bit & 16 Bit |
|
Weight |
: |
920g |
|
Signal Isolation |
: |
> 1000V |
|
PWM Frequency |
: |
500Hz OR 5000Hz (5kHz) |
|
IP Rating |
: |
IP40 |
**Connector Tails Not Included**
UL Certificate of Compliance
