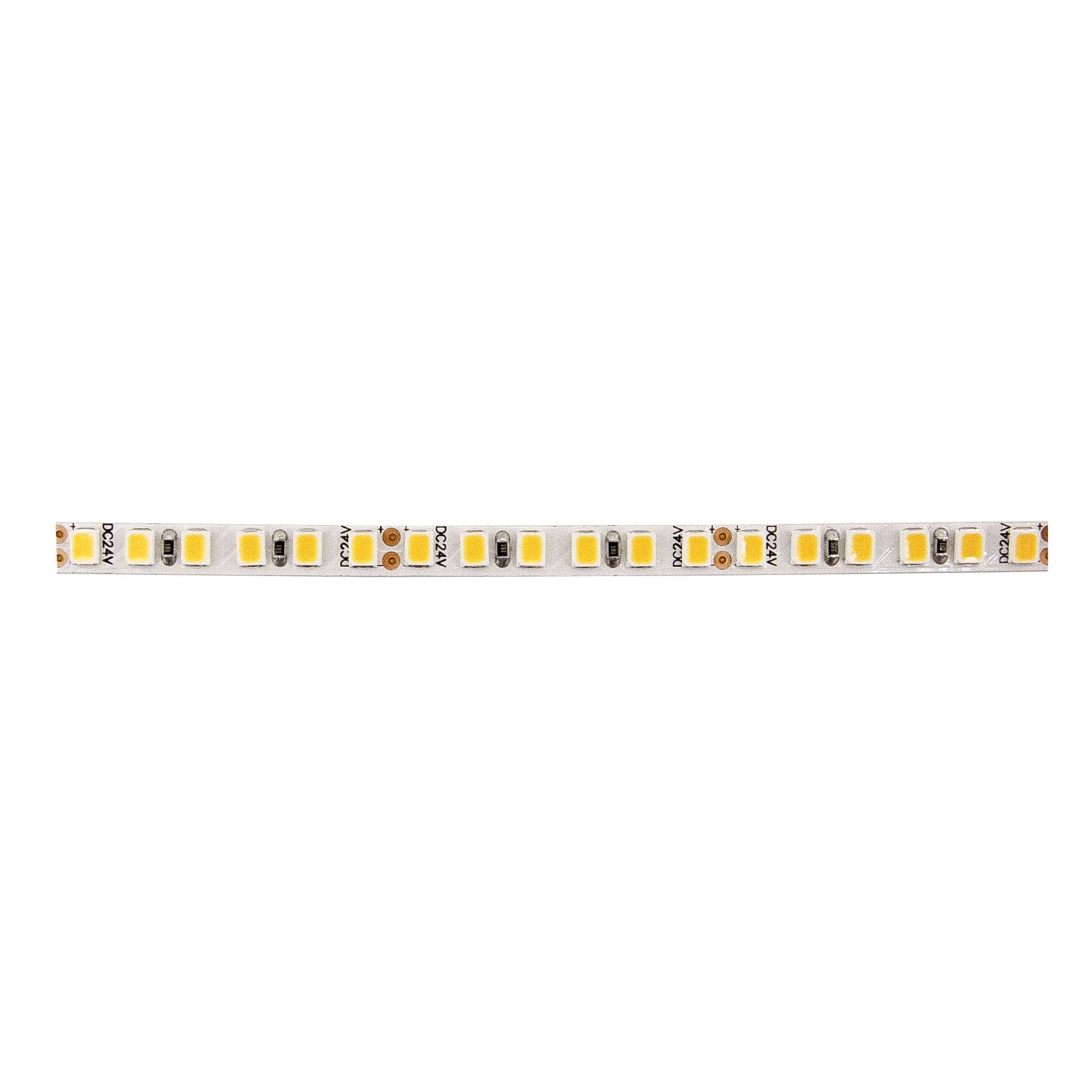

The FlexLEDslim 180 White 24V is our smallest, high-density LED strip, measuring just 5mm wide, making it ideal for tight spaces where high-output lighting is required. Featuring 180 LEDs per meter, this ultra-slim strip delivers superior brightness and colour accuracy with a CRI of 95+, ensuring natural, full-spectrum white light with no green spike or colour deficiencies.
Key Features:
- Ultra-Narrow 5mm Width – Perfect for compact installations requiring precise lighting applications.
- High LED Density (180 LEDs/m) – Delivers uniform, high-output illumination.
- Industry-Standard White Variants – Available in 2700K, 4100K, and 5600K.
- High CRI (95+) – Ensures excellent colour rendering for on-camera use.
- Flexible & Customizable – Cuttable and adaptable for a variety of installations.
- Easy Installation – 3M double-sided adhesive backing for quick and secure mounting.
Installation & Handling Considerations:
- Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
- Waterproof versions require mounting via silicone (not included).
Soldering Guidelines:
- Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
- Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Additional Details:
- Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
- Controller, power supply, and extension cables sold separately.
- Quantity discounts and custom colour temperatures available.
- Pricing is for 5 meters (16.4’) - custom lengths available
The FlexLEDslim 180 White 24V is the ultimate solution for high-quality, ultra-narrow lighting, offering exceptional brightness, precision, and colour accuracy.
Need a custom solution? Contact us today!
SPECIFICATIONS - INDOOR PRODUCT
Product Type | : | Warm White | Neutral White | Cool White |
Product Code | : | I24VWW279002835 | I24VNW419002835 | I24VCW569002835 |

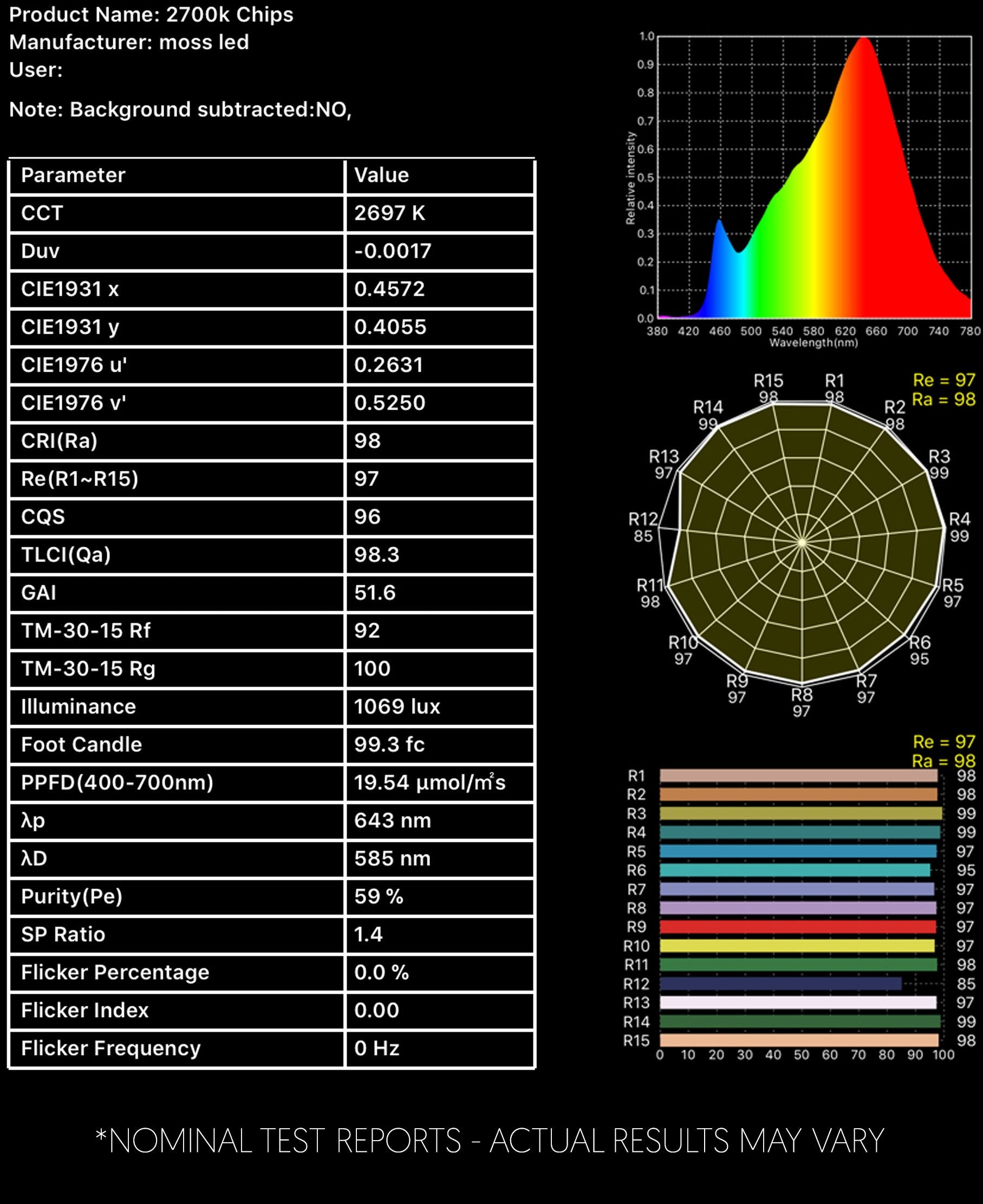

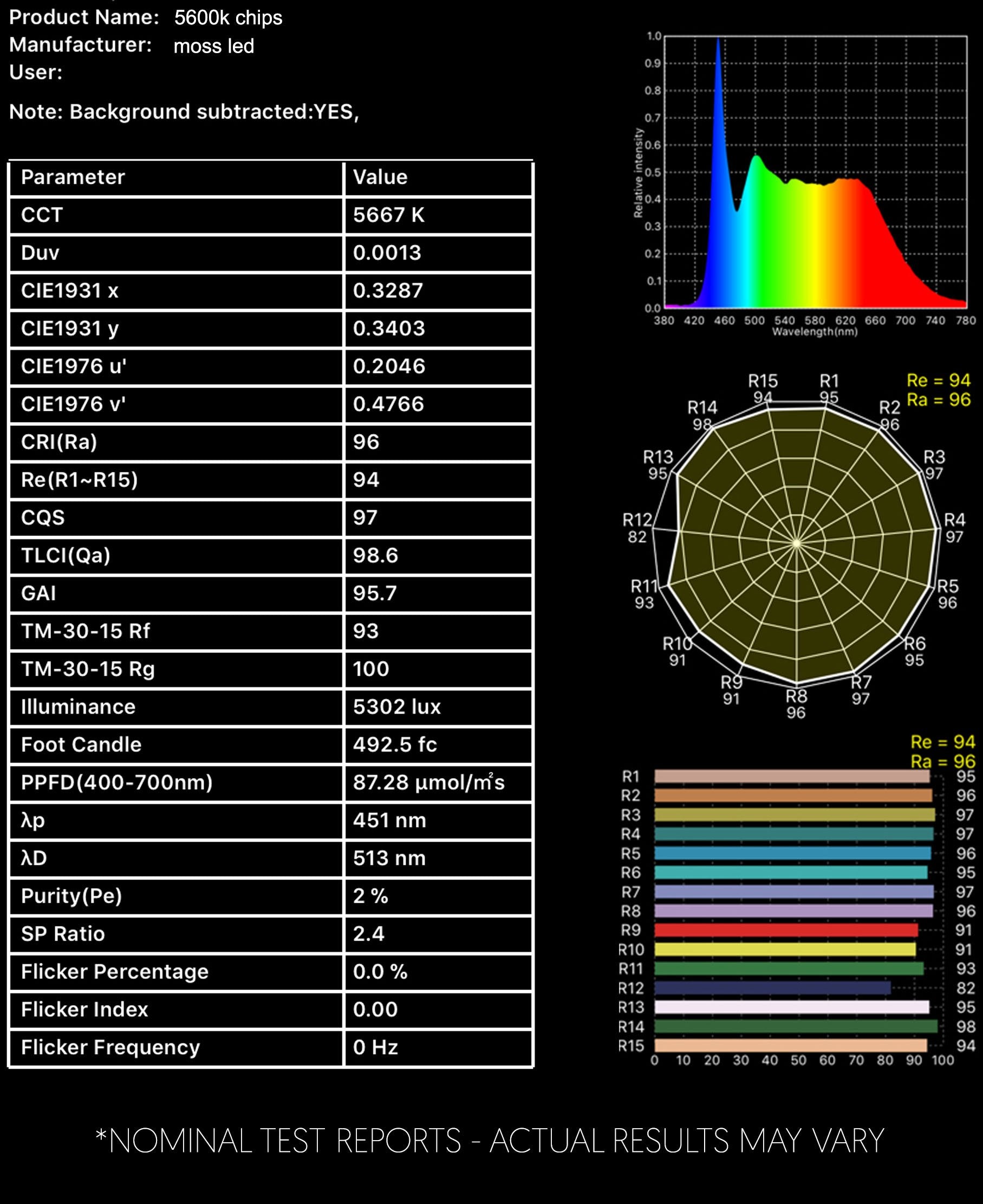

CRI | : | 95+ | 95+ | 95+ |
Kelvin | : | 2700k +/-100k | 4100k +/-100k | 5600k +/-100k |
PCB Color | : | White | White | White |
Current, Rating | : | 0.6 A / meter | 0.6 A / meter | 0.6 A / meter |
Voltage | : | 24 VDC | 24 VDC | 24 VDC |
Wattage | : | 14.4 W / meter | 14.4 W / meter | 14.4 W / meter |
CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
IP Rating | : | IP43 | IP43 | IP43 |
Lumens @ Full | : | 1540 lm / meter | 1540 lm / meter | 1540 lm / meter |
Lumen / Watt | : | 107.1 | 107.1 | 107.1 |
Lifetime* | : | 30,000 hours | 30,000 hours | 30,000 hours |

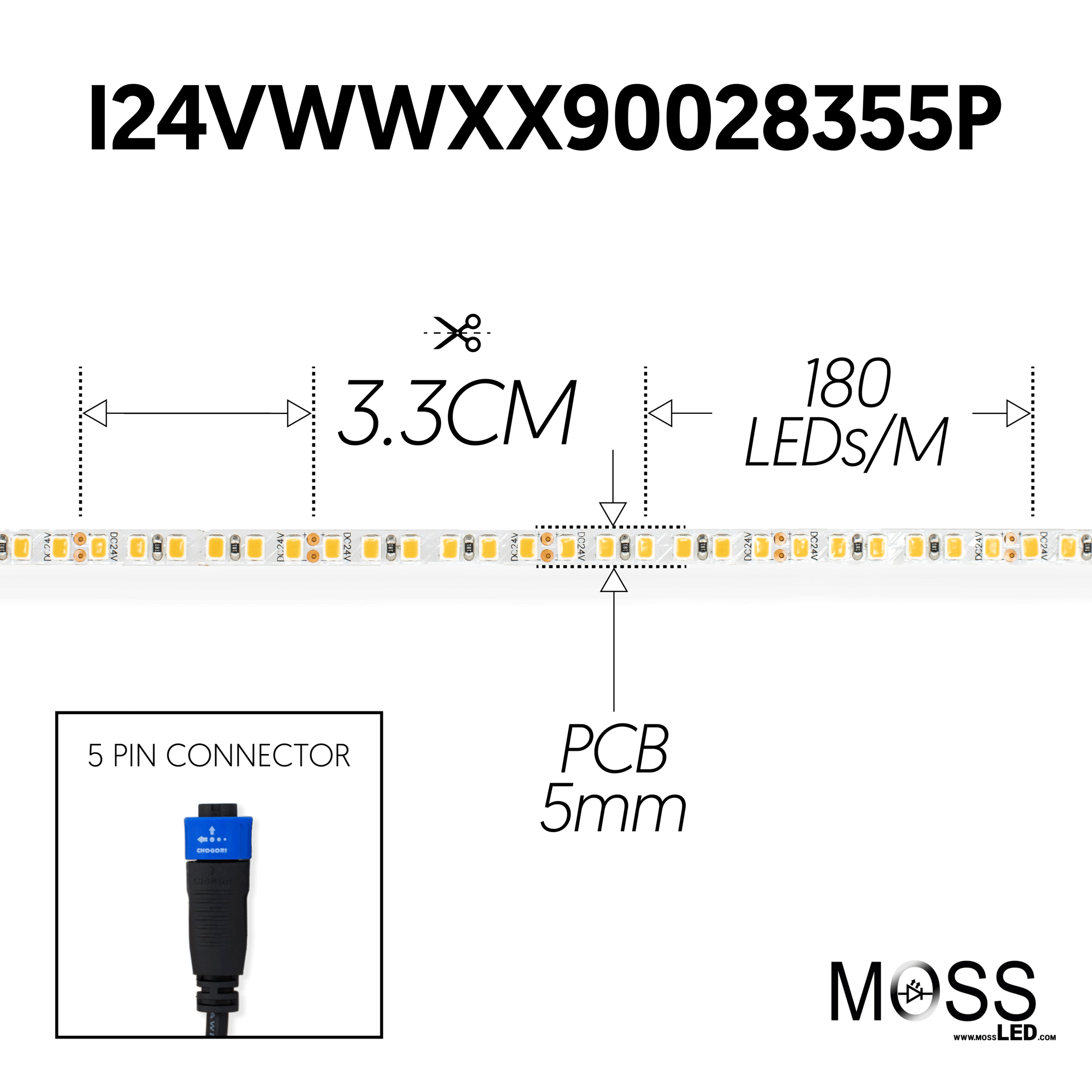

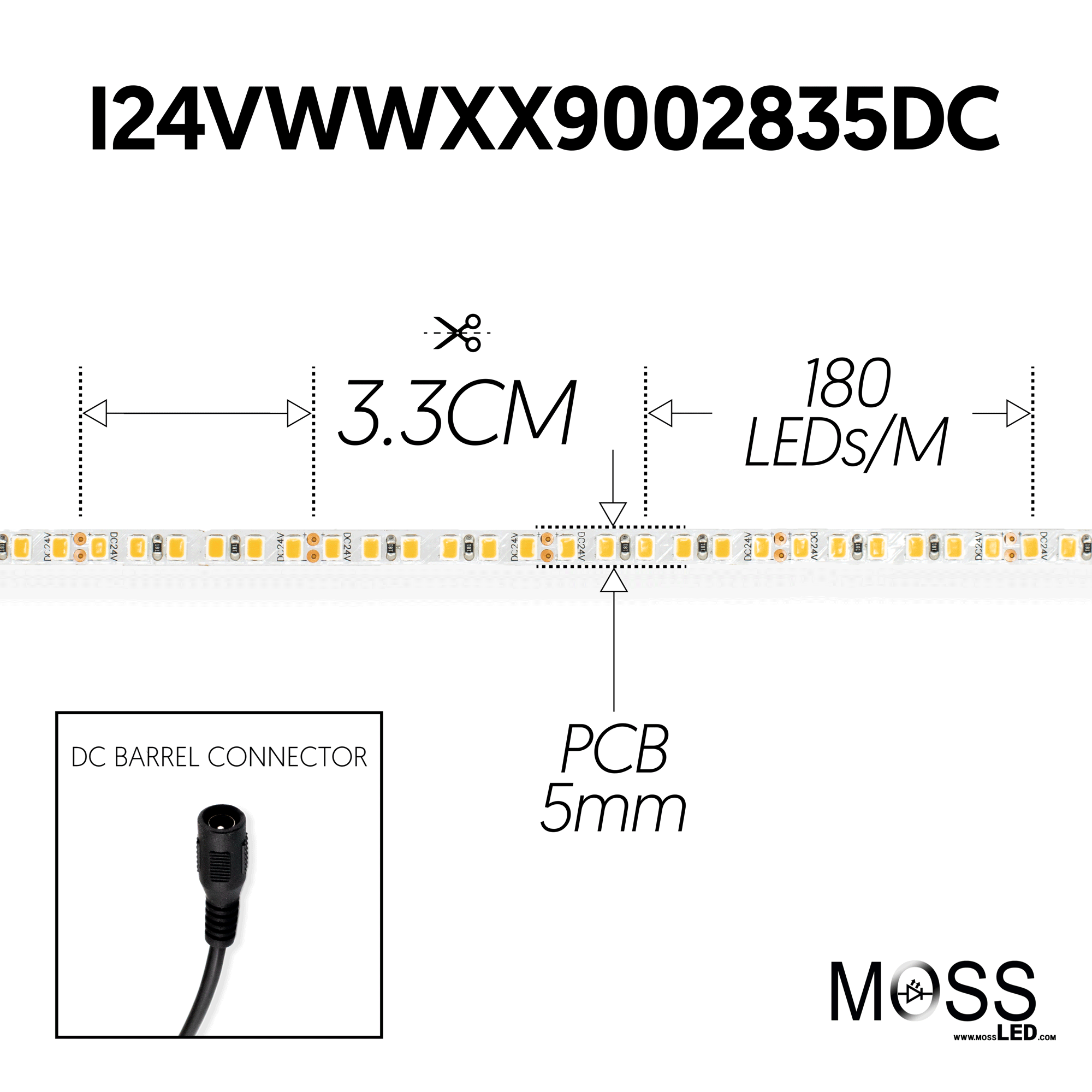

Cutting Length | : | 3.33CM | 3.33CM | 3.33CM |
LED Quantity | : | 180 LED / meter | 180 LED / meter | 180 LED / meter |
Number of Contacts | : | 2 | 2 | 2 |
LED Type | : | 2835 | 2835 | 2835 |
Copper Quantity | : | 3 Oz. | 3 Oz. | 3 Oz. |
Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C |
Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C |
Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
PCB Width | : | 5MM | 5MM | 5MM |
Maximum Recommended Length | : | 5 meters | 5 meters | 5 meters |
Viewing Angle | : | 120 degree | 120 degree | 120 degree |
Adhesion | : | 3M 200MP | 3M 200MP | 3M 200MP |
DOWNLOADS
-
Specification Sheet
UL Certificate of Compliance
-
Declaration of Conformity (CE & RoHS)
REACH Report 1907/2006
*nominal lifetime - dependent on installation location
