The VentiDrive is a 24 channel LED dimmer with 1200 watts of output capacity @ 24VDC.
The design allows for fast plug’n’play connectivity and allows you to be up and running in no time. It features precision dimming from 0 - 100%, 8-bit or 16-bit modes, PWM frequency adjustment from 500Hz to 35kHz, full manual control, and dimming curve adjustments.
Each channel has a maximum power output of 4A (96 watts @ 24VDC or 48 Watts @ 12VDC up to 960W total output) The VentiDrive is available in either 12VDC or 24VDC models. Its rugged chassis is capable of being mounted via clamps, in a rack, stacked on top of each-other, or screwed into a wall and allows it to be placed in virtually any location. Industry-standard 5-position terminal plugs allow for universal connectivity to as many LED products as possible. TRUE1 connectors & auto-switching internal power supplies allow for power input from 90 - 250VAC. Whisper-quiet 16dB fans keep the unit cool in any location and to top it all off the VentiDrive can be remotely addressed via RDM. Delivering 50A @ 24VDC or 80A @ 12VDC this is the most powerful LED dimmer with on-board power supply on the market!
-
Small 2U design (Only 3.5")
-
Powerful 1200 Watt (50 AMP) at 24V output across 24 channels of dimming
-
6 outputs of 4 channels each at 200 Watt OR combine outputs infinitely to create one large 1200 Watt Output
-
Frequency mode selection from 500Hz to 35kHz for Flicker-Free operation at almost every camera setting.
-
Only 2 ultra-quiet 16dB fans for on-set use
-

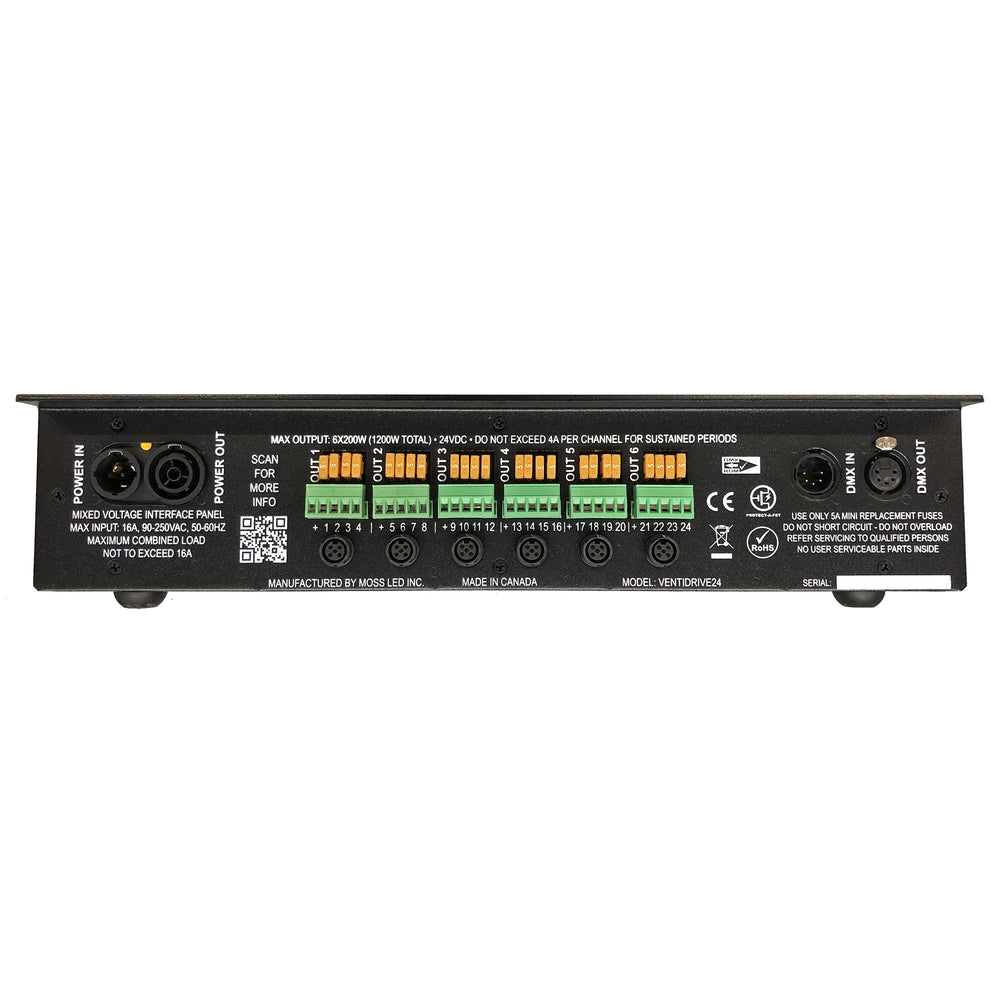

Terminal Block output connectors for ease-of-use and on-site wiring
-
24 individually fused channels for maximum protection
-
New rugged thicker aluminum housing for long-term durable use for all industries.
-
New mounting brackets for easy hanging, surface mount, and safety chain connections.
-
Rear lip protection over output connectors designed to protect all rear components
-
Recessed front power switch allow for protection of components and accidental activation of functions
-
New Neutrik True1 power input and output locking connectors allow for power breaking under load
-
Rubber feet mounted to the bottom allow for non-skid performance and protection of the chassis itself.
-
VentiQuattro dimming engine inside.

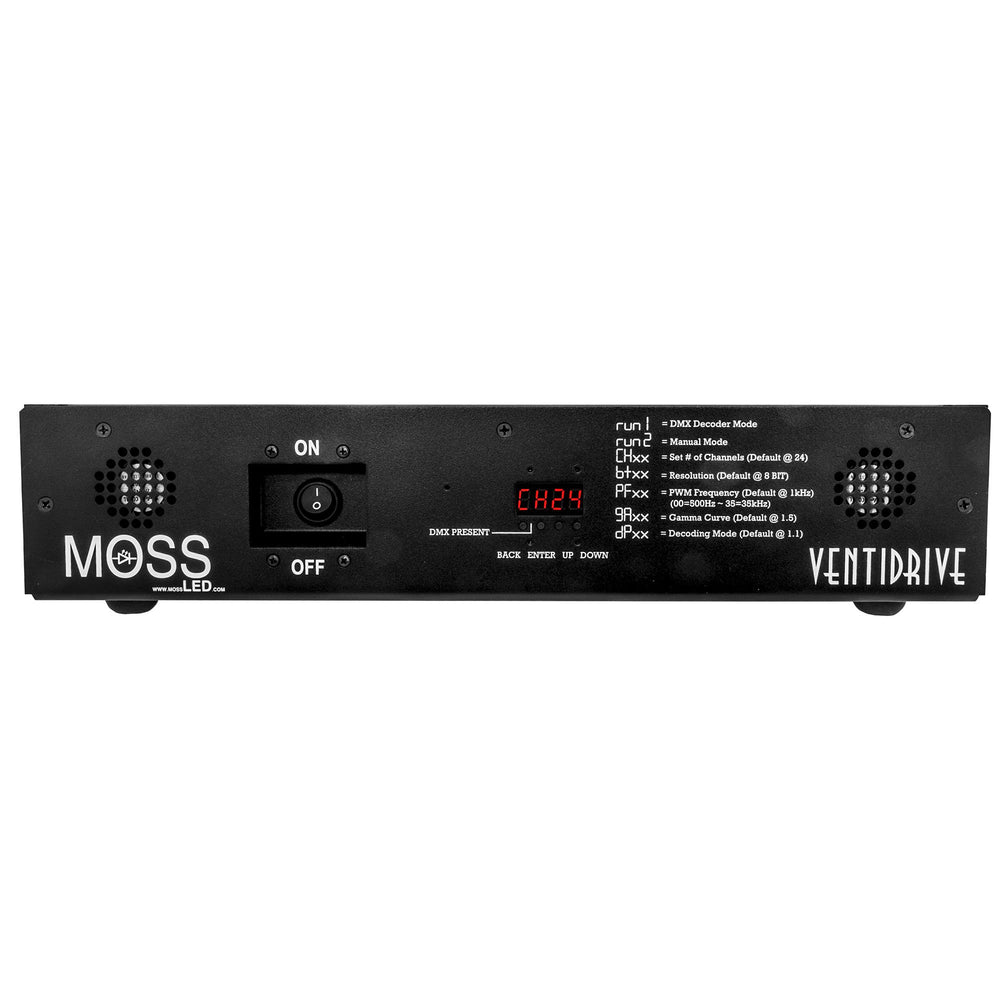

Professional DMX controlled multi-channel LED controller with built-in power supply.
Approved for use anywhere in the world!
Contact us for pricing details for large quantity orders or for rental options.
TECHNICAL SPECIFICATIONS
|
Output Voltage (V) |
: |
24V DC |
12V DC |
|
Output Current (A) |
: |
50A (6 X 8.34A) |
80A (6 X 13.34A) |
|
Output Power (W) |
: |
1200 W (6 X 200W) |
960 W (6 X 160W) |
|
Agency Approvals |
: |
CE/RoHS/cUL (field evaluated) |
CE/RoHS/cUL (field evaluated) |
|
Size (inches) |
: |
17L X 15.75W X 3.5H |
17L X 15.75W X 3.5H |
|
PWM Frequency |
: |
500 Hz ~ 35 kHz |
500 Hz ~ 35 kHz |
|
Dimmers |
: |
24 Channels |
24 Channels |
|
Line & Load Regulation () |
: |
0.5% |
0.5% |
|
PSU Efficiency |
: |
95% |
92% |
|
Frequency Range |
: |
47 ~ 63 Hz |
47 ~ 63 Hz |
|
Universal AC input |
: |
90 ~ 250VAC 127 ~ 431VDC |
90 ~ 250VAC 127 ~ 431VDC |
|
Low leakage current |
: |
.75mA |
.75mA |
|
Protections: |
: |
short circuit, over voltage, overload, over current, over temp |
short circuit, over voltage, overload, over current, over temp |
|
AC Input Connector |
: |
Neutrik True1 Input & Pass-Thru |
Neutrik True1 Input & Pass-Thru |
|
Housing |
: |
Fully enclosed aluminum housing |
Fully enclosed aluminum housing |
|
Medical safety approved |
: |
2 x MOPP between primary and secondary |
2 x MOPP between primary and secondary |
|
Class |
: |
Class 2 power (24 channels @ 4A each) |
Class 2 power (24 channels @ 3.34A each) |
|
Indicator |
: |
Front LCD Screen - See Specification Sheet for Details |
Front LCD Screen - See Specification Sheet for Details |
|
Standby Power Consumption |
: |
< 10 watts |
< 10 watts |
|
Output Connector Type |
: |
5 Position Terminal Block |
5 Position Terminal Block |
|
Output Connector Lock |
: |
No |
No |
|
Output Polarity |
: |
Refer to Specification Sheet |
Refer to Specification Sheet |
|
Weight |
: |
24.2 lbs |
24.2 lbs |
|
Mounting Options |
: |
Movable Rack Ears (Front & Top) Front for Rack Mount & Top for Hanging. Rubber Feet on Bottom for Stacking |
Movable Rack Ears (Front & Top) Front for Rack Mount & Top for Hanging. Rubber Feet on Bottom for Stacking |
|
Cooling |
: |
Forced Air via 2 Whisper-Quiet 16db Fans |
Forced Air via 2 Whisper-Quiet 16db Fans |
|
Product Type |
: |
Multi-Channel LED Dimmer W/On-Board Power Supply |
Multi-Channel LED Dimmer W/On-Board Power Supply |
|
MFR Product Family |
: |
VENTIDRIVE |
VENTIDRIVE |
|
Operating Temperature |
: |
-40°C to 90°C |
-40°C to 90°C |
|
Chassis Color |
: |
Black |
Black |
|
Wiring Color Codes Output |
: |
*Refer to Specification Sheet |
*Refer to Specification Sheet |
