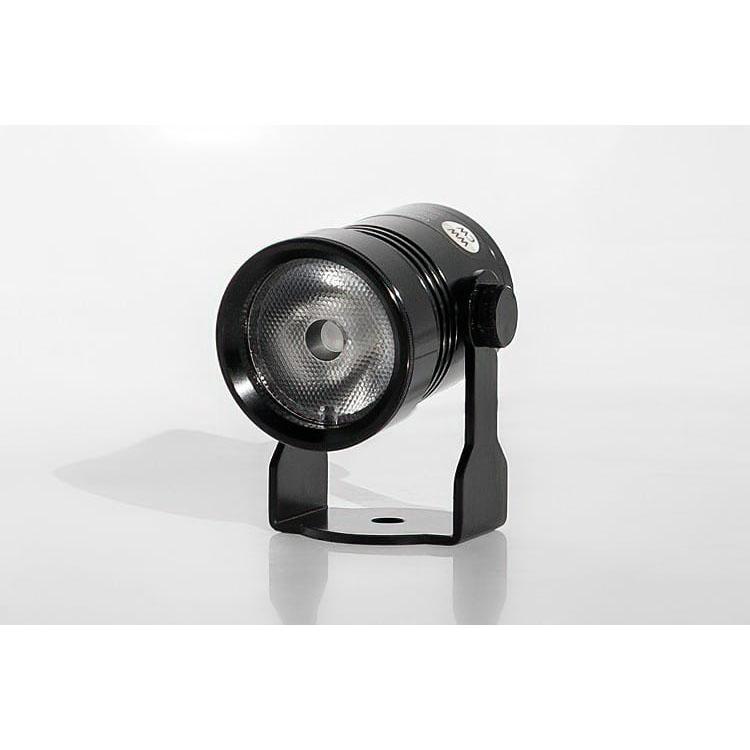

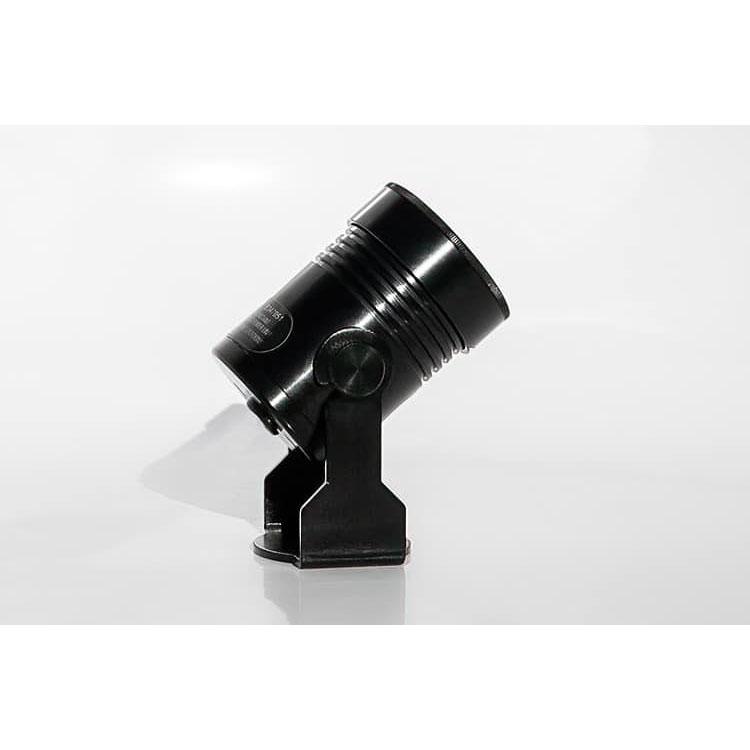

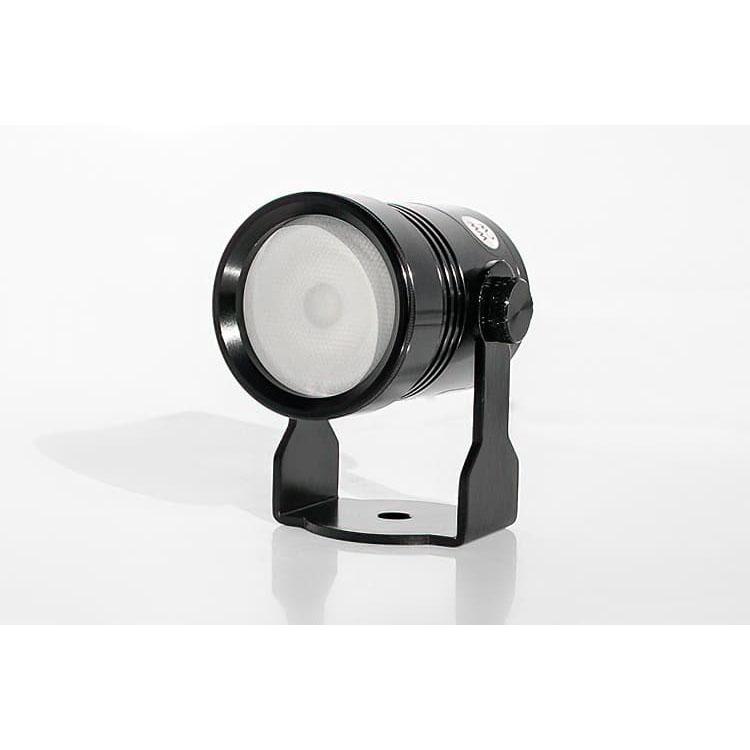

The Gantom DMX V2 is a 4W color controllable LED spotlight for professional applications. Featuring a non-linear dimming curve, the Gantom DMX V2 can be dimmed with high precision even at the lowest intensity levels. Homogeneous optics smoothly blend the colors of the internal quad chip LED producing a clean projected field without the “halos” seen in many other color mixing fixtures. High frequency hybrid modulation allows the Gantom DMX V2 to be used in video
applications with minimal on-camera flickering. The Gantom DMX V2 can even be battery powered for portable applications, perfect for event lighting where access to power and signal is inconvenient. The Gantom DMX V2 is configured using our DMX Programmer app, available free for Apple and Android devices.
applications with minimal on-camera flickering. The Gantom DMX V2 can even be battery powered for portable applications, perfect for event lighting where access to power and signal is inconvenient. The Gantom DMX V2 is configured using our DMX Programmer app, available free for Apple and Android devices.
Features
- Homogenous narrow beam optics
– Available in RGBW or dynamic white options
– TM-30 P1/F2 rating on dynamic white fixture
– Non-linear dimming curve for smooth fading
– Dims to 0.05%
– Constant intensity algorithm for any color
– Minimized on-camera flicker
– Integrated DMX receiver
– Integrated quad channel constant current driver
– Pro Cable connector
Applications
- Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
- Theater and stage accent lighting
- Mobile displays
- Floral centerpieces
- Retail spaces
- Architectural accent lighting
- General purpose accent lighting
- Props and animatronics
- Special effects lighting
- Temporary event lighting
Specifications
| Max wattage | 4.8W |
| Input Voltage | 9-24VDC (12VDC nominal) |
| Current Draw | < 400mA @ 12VDC |
| Power Supply | For use with class 2 regulated switching power supply |
| Beam Angle | 19 degrees |
| Field Angle | 38 degrees |
| Ingress Protection | IP65 |
| LED | Cree XLamp MC-E |
| Certifications | UL and CE |
| Power Connector | Gantom Pro Cable Connector |
| Signal Connector |
Gantom Pro Cable Connector |
Downloads
