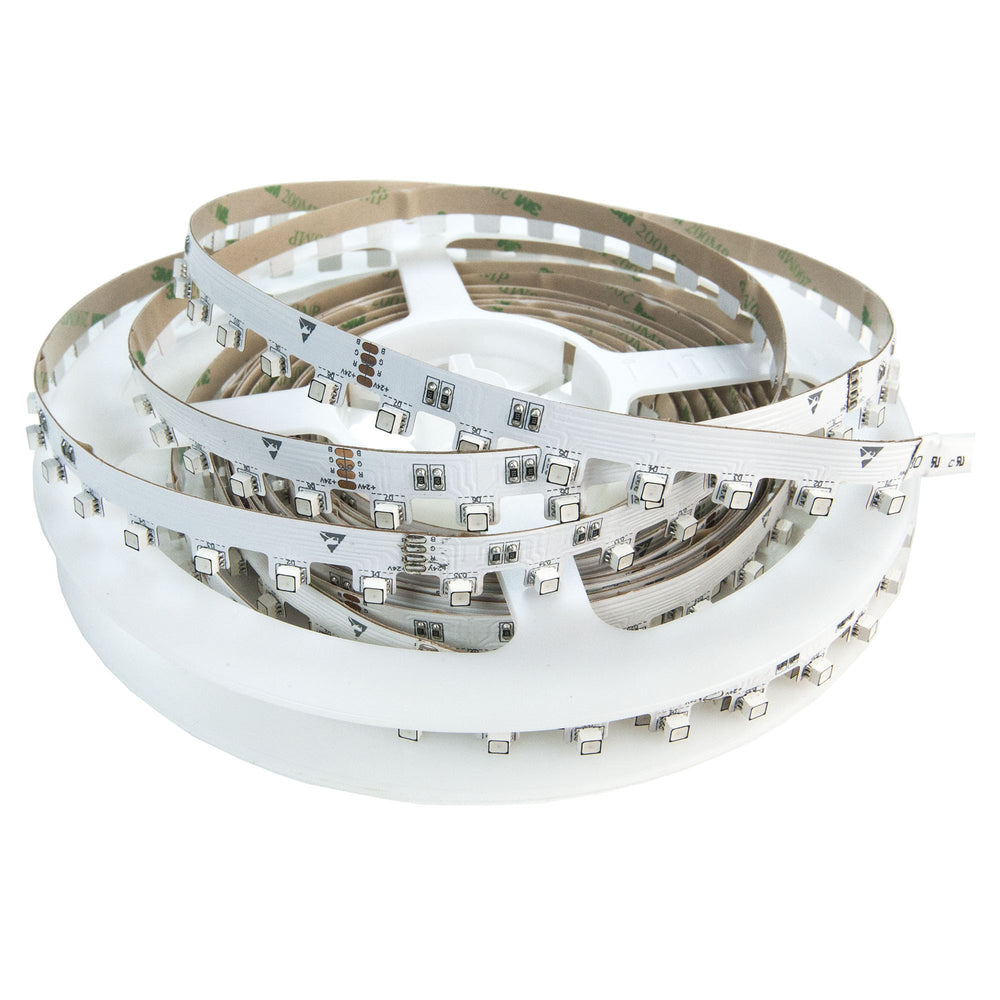

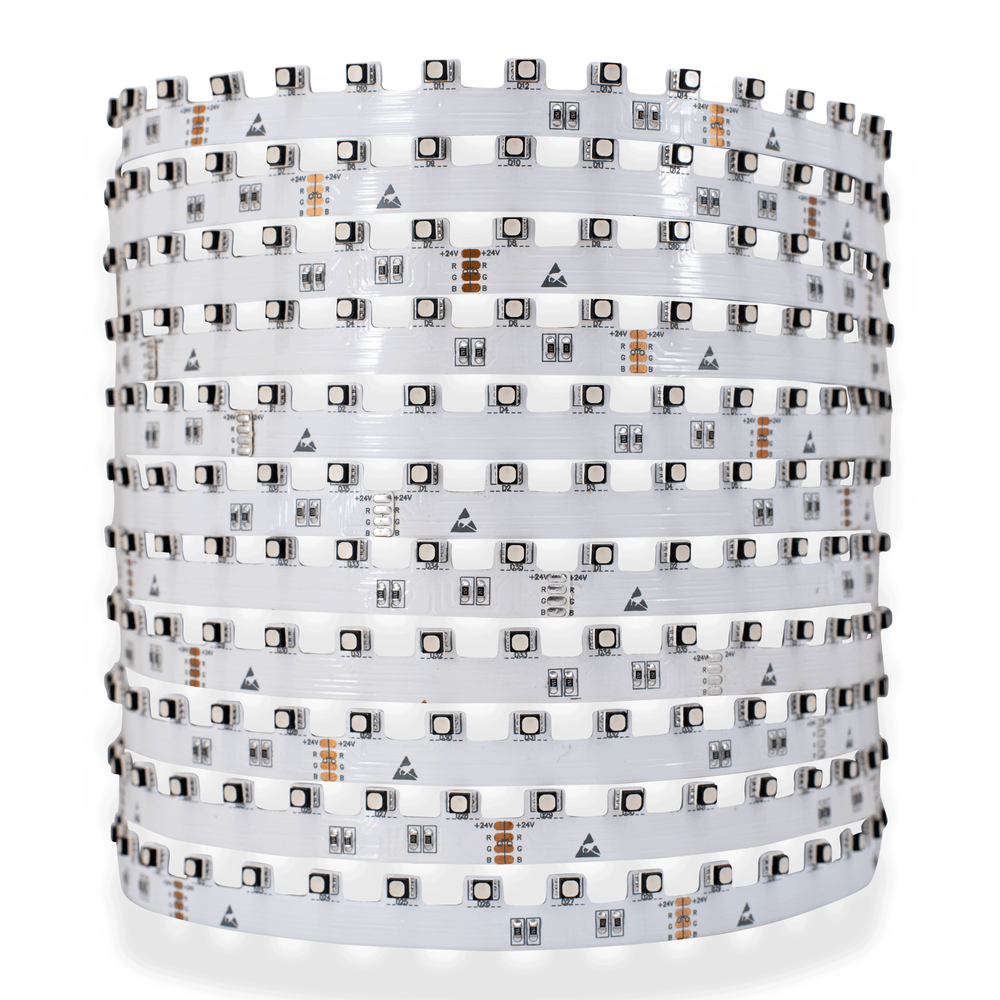

Our step-up FlexLED product is specifically designed to allow for focusing of individual diodes to whichever angle you require.
This design allows for the LED to be focused in virtually any direction. Extremely versatile and unique to Moss LED.
Suitable for residential, television, industrial, and commercial applications
Indoor FlexLED strips have 3M 200MP double-sided tape on the back which makes installation as easy as peel n stick.

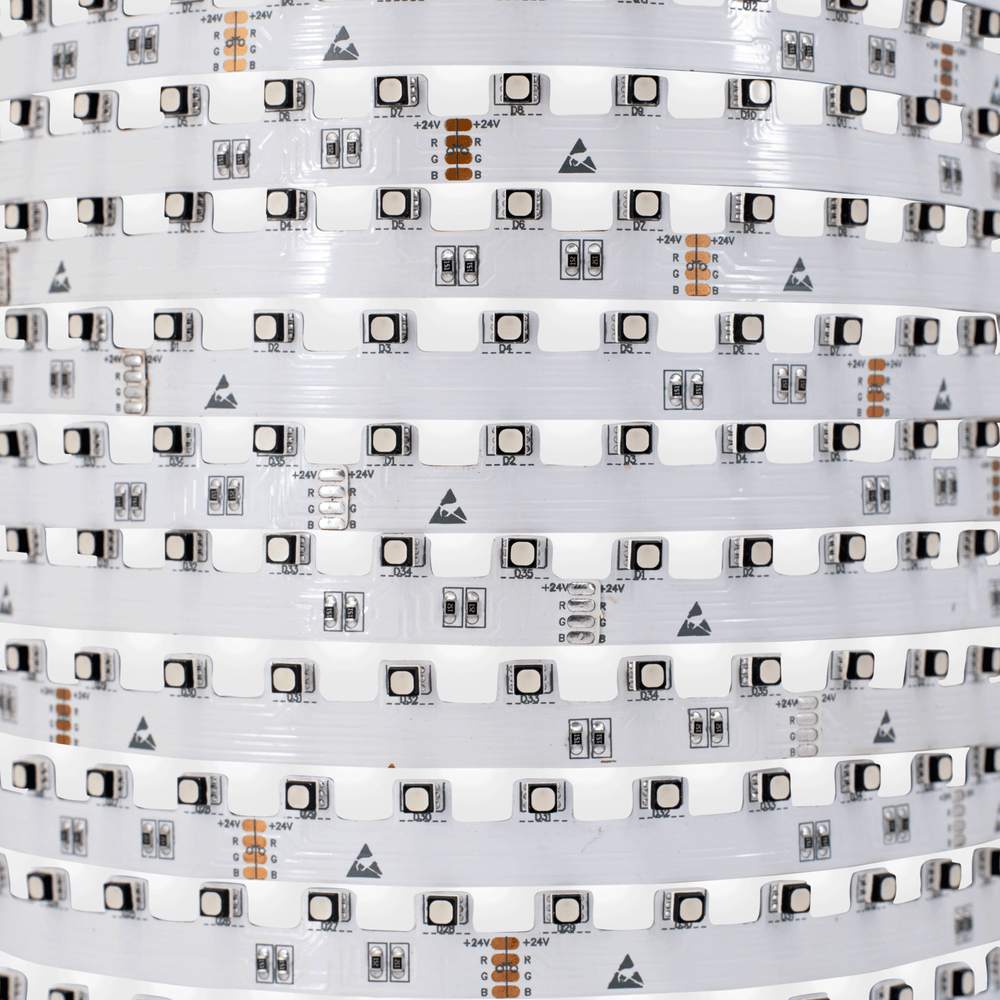

Each individual LED diode is adjustable to allow for unique focusing positions for each and every LED.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

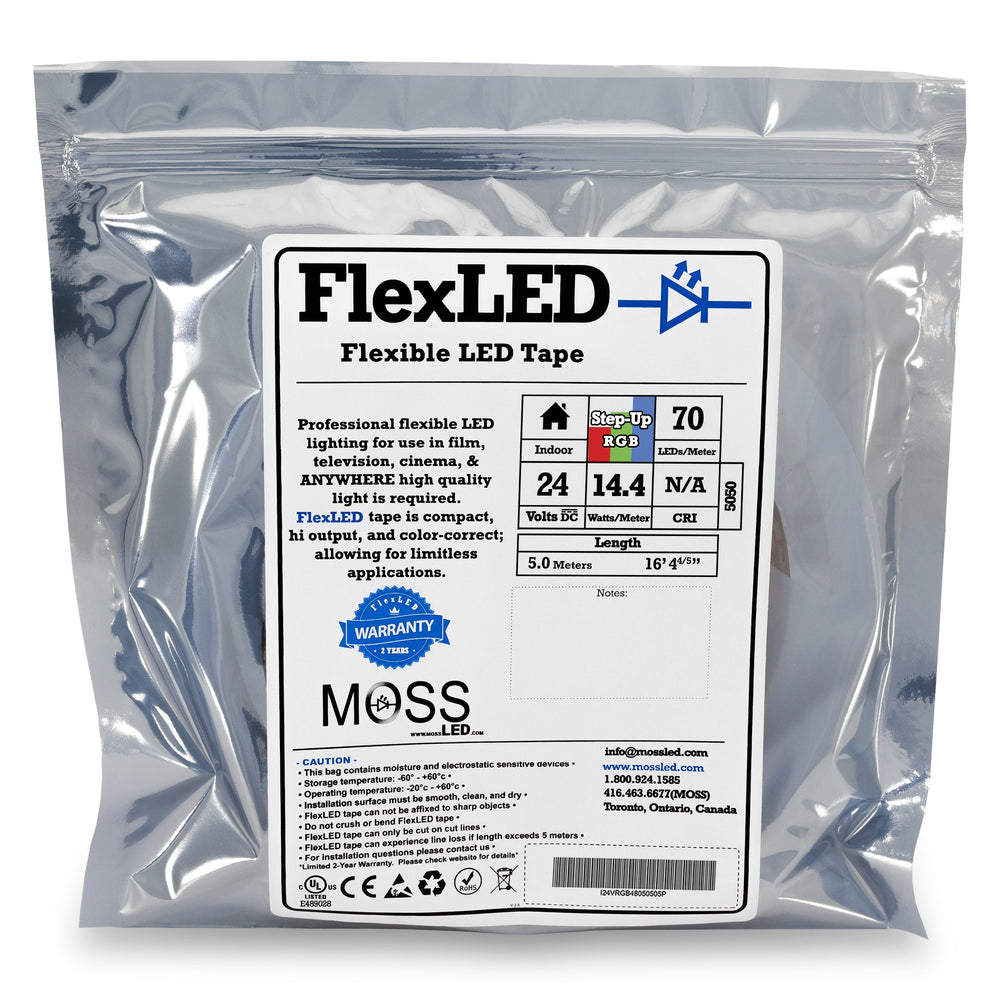

Pricing is for 5 meters (16.4')
SPECIFICATIONS - INDOOR PRODUCT
| Product Type |
: |
Warm White |
Cool White |
RGB Step Up |
| Product Code |
: |
I24VSUWW303503528 |
I24VSUCW563503528 |
I24VSURGB4805050 |
| CRI |
: |
95 |
95 |
N/A |
| Kelvin |
: |
3000k +/-100k |
5600k +/-100k |
N/A |
| PCB Color |
: |
White |
White |
White |
| Current, Rating |
: |
0.19 A / meter |
0.19 A / meter |
0.6 A / meter |
| Voltage |
: |
24 VDC |
24 VDC |
24 VDC |
| Wattage |
: |
4.8 W / meter |
4.8 W / meter |
14.4 W / meter |
| CC / CV |
: |
Constant Voltage |
Constant Voltage |
Constant Voltage |
| IP Rating |
: |
IP20 |
IP20 |
IP20 |
| Lumens @ Full |
: |
300 lm / meter |
300 lm / meter |
1000 lm / meter |
| Lumen / Watt |
: |
62.5 |
62.5 |
69.4 |
| Lifetime* |
: |
40,000 hours |
40,000 hours |
40,000 hours |

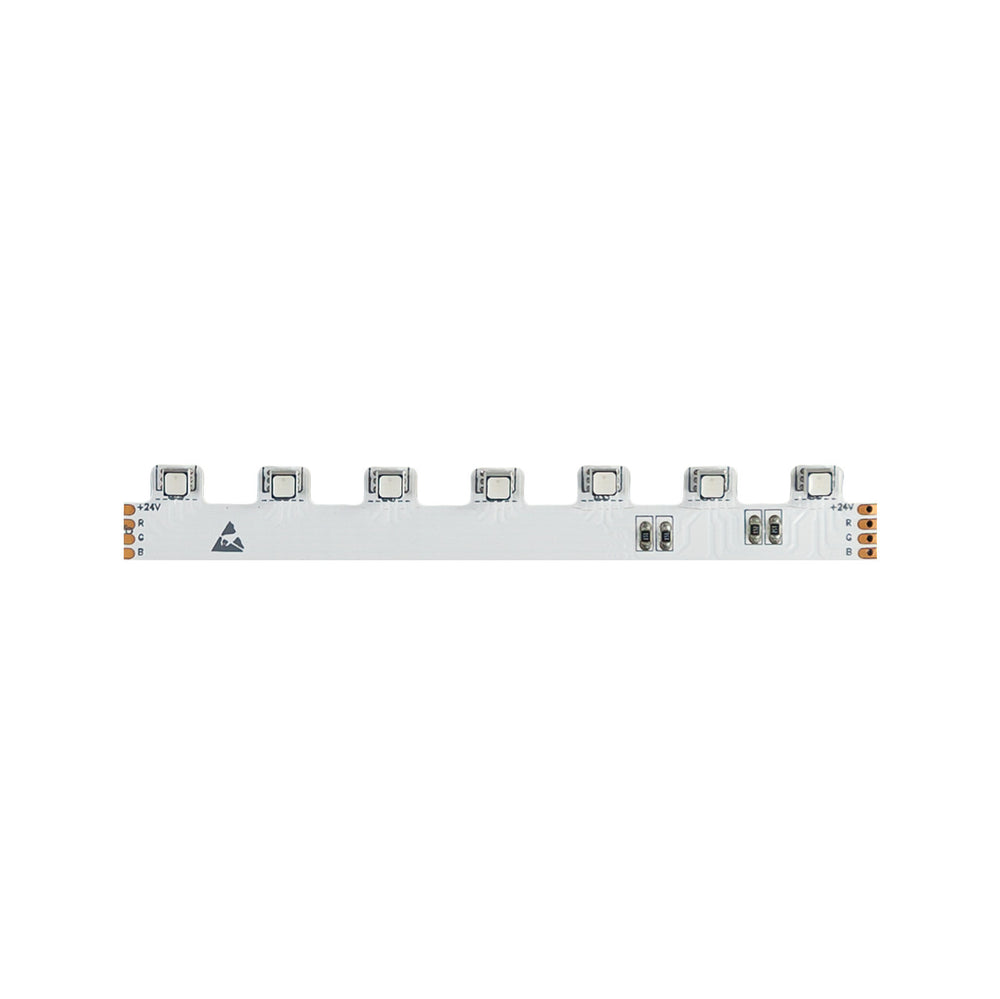

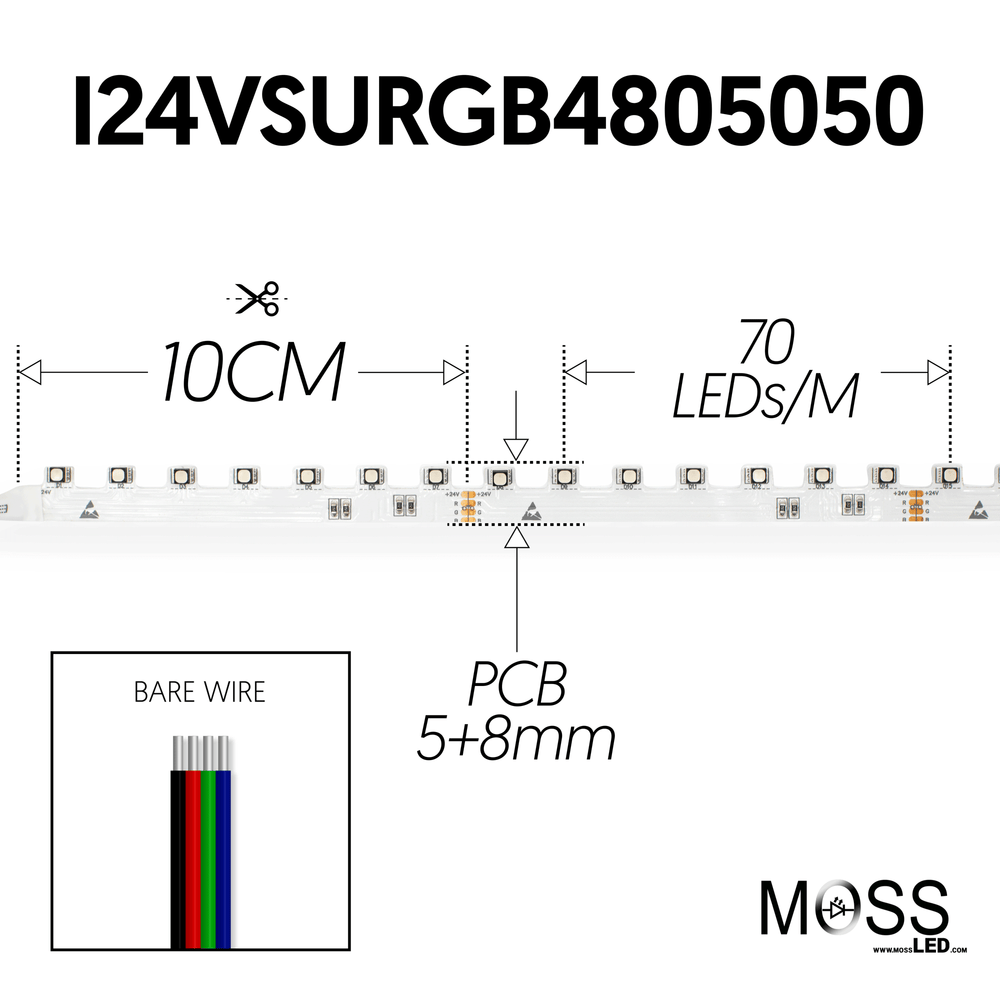

| Cutting Length |
: |
10CM |
10CM |
10CM |
| LED Quantity |
: |
70 LED / meter |
70 LED / meter |
70 LED / meter |
| Number of Contacts |
: |
2 |
2 |
4 |
| LED Type |
: |
3528 |
3528 |
5630 |
| Copper Quantity |
: |
2 Oz. |
2 Oz. |
2 Oz. |
| Temperature, Operating, Maximum |
: |
70 C |
70 C |
70 C |
| Temperature, Operating, Minimum |
: |
-40 C |
-40 C |
-40 C |
| Agency Ratings |
: |
UL - pending, CE, RoHS |
UL - pending, CE, RoHS |
UL - pending, CE, RoHS |
| PCB Width |
: |
5+8MM |
5+8MM |
5+8MM |
| Maximum Recommended Length |
: |
5 meters |
5 meters |
5 meters |
| Viewing Angle |
: |
120 |
120 |
120 |
| Adhesion |
: |
200MP 3M |
200MP 3M |
200MP 3M |
