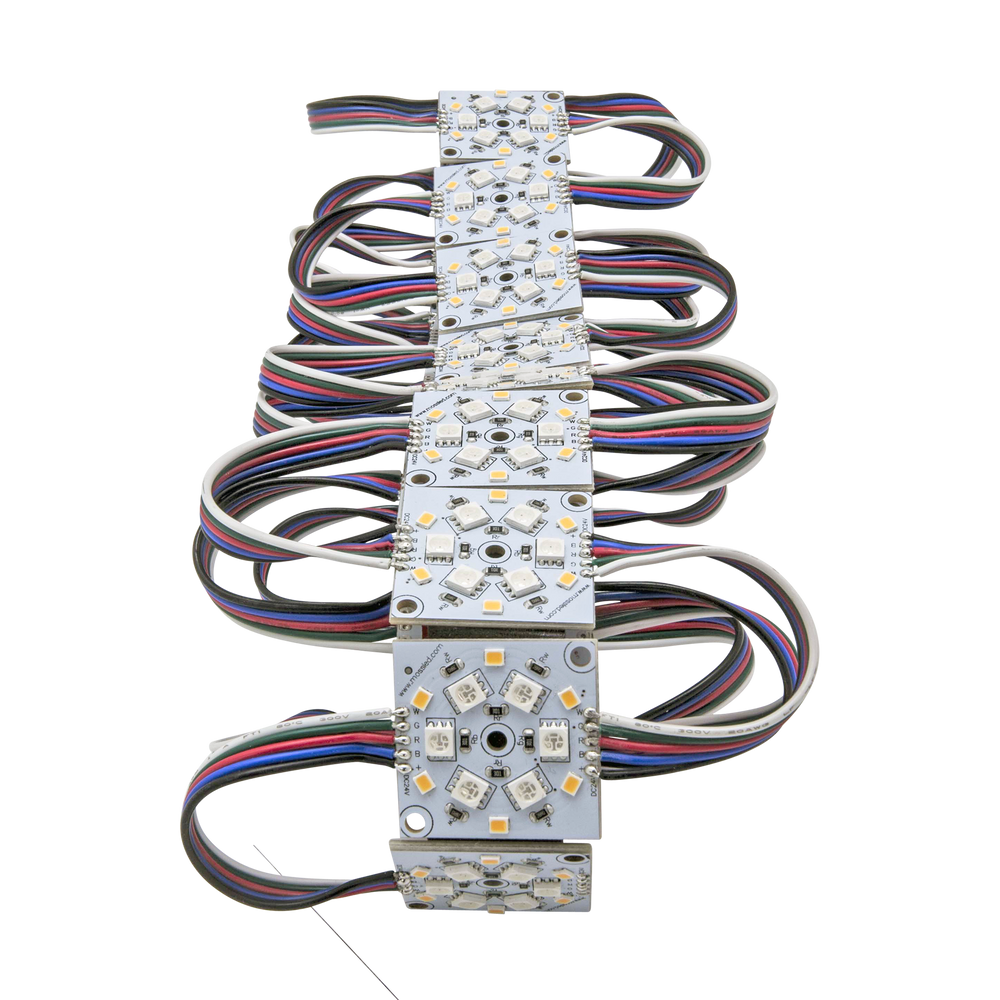

RawModule 12-LED RGB+W

RawModule 12-LED RGB+W

SKU I24VRAWMOD50502835RGBW27
by MossLED
$5.38
IP Rating
Colour
Cable Length
Availability: Translation missing: en.general.icons.icon_check_circle icon 28 in stock, ready to be shipped

Hi Intensity 12-LED Modules

 Suitable for residential, television, industrial, and commercial applications

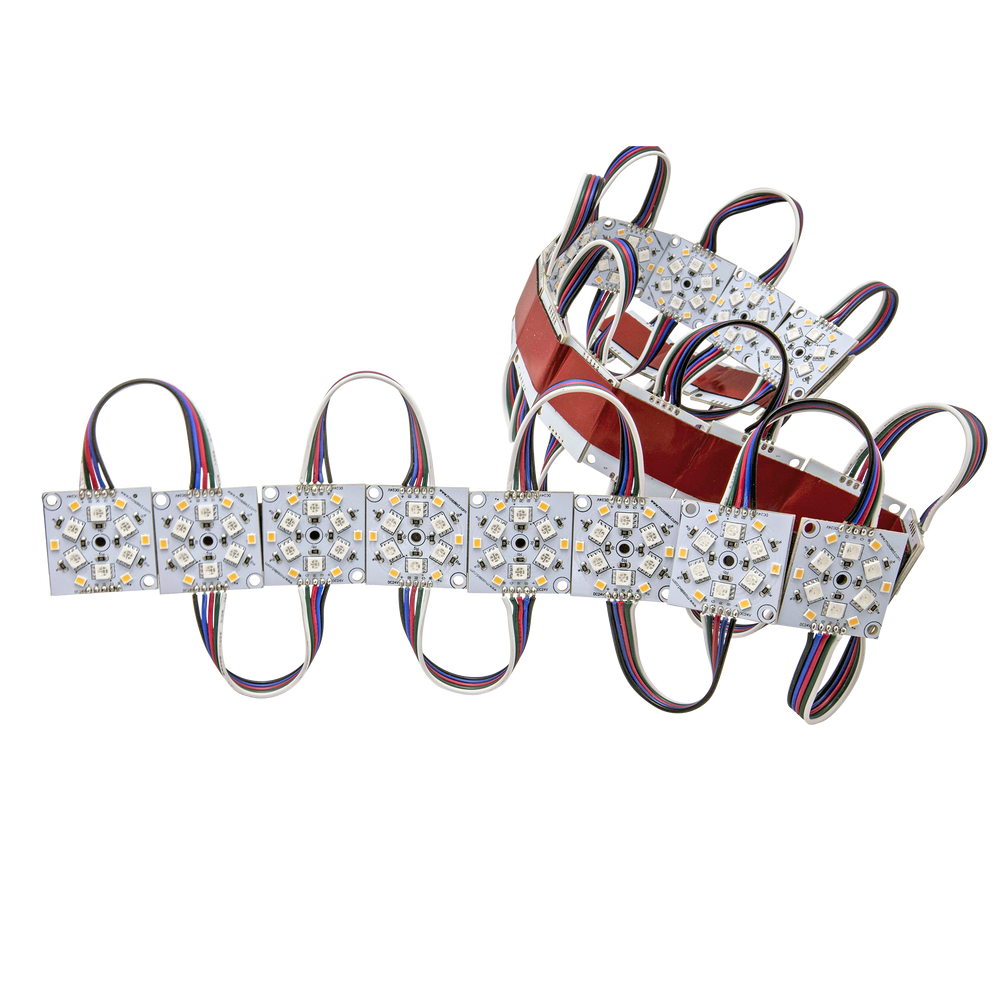

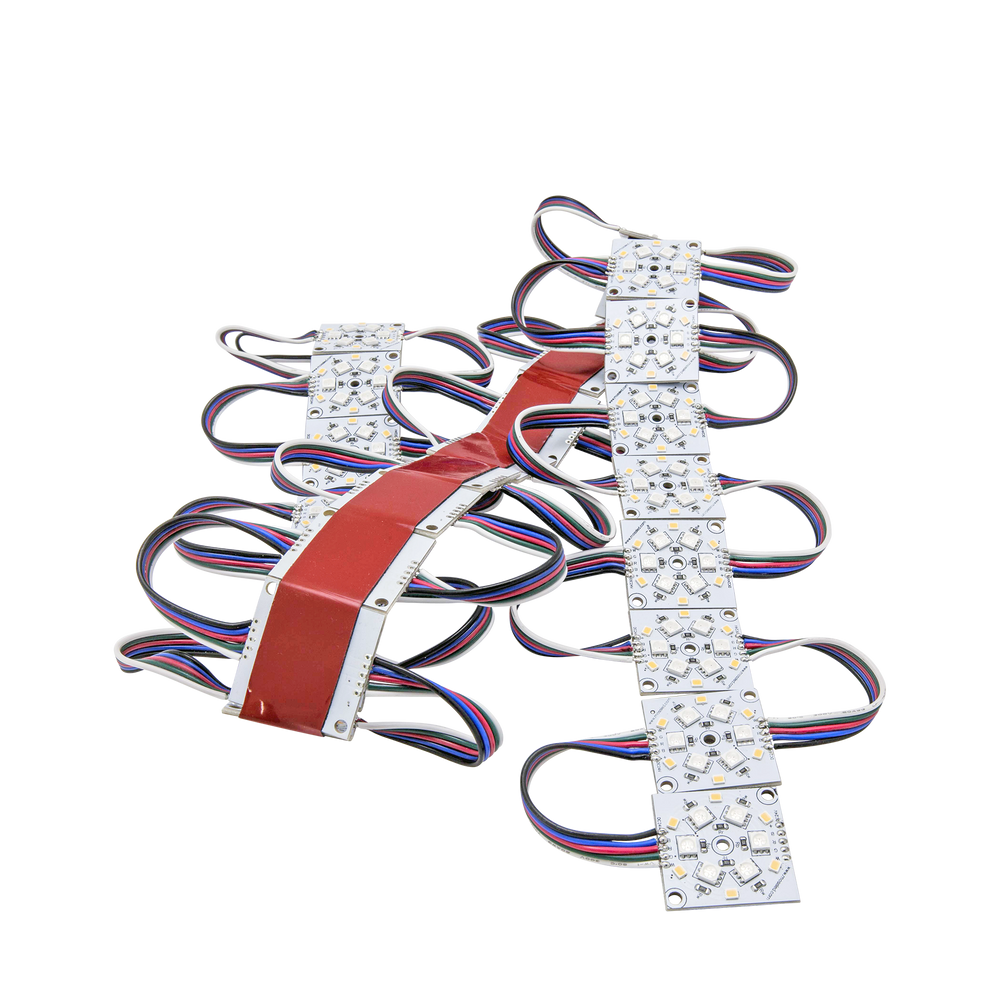

IP43 rated modules have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Maximum recommended length in order to prevent line-loss is 50 LED Modules.

Designed to be used indoors where high CRI consistent LED lighting is required.

Features
Super bright top SMD 5060 (RGB) & SMD 2835 (white) LED as lighting sources
Easy installation
Indoor Rated High CRI IP43
Low voltage, energy efficient (24VDC only)
Distance between two modules are adjustable

Applications

  • Suitable for anywhere high CRI lighting is required
  • Backlight for lightboxes, signage and channel lettering
  • Architectural lighting
  • Colour changing LEDs for television, film, cinema, theatrical, & live events.
  • Signage
  • Decorative lighting for bars, pubs, clubs, and discos

SPECIFICATIONS - IP43 PRODUCT

Product Type : 12-LED RGB+WW Outdoor Module
 12-LED RGB+XX Indoor Raw Module
Product Code : W24VMOD50503528D4PRGBW30 I24VRAWMOD50502835RGBWXX
CRI : <90 ≤95
Kelvin : RGB + W (3000k) RGB + W (2700k or 5600k)
PCB Color : White White
Current Rating : 60mA for RGB, 70mA for Whites
Voltage : 24 VDC 24 VDC
Wattage : 1.824W / Module  2.8 W / Module
CC / CV : Constant Voltage Constant Voltage
IP Rating : IP67 IP43
Lumens @ Full : TBD TBD
Lifetime : 50,000 hours 50,000 hours
Cable Length : 10CM 10CM
Dimensions : 56MM X 32MM (including mounting holes) 36MM X 36MM
LED Quantity : 6 RGB, 6 Warm White 6 RGB, 6 White
Number of Contacts : 5 5
PCB type : FR4 Rigid PCB FR4 Rigid PCB
LED Type : 6 X 5060 RGB : 6 X 2835 White 6 X 5060 RGB : 6 X 2835 White
Operating Temperature : -20 ~ 60C -20 ~ 60C
Agency Ratings : CE, RoHS, UL CE, RoHS, UL
Maximum Recommended Length : 50 Modules (91.2 Watts Total) 50 Modules (140 Watts Total)
Viewing Angle : 120 degree 120 Degree
Adhesive : Mounting Holes / Foam Rubber Adhesive Tape Mounting Holes / Foam Rubber Adhesive Tape

DOWNLOADS

  1.  Specification Sheet (Pending)

  2.  UL Certificate of Compliance



*nominal lifetime - dependent on installation location
