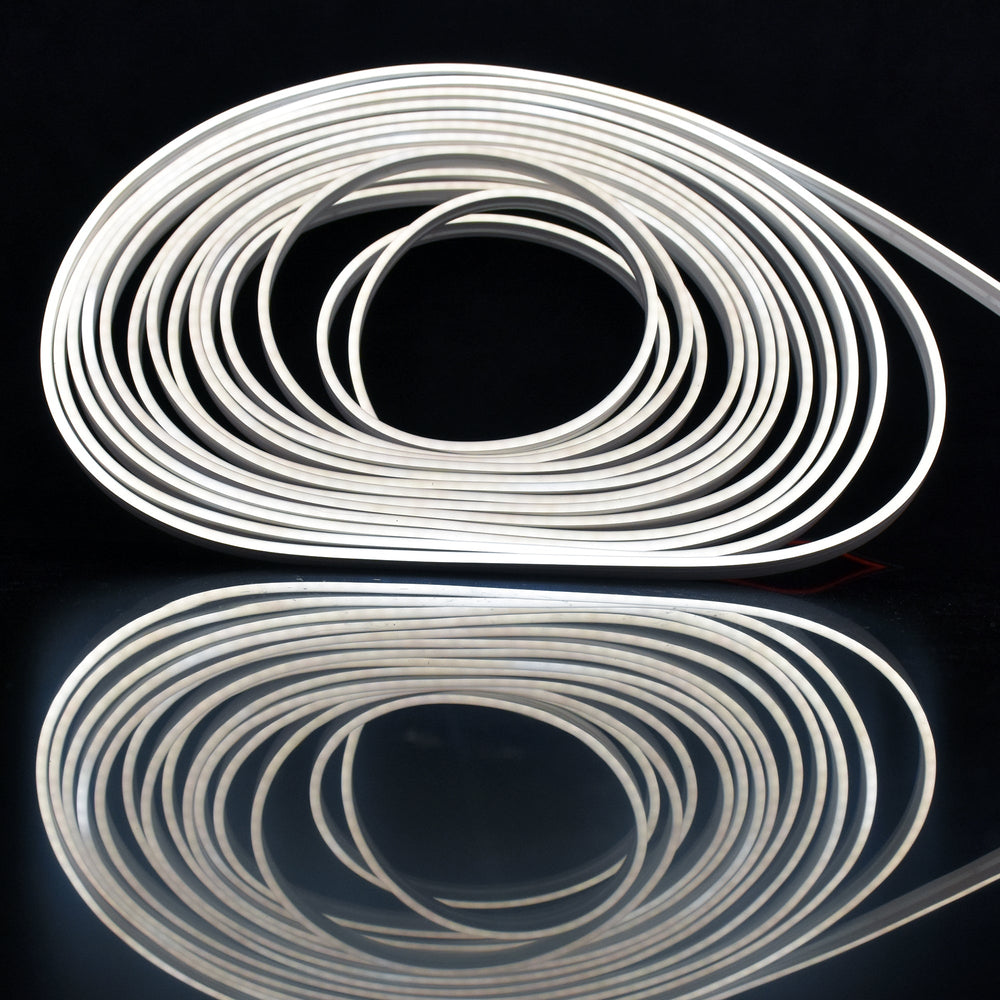

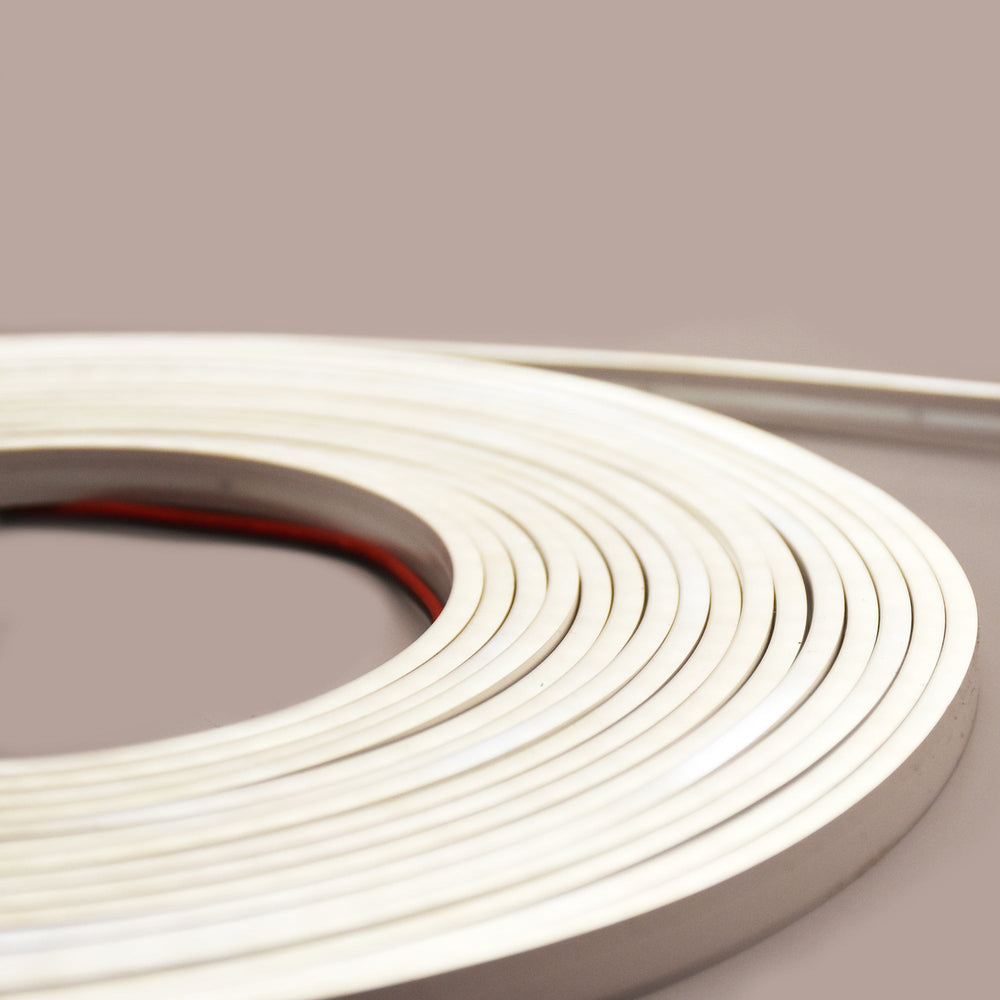

Mini NeonFlex LED is a super slim LED replacement that is excellent for being used in a variety of creative ways.. You asked for it and now it's here! Beautiful uniform look provides seemless, even output across a full 10 or 5 meters.
Available in 2400k and 6500k colour temperatures as well as solid colours including, Red, Green, Blue, Orange, Magenta, Cyan
Customized colours and lengths are available upon request. IP67 rated for outdoor use and 35,000 hour lifespan.
• Suitable for on-camera use, or anywhere a high-quality white light is required.
• High CRI full spectrum whites (Colour Rendering Index) >95. No green spike or colour spectrum deficiencies.
• High tack VHB 5952 double sided tape ensures secure mounting in a variety of wet and dry environments
• Maximum recommended length in order to prevent line-loss is 10m (32')
• Controller, Power supply and Extension Cables sold separately
• Quantity Discounts available. Please call to inquire.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Mini Neon Flex White | Mini Neon Flex Colours |
| Product Code | : | MNFX-24V-XXYY-1028-10M | MNFX-24V-XYYY-1028-10M |
| CRI | : | ≥95 | ≥95 |
| Kelvin | : | 2400k/2700k/3000k/4000k/5500k/6500k | Red, Green, Blue, Cyan, Magenta, Orange |
| PCB Color | : | White | White |
| Current, Rating | : | 0.416 A / meter | 0.416 A / meter |
| Voltage | : | 24 VDC | 24 VDC |
| Wattage | : | 10 W / meter | 10 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage |
| IP Rating | : | IP67 | IP67 |
| Lumens @ Full | : | 328 ~ 576 lm / meter | XX lm / meter |
| Lumen / Watt | : | 34 ~ 60 lm / watt | N/A |
| Lifetime* | : | 30,000 hours | 30,000 hours |
| Cutting Length | : | 5 CM | 5 CM |
| LED Quantity | : | 140 LED / meter | 140 LED / meter |
| Number of Contacts | : | 2 | 3 |
| LED Type | : | 2835 | 2835 |
| Copper Quantity | : | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C |
| Agency Ratings | : | UL E489028, CE, RoHS | UL E489028, CE, RoHS |

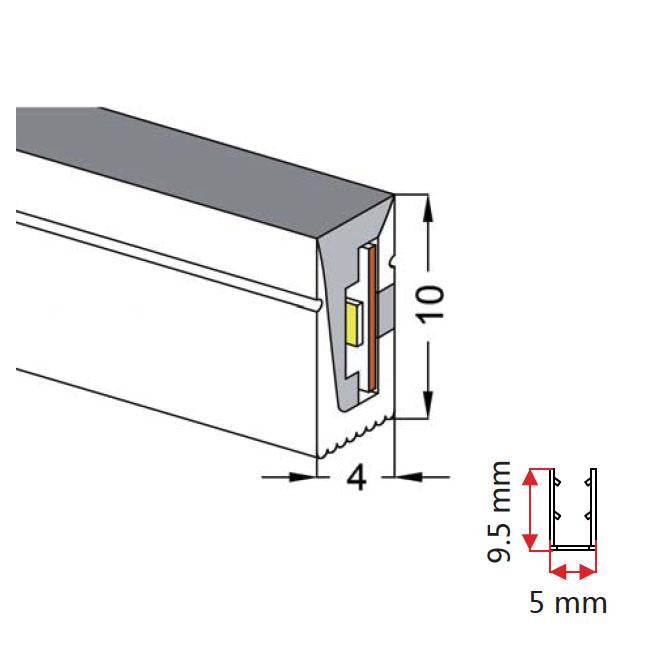

| PCB Width | : | 10 MM | 10MM |
| Maximum Recommended Length | : | 10 meters | 10 meters |

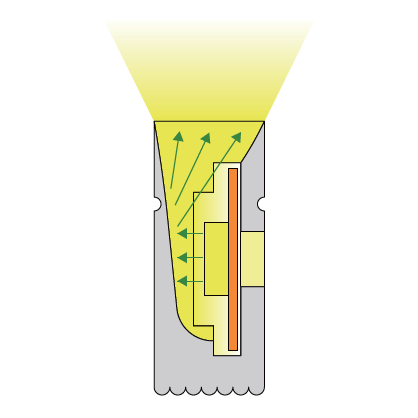

| Viewing Angle | : | 120 | 120 |
| Adhesion | : | VHB 5952 | VHB 5952 |
DOWNLOADS
-
Installation Guide (coming soon)
*nominal lifetime - dependent on installation location
