Slim NeonFlex LED is a super slim LED replacement that is excellent for being used in a variety of creative ways.. You asked for it and now it's here! Beautiful uniform look provides seamless, even output across a full 10 or 5 meters.

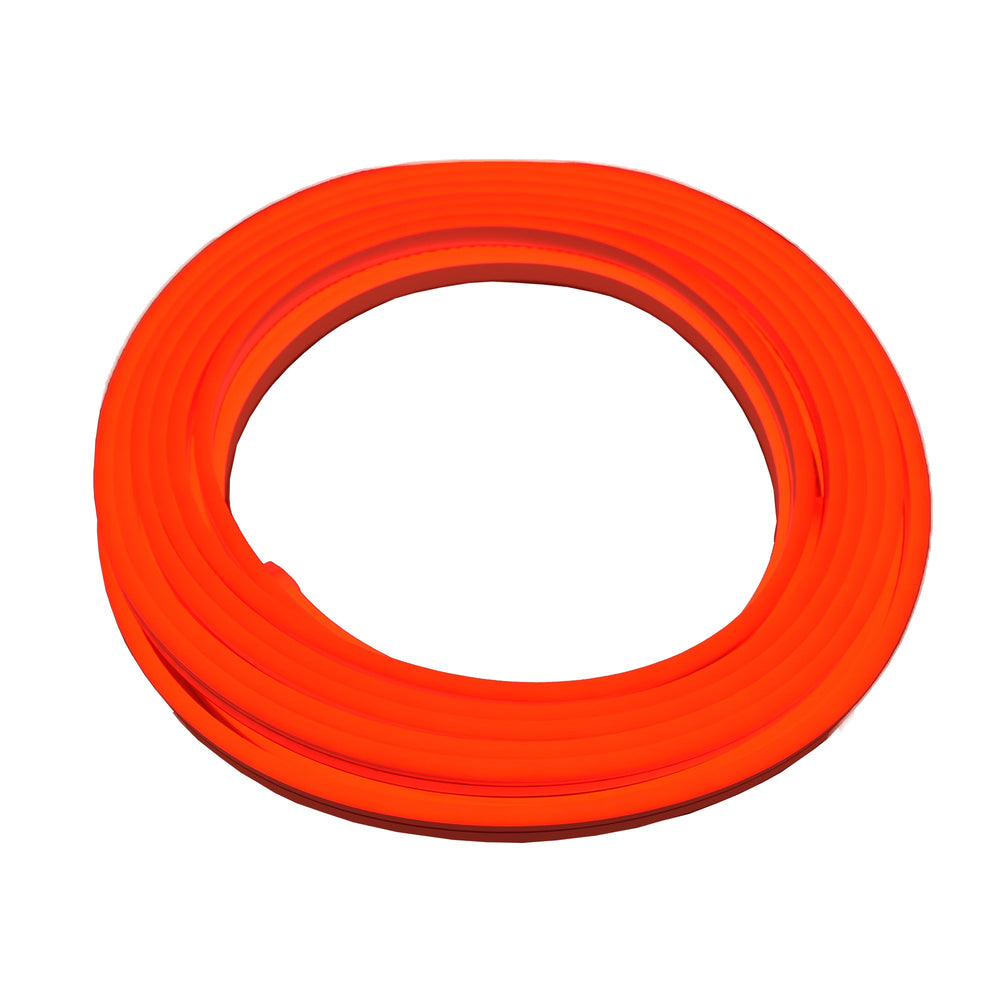

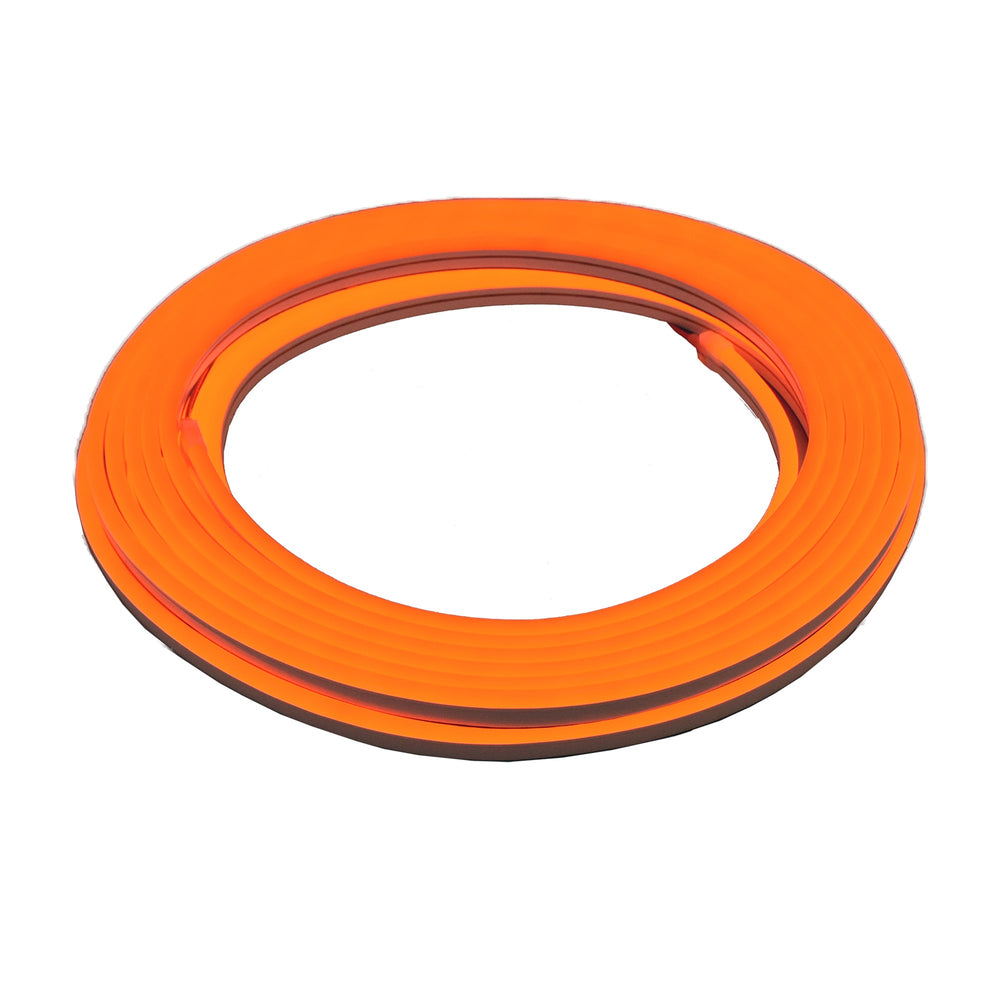

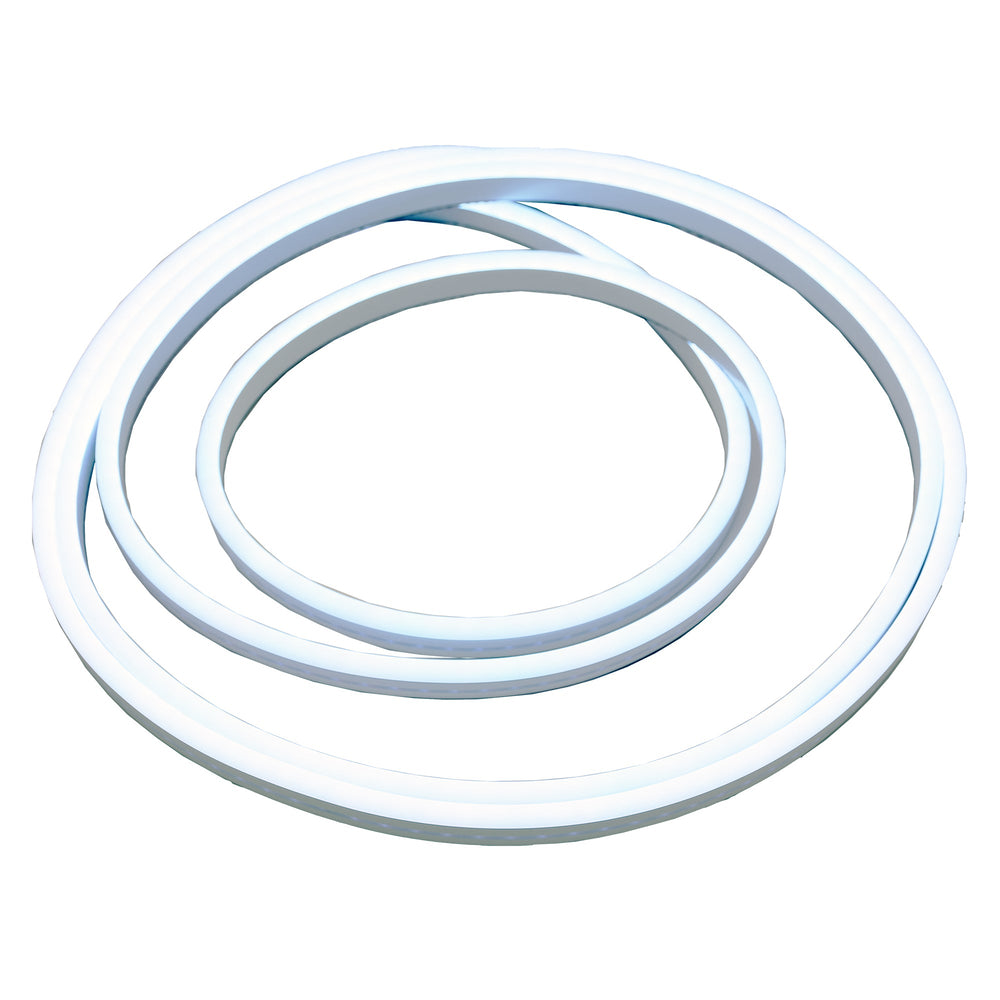

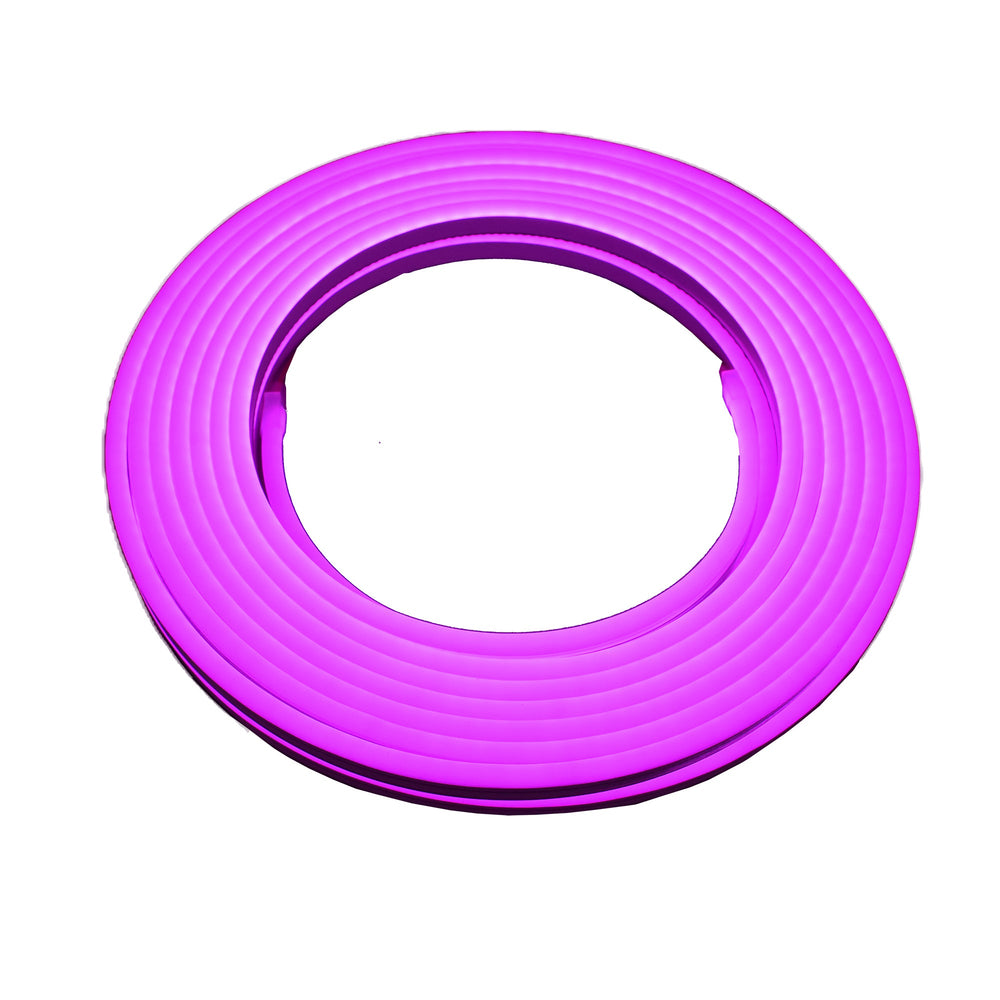

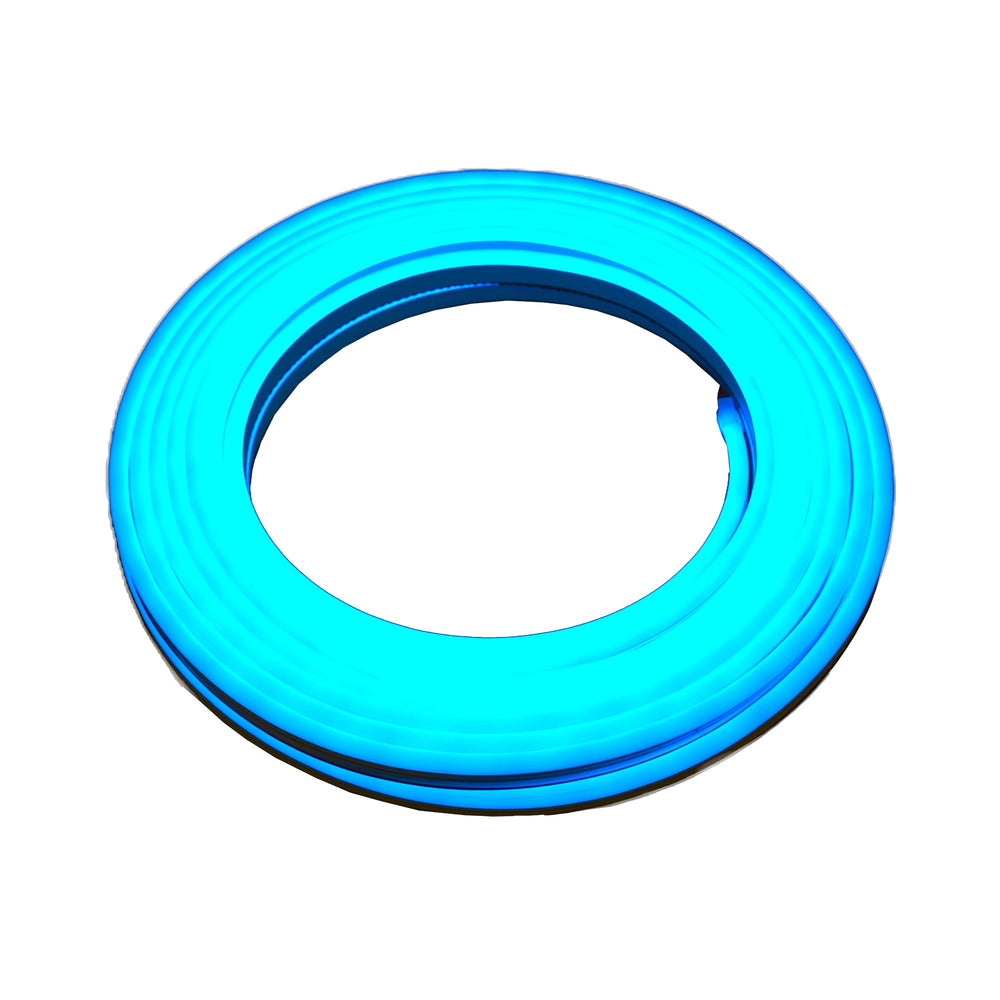

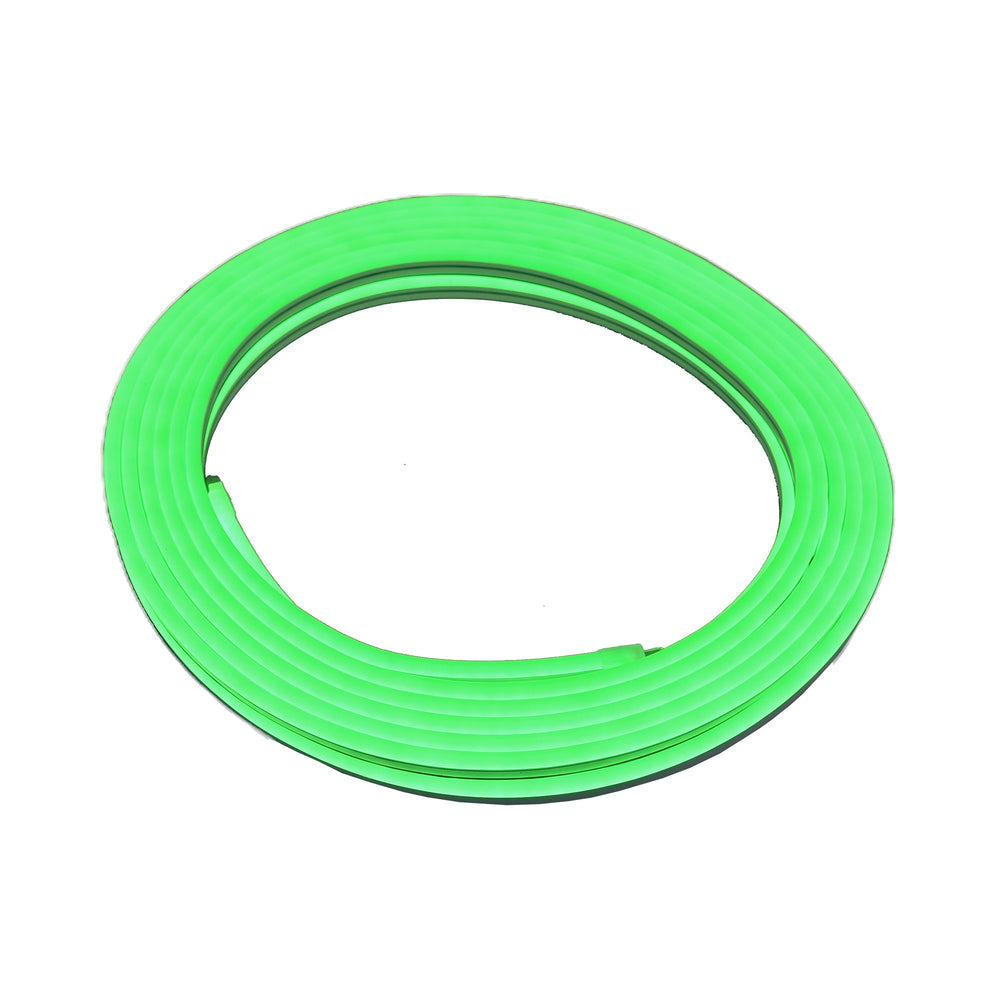

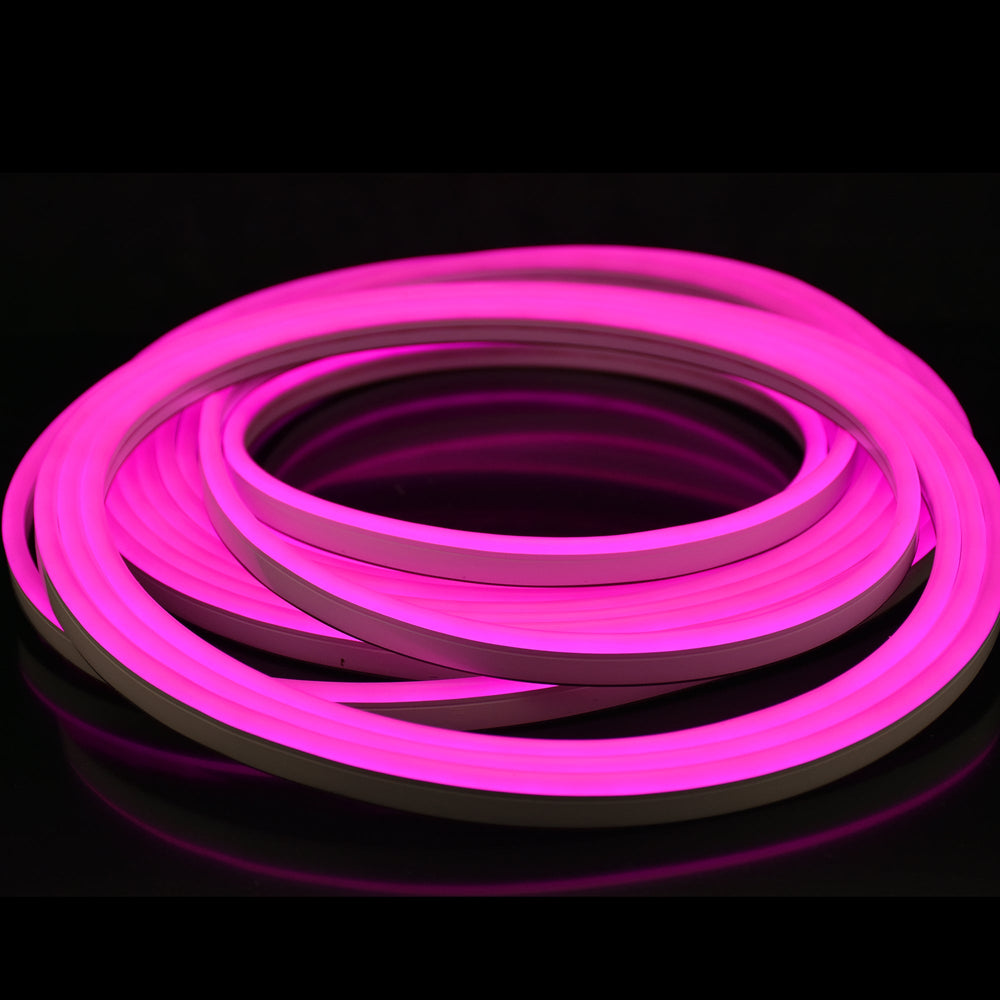

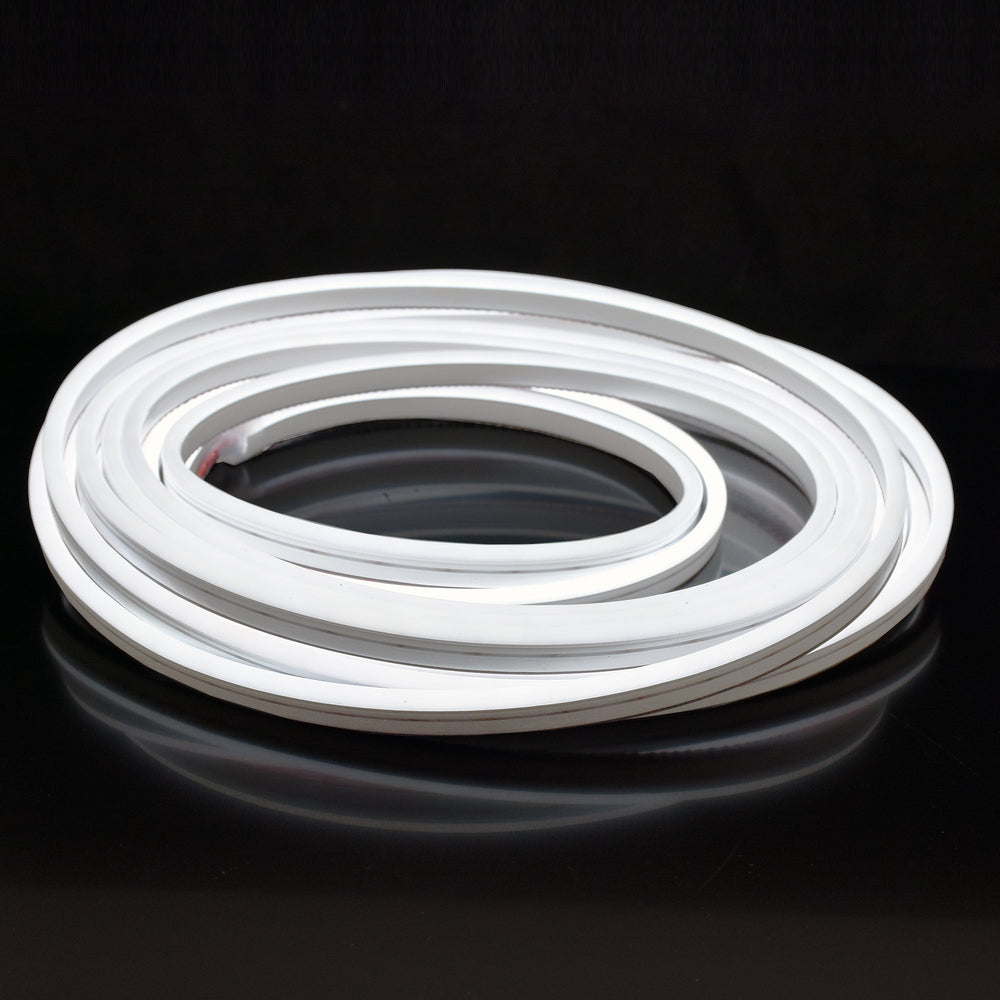

Available in 2400k and 6500k colour temperatures as well as solid colours including, Red, Green, Blue, Orange, Magenta, Cyan
Customized colours and lengths are available upon request. IP67 rated for outdoor use and 35,000 hour lifespan.
• Suitable for on-camera use, or anywhere a high-quality white light is required.
• High CRI full spectrum whites (Colour Rendering Index) >95. No green spike or colour spectrum deficiencies. • High tack VHB 5952 double sided tape ensures secure mounting in a variety of wet and dry environments
• Maximum recommended length in order to prevent line-loss is 10m (32') and must be powered from both ends.
• Controller, Power supply and Extension Cables sold separately
• Quantity Discounts available. Please call to inquire.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
Warning! Do not submerse in water for more than 30 minutes.

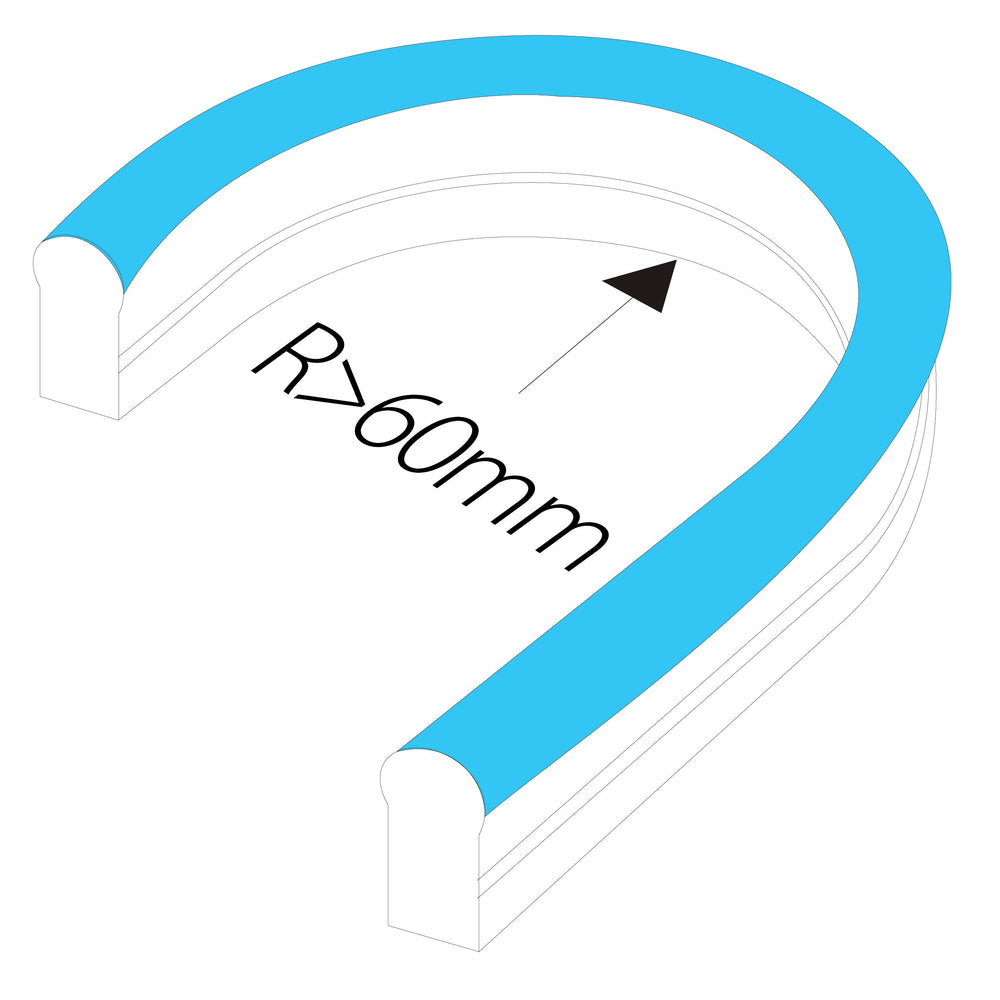

Warning! Minimum Bend Radius of 60mm
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Slim Neon Flex White | Slim Neon Flex Colours | Slim Neon Pixel RGB |
| Product Code | : |

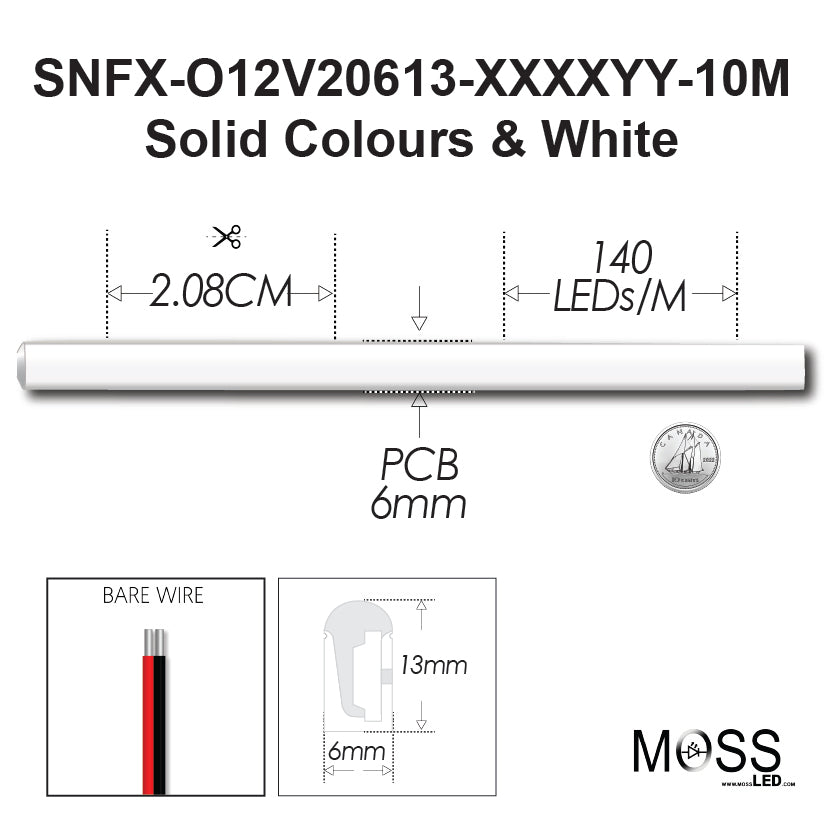

SNFX-O12V20613-XXXXYY-10M |
SNFX-O12V20613-XXXX-10M |

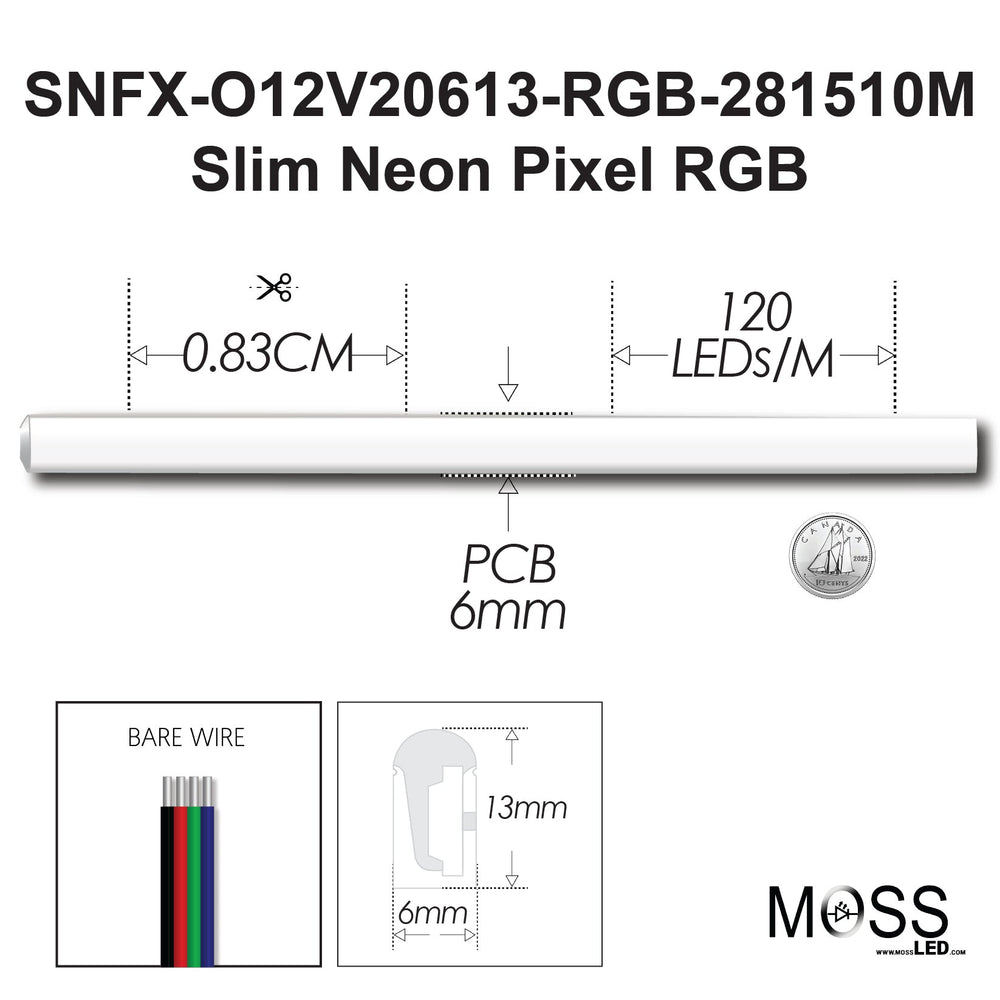

SNFX-O12V20613-RGB-281510M |
| CRI | : | ≥95 | N/A | |
| Kelvin | : |
2400k/2700k/3000k/ 4000k/5500k/6500k |

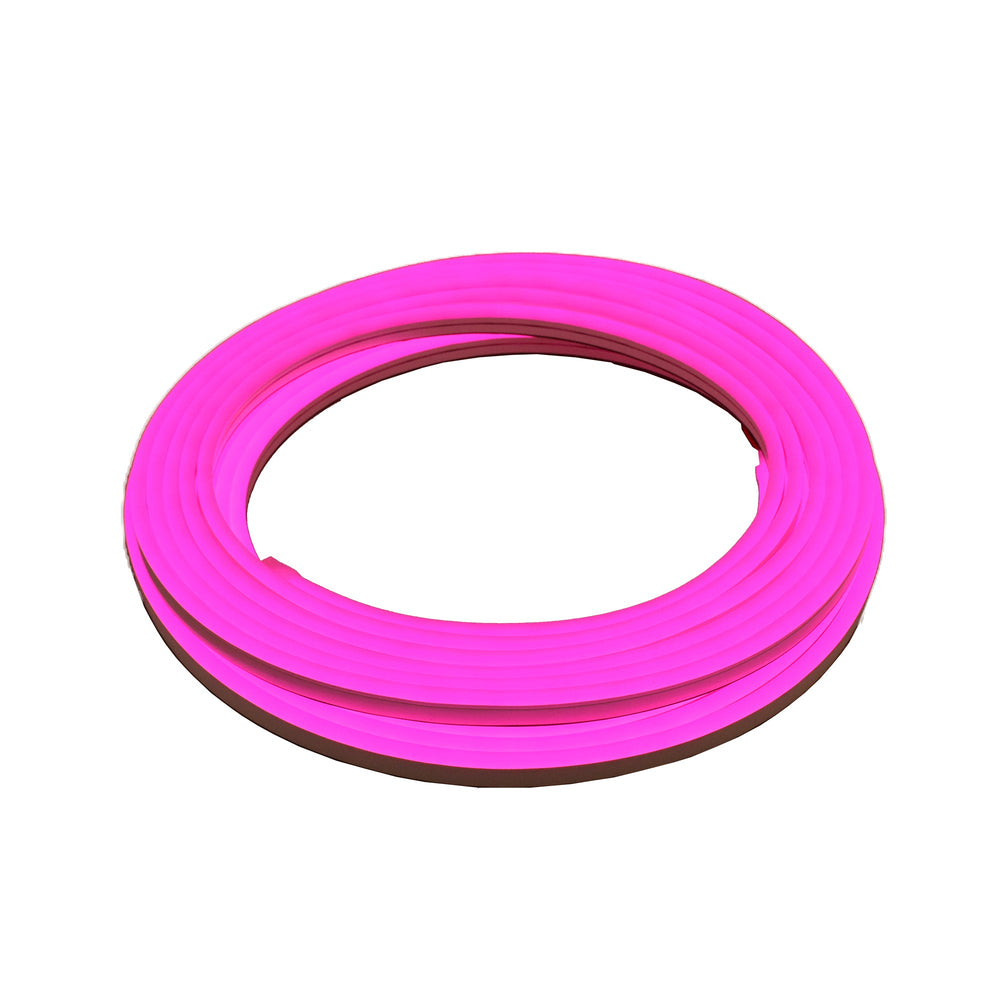

Red, Green, Blue, Cyan, Magenta, Orange, Pink |
|
| Colour Temp. OR Wavelength | : | White | Red (625nm) Green (520nm) Cyan (475nm) Magenta (687nm) Orange (605nm) | RGB Pixel |
| Current, Rating | : | 0.96 A/meter | 1.17 A/meter | |
| Voltage | : | 12 VDC | ||
| Wattage | : | 11.5 W/meter | 14 W/meter | |
| CC / CV | : | Constant Voltage | Constant Current | |
| IP Rating | : | IP67 | IP67 | IP67 |
| Lumens @ Full | : | 391 ~ 690 lm / meter | TBD | TBD |
| Lumen / Watt | : | 34 ~ 60 lm / watt | TBD | TBD |
| Lifetime* | : | 30,000 hours | ||
| Cutting Length | : | 2.08 CM | 0.83 CM | |
| LED Quantity | : | 144 LED / meter | 120 LED / meter | |
| Number of Contacts | : | 2 |
4 | |
| LED Type | : | 2835 | 5050 | |
| Copper Quantity (Ounces) | : | 3 | ||
| Temperature, Operating, Maximum (Celsius) | : | 70°C | ||
| Temperature, Operating, Minimum (Celsius) | : | -40°C | ||
| Agency Ratings | : | UL E489028, CE, RoHS | ||

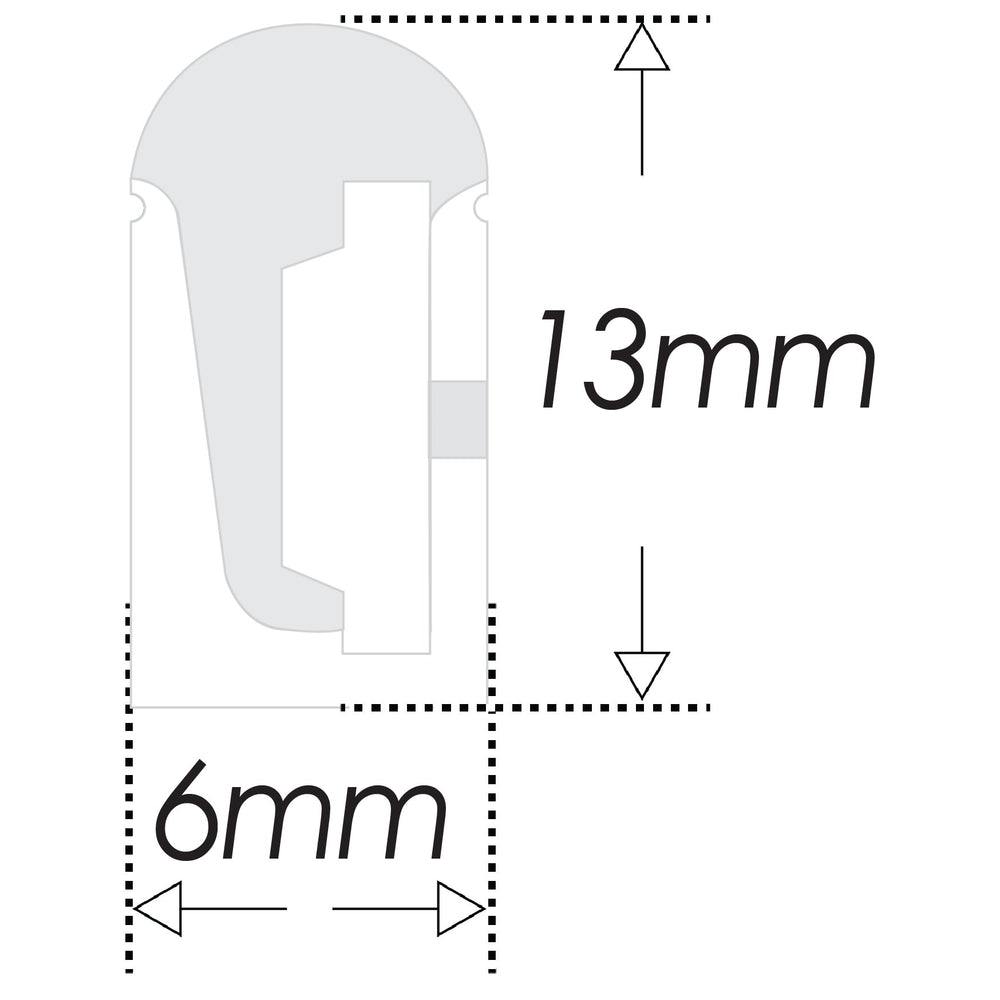

| PCB Width | : | 10MM | ||
| Maximum Recommended Length | : | 10 meters (powered from both ends) | 5 meters | |
| Viewing Angle | : | 120 | 120 | |
| Adhesion | : | 3M VHB 5952 | VHB 5952 | |
*nominal lifetime - dependent on installation location
