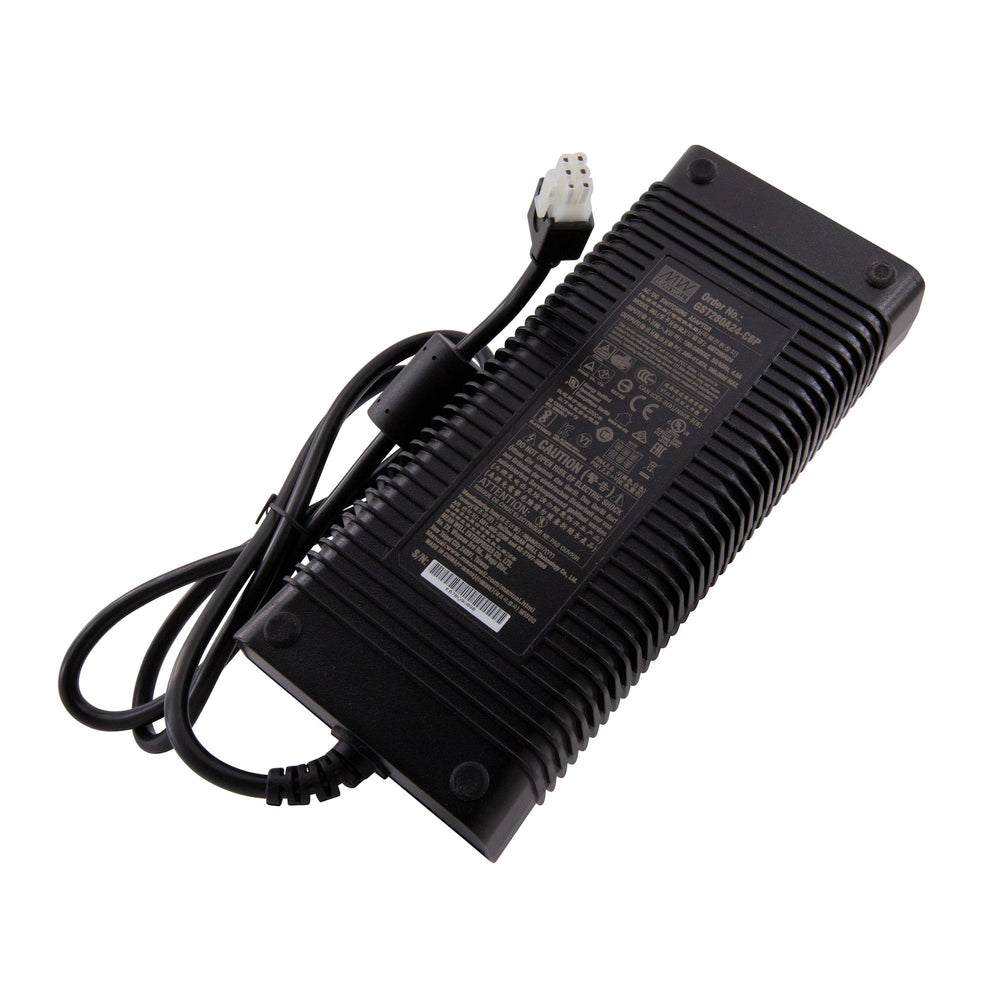

Extremely reliable and robust medical-grade power supply. Perfect for on-camera and constant-on use with our FlexLED Tape and any DC LED product. Class I power unit ensures short-circuit, overload, over-voltage, and over temperature protection. Powerful, and reliable are the cornerstones of the GST line of power supplies from Mean Well.
- Output Various Wattages
- Class I
- Fanless Design
- UL Listed, suitable for dry & damp locations
- 5 year warranty
- 91% high efficiency
- No Mounting Holes
- 3 Year Warranty
SPECIFICATIONS
| Voltage (V) | : | 12V DC | 24V DC |
| Model | : | GST280A12-C6P | GST280A24-C6P |
| Current (A) | : | 12 A | 3.75 A |
| Output Power (W) | : | 252 W | 280 W |
| Agency Approvals | : | Please Refer to Specification Sheet | Please Refer to Specification Sheet |
| Size (MM) | : | 220MM X 95MM X 46MM | 220MM X 95MM X 46MM |
| Ripple & Noise (mV p-p) | : | 120 | 200 |
| Load Regulation () | : | +-5% | +-3% |
| Line Regulation () | : | +-1% | +-1% |
| Efficiency | : | 89.5% | 93% |
| Frequency Range | : | 47 ~ 63 Hz | 47 ~ 63 Hz |
| Universal AC input | : | 88 ~ 264VAC 120 ~ 370VDC | 88 ~ 264VAC 120 ~ 370VDC |
| Leakage current (120VAC) | : | <1.5 mA | < 1.5mA |
| Protections: | : | short circuit, over voltage, over current, over temperature | short circuit, over voltage, over current, over temperature |

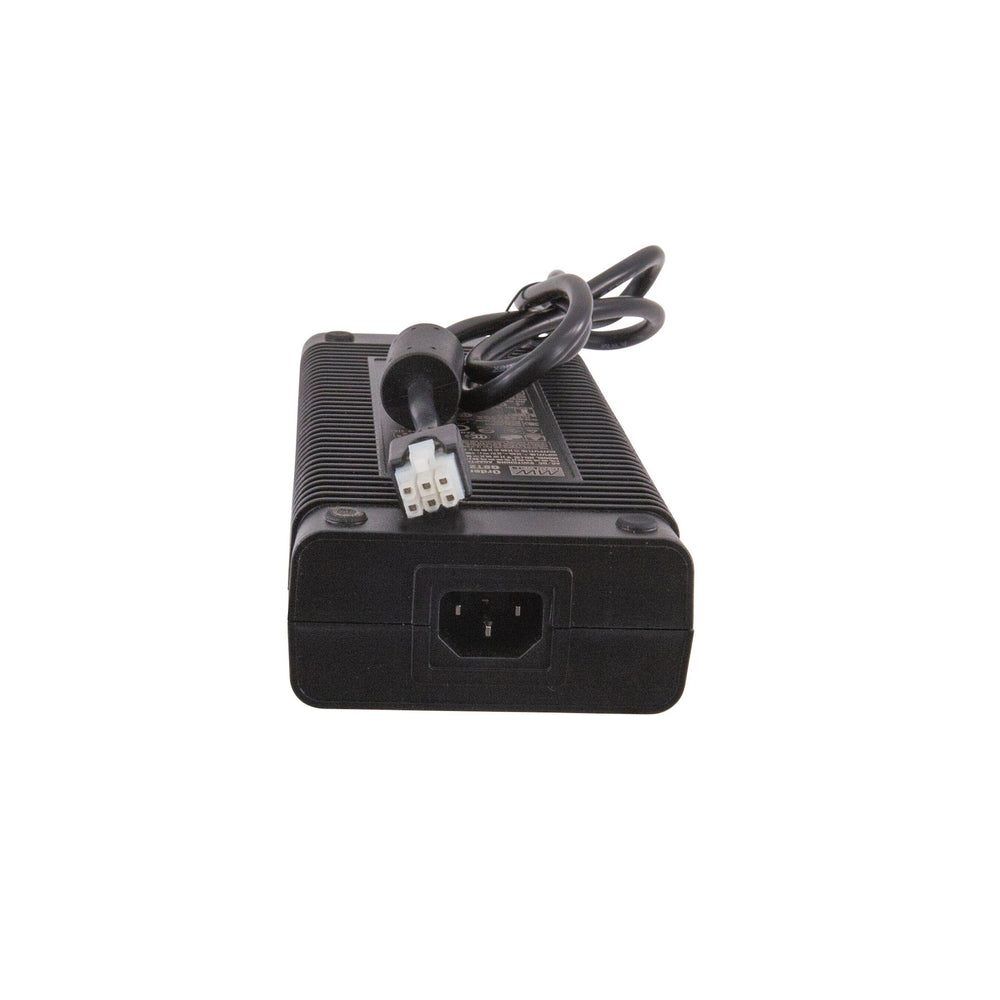

| AC Input | : | IEC320-C14 | IEC320-C14 |
| Housing | : | Fully enclosed plastic case | Fully enclosed plastic case |
| Ingress Protection Rating | : | Indoor Use Only | Indoor Use Only |
| Class | : | Class I power (with FG) | Class I power (with FG) |
| Indicator | : | yes | yes |
| Standby Power Consumption | : | < 0.1 watts | < 0.1 watts |
| Output Connector Type | : | C6P | C6P |
| Output Connector Diameter | : | N/A | N/A |
| Output Polarity | : | PIN 1,2,3 +Vo & Pin 4,5,6 -Vo | PIN 1,2,3 +Vo & Pin 4,5,6 -Vo |
| Product Type | : | AC to DC Power Supply | AC to DC Power Supply |
| MFR Product Family | : | GST | GST |
| Operating Temperature | : | -40C to 85C | -40C to 85C |
| Power Supply Color | : | Black | Black |
