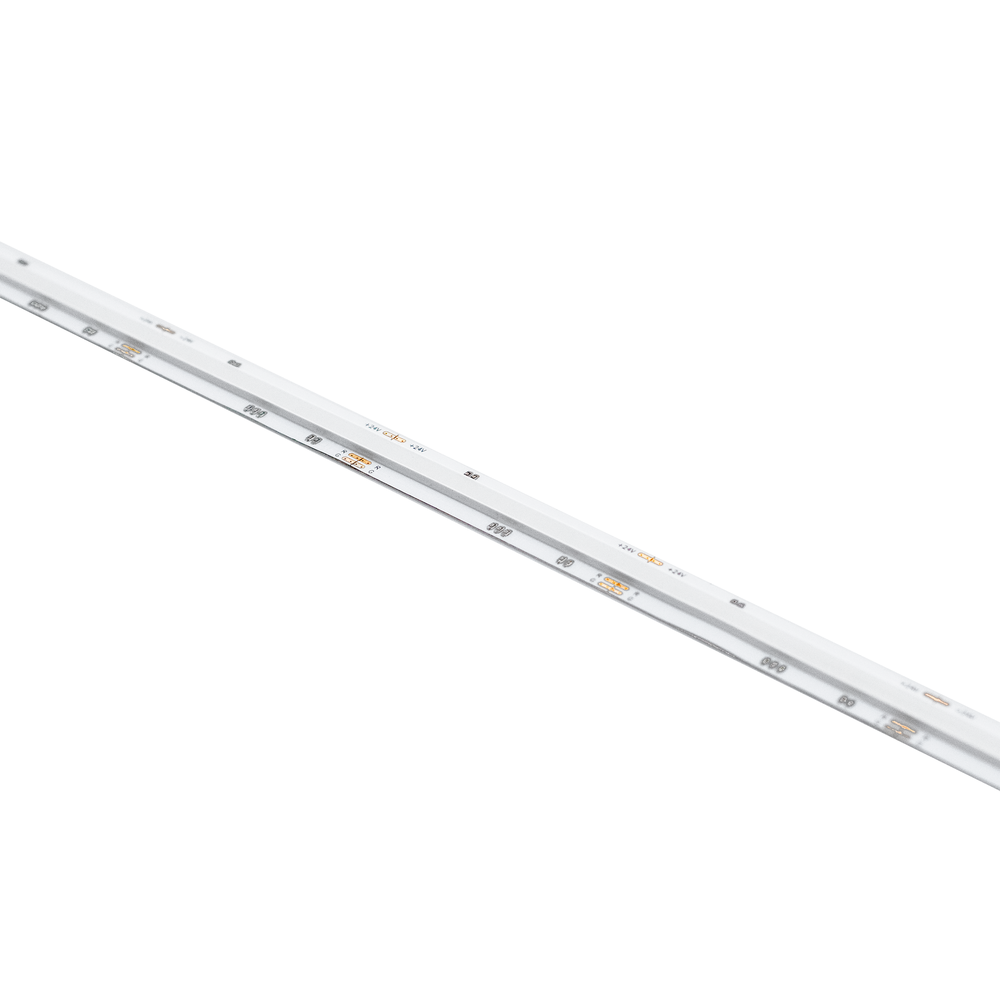

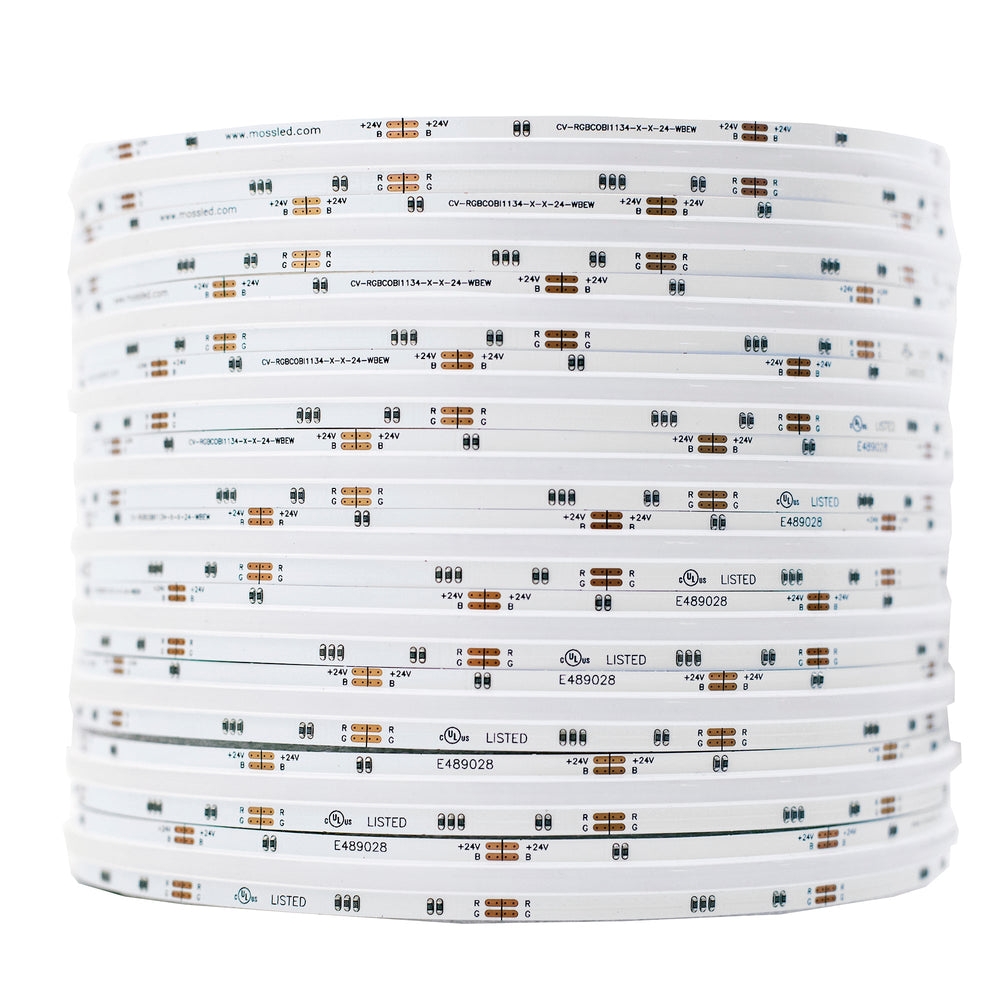

SoftFLEX LED 1134 RGB 24V

1134 LED/Meter SoftFlex LED Tape in 24V DC (5 meter lengths)

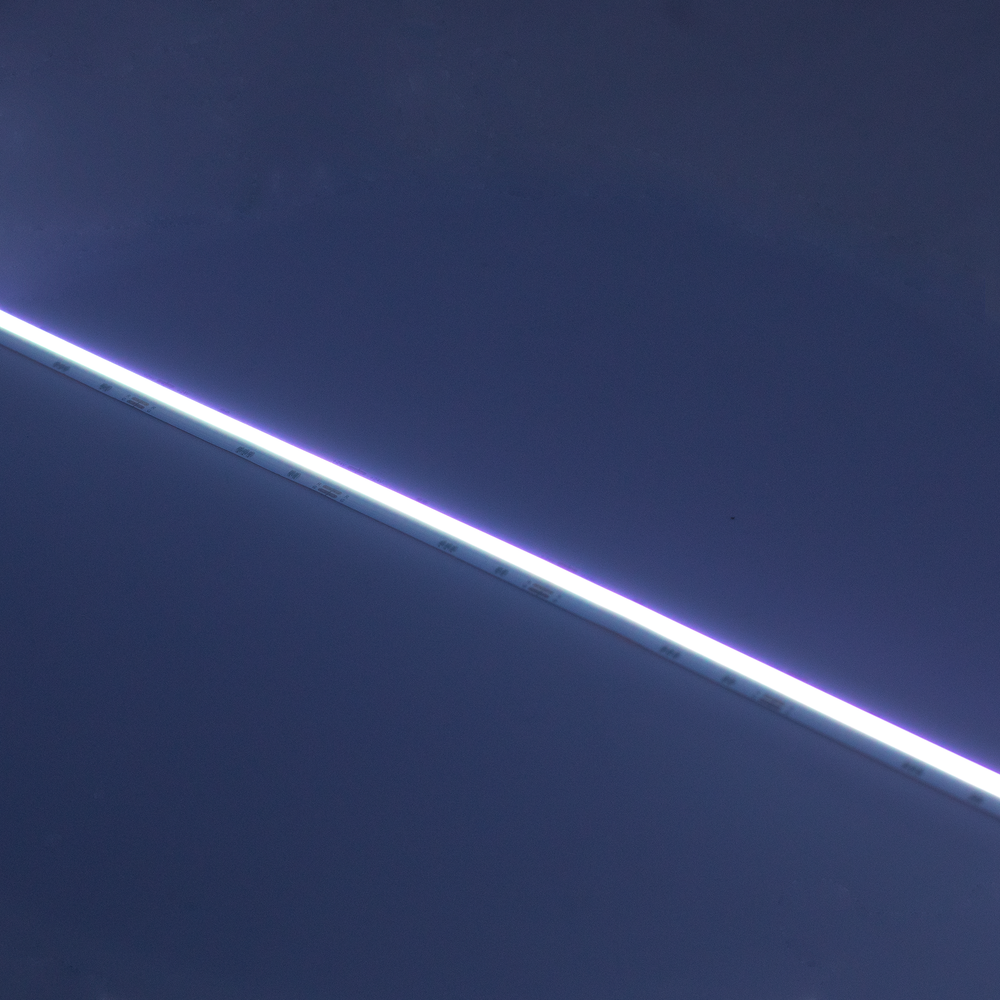

Our SoftFLEX (COB) series of flexible LED creates a seamless, diffused, soft output without the ability to see any pixels unlike our traditional FlexLED strips. The innovative design does not show any hot spots, or dark spots making it ideal in locations where you may be able to see the LED or its reflection. The SoftFLEX 1134 RGB is only 12MM in width which makes it suitable for many locations. Using chip-on-board (COB) technology with a bounding-box the phosphor coating also acts as the diffuser creating pixel-free light output. The 1134 RGB is unique in the SoftFLEX family as it arranges the Red, Green, and Blue pixels in a side-by-side format which allows for a row of RGB pixels every 2.64MM.

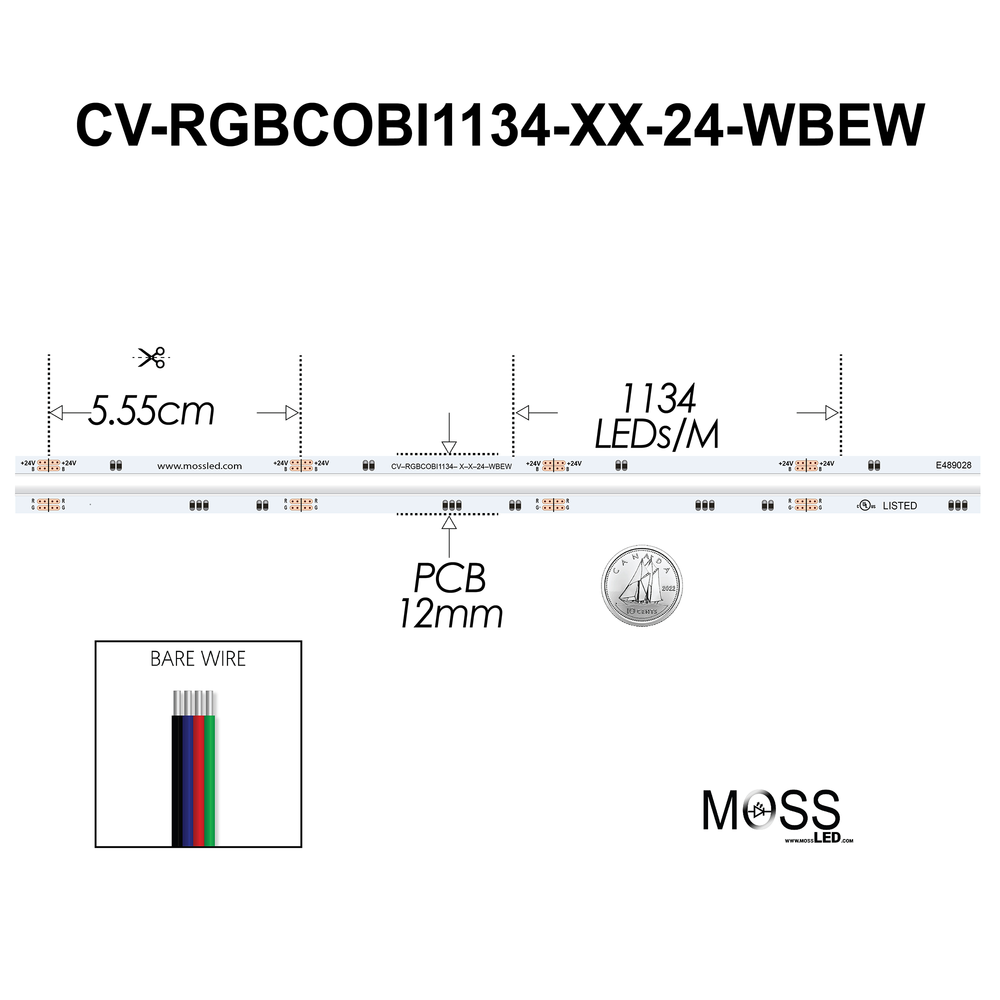

This high-density creates a seamless output and at the same time providing convenient solder pads on top of the PCB. Reliable, high efficacy and high heat dissipation ensuring a long life-span. Cuttable every 5.55CM (2.19”) the SoftFLEX 1134 RGB is extremely customizable and is a perfect solution for beautiful colour-blended RGB lighting challenges.

Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick. Waterproof must be mounted using silicone (not provided).

Soldering Guidelines: Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

Controller, power supply and extension cables sold separately. Quantity discounts and custom R,G,B wavelengths available. Please call 1.800.924.1585 or email info@mossled.com to inquire.

Important: due to the high LED density, cutting exactly on the cutting lines (+/-0.2mm) is critical, otherwise you may damage the LED segment.

SPECIFICATIONS - INDOOR PRODUCT

DOWNLOADS

1. Specification Sheet

2. UL Certificate of Compliance
3.  Download IES Files - SoftFLEX LED 1134 RGB 24V
