630 LED/Meter SoftFlex LED Tape in 24V DC (5 meter lengths)

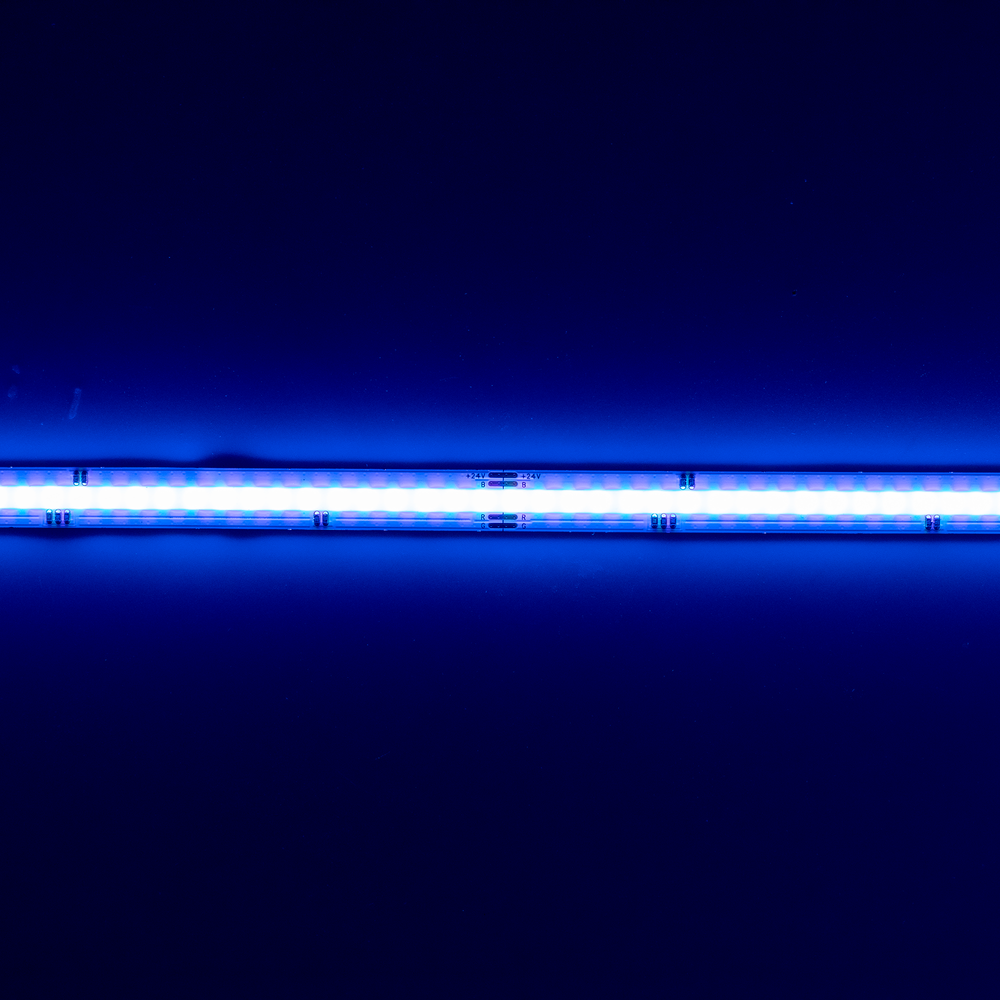

Our SoftFLEX (COB) series of flexible LED creates a seamless, diffused, soft output without the ability to see individual pixels unlike our traditional FlexLED strips. The innovative design shows minimal hot spots & dark spots making it ideal in locations where you may be able to see the LED or its reflection. The SoftFLEX 630 RGB is only 10MM in width which makes it suitable for narrow locations. Using chip-on-board (COB) technology the phosphor coating also acts as the diffuser creating pixel-free light output.

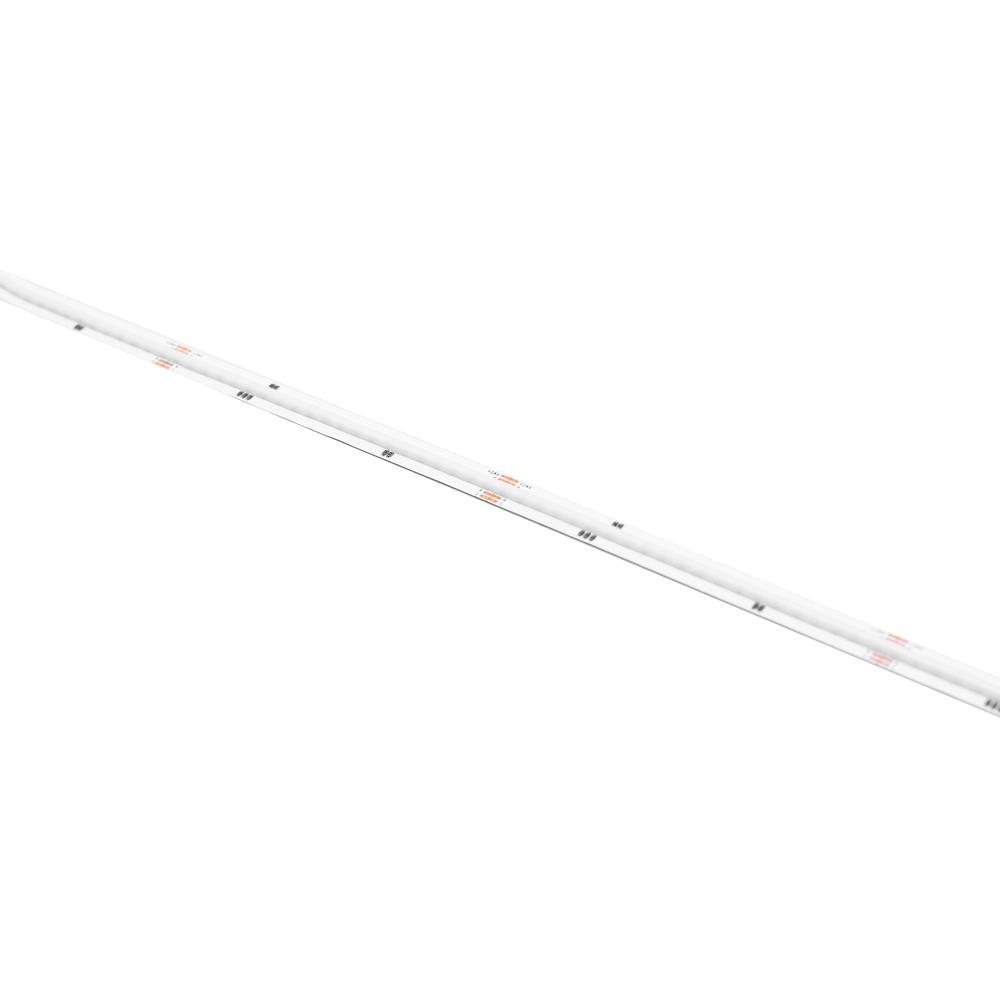

The 630 RGB is unique in the SoftFLEX family as it arranges the Red, Green, and Blue pixels in a linear format which allows for a narrow 10MM width and at the same time providing convenient solder pads on top of the PCB. For comparison, our SoftFLEX LED 1134 RGB 24V arranges the Red, Green, and Blue pixels in a parallel format. The two different designs result in a very different output despite both being RGB.
Reliable, high efficacy and high heat dissipation ensuring a long life-span.

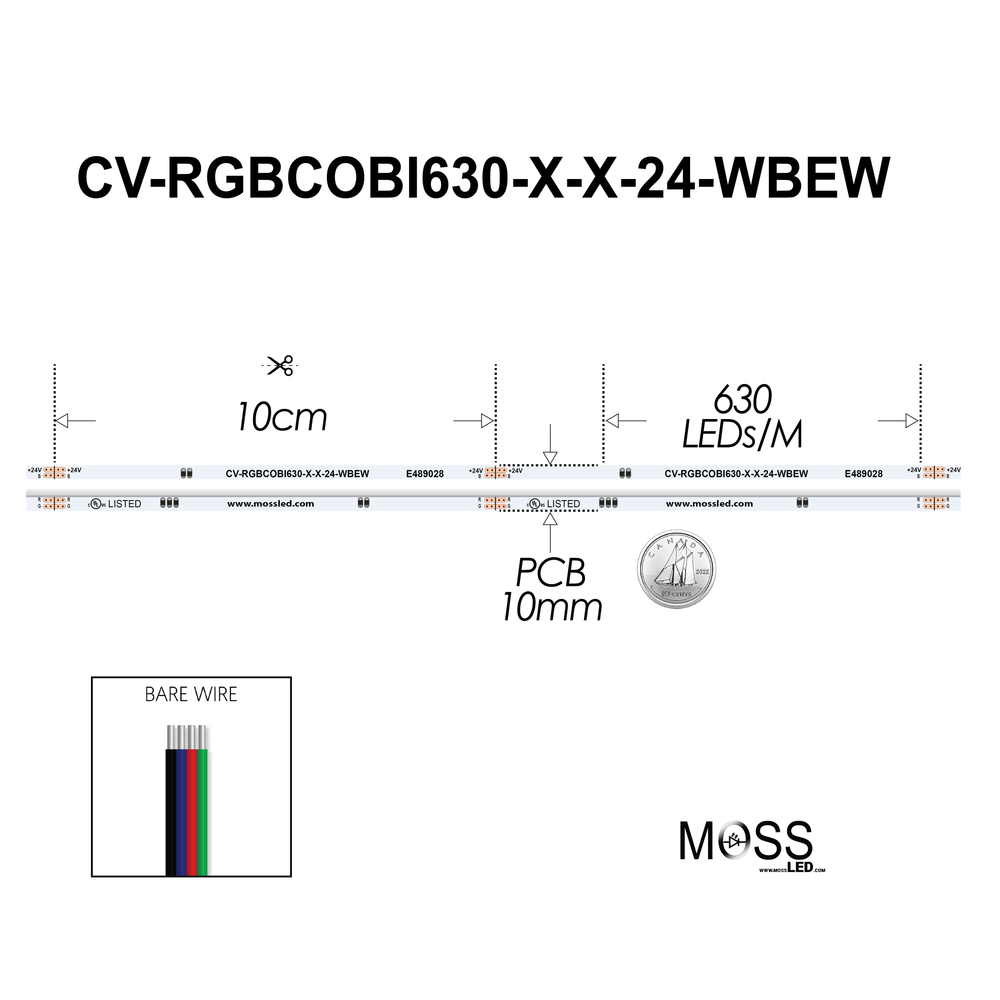

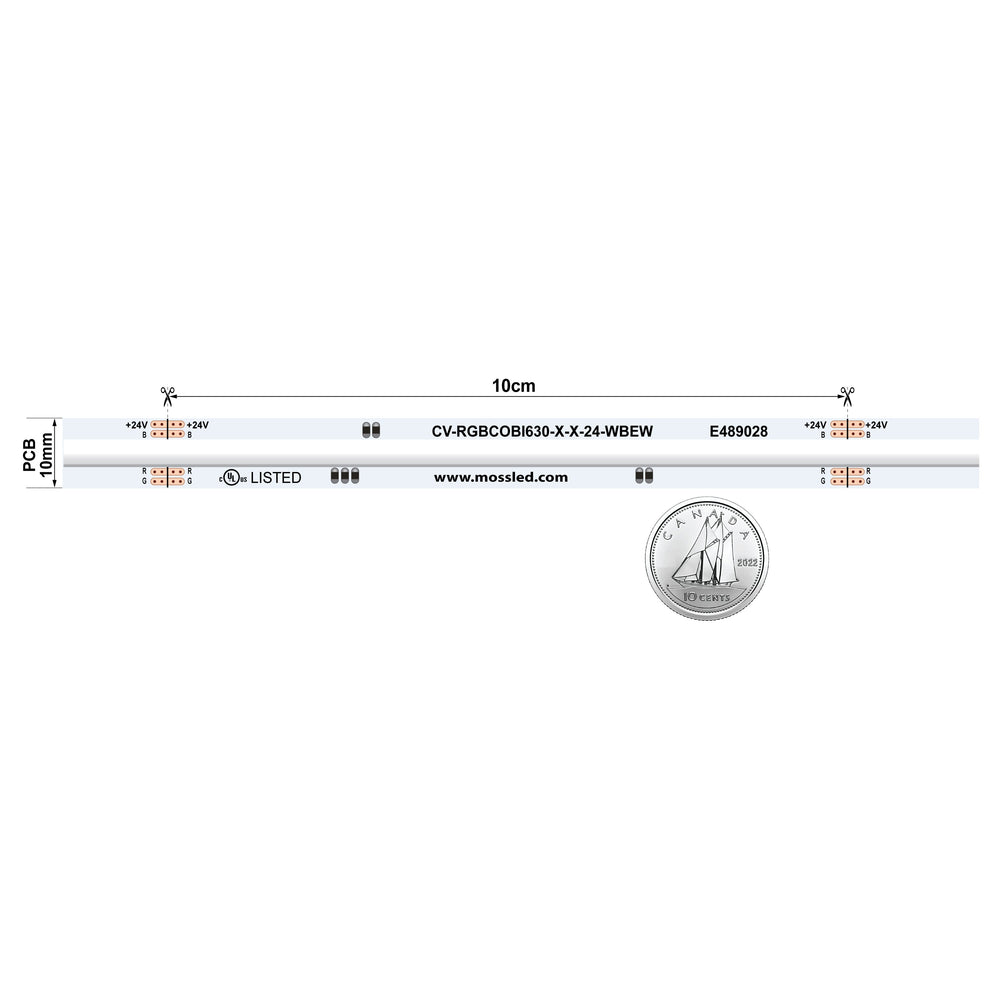

Cuttable every 10CM (3.94”) the SoftFLEX 528 is extremely customizable and is a perfect solution for countless lighting challenges. I
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick. Waterproof must be mounted using silicone (not provided).
Soldering Guidelines: Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
Controller, power supply and extension cables sold separately. Quantity discounts and custom color temperatures available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB Colour Changing 630 |
| Product Code | : | CV-RGBCOBI630-X-X-24-W |
| CRI | : | N/W |
| Kelvin | : | RGB |
| PCB Color | : | White |
| Current, Rating | : | 0.375 A / meter |
| Voltage | : | 24 VDC |
| Wattage Per Meter | : | 9W |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP21 |
| Lumens @ Full per meter | : | 465 lm |
| Lumen / Watt | : | 51 lm / w |
| Lifetime* | : | 40,000 hours |
| Cutting Length | : | 10 CM |
| LED Quantity per meter | : | 630 chips |
| Number of Contacts | : | 4 |
| LED Type | : | COB |
| Copper Quantity (ounce) | : | 3 |
| Temperature, Operating, Maximum | : | 70° C |
| Temperature, Operating, Minimum | : | -40° C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 10MM (3.94") |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120° |
| Adhesion | : | 3M 55280 |
DOWNLOADS
Specification Sheet
UL Certificate of Compliance
Download IES Files - SoftFLEX LED 630 RGB 24V*nominal lifetime - dependent on installation location
