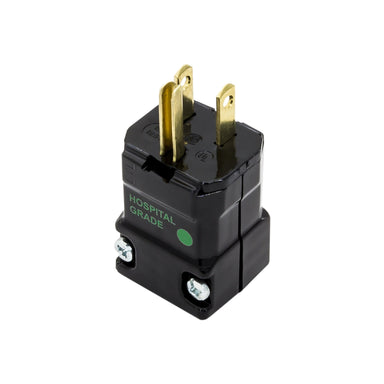

Rugged hospital grade edison plug designed for being attached to our installation-grade family of power supplies or anywhere a standard wall outlet plug is required.

Hospital Grade Valise Plug, 15 A Amperage, 125 V Voltage, White or Black Color, 0.3 in. to 0.660 in. Cord

Industry-standard 15A Hubbell Connector
Straight Blade Commercial Specification Grade and Commercial Hospital Grade GFCI Duplex Receptacles
Nylon material housing. 18-12 AWG copper stranded or solid conductor terminal accommodation.
HBL8115V (White)
HBL8115VB (Black)

SPECIFICATIONS

Agency Approvals	:	UL, CSA
Amperage	:	15 A
Brand/Series	:	Valise Series
Color	:	White / Black
Contact Type	:	Pin
Current, Rating	:	15 A A
Diameter, Cord	:	0.3 to 0.66
Dielectric Voltage	:	2000 V (Min.)
Flammability	:	UL 94V2
Grade	:	Hospital
IP Rating	:	IP20
Material, Blades Contact	:	Brass
Material, Contact	:	Brass
Material, Ground Screw	:	Stainless Steel
Material, Housing	:	Nylon
Material, Terminal Screw	:	Stainless Steel
Material, Wire Clamps	:	Steel
NEMA Type	:	5-15P
Number of Contacts	:	3
Number of Poles	:	2 Pole
Primary Type	:	Straight Blade
Temperature, Operating, Maximum	:	75 C
Temperature, Operating, Minimum	:	-40 C
Terminal, Accommodation	:	18-12 AWG Copper Stranded or Solid Conductor
Termination	:	Screw
Type	:	Cable Plug
Voltage, Rating	:	125 V V
Weight	:	0.15 lbs.
Wire, AWG	:	#18-#12
UPC	:	78358501908
