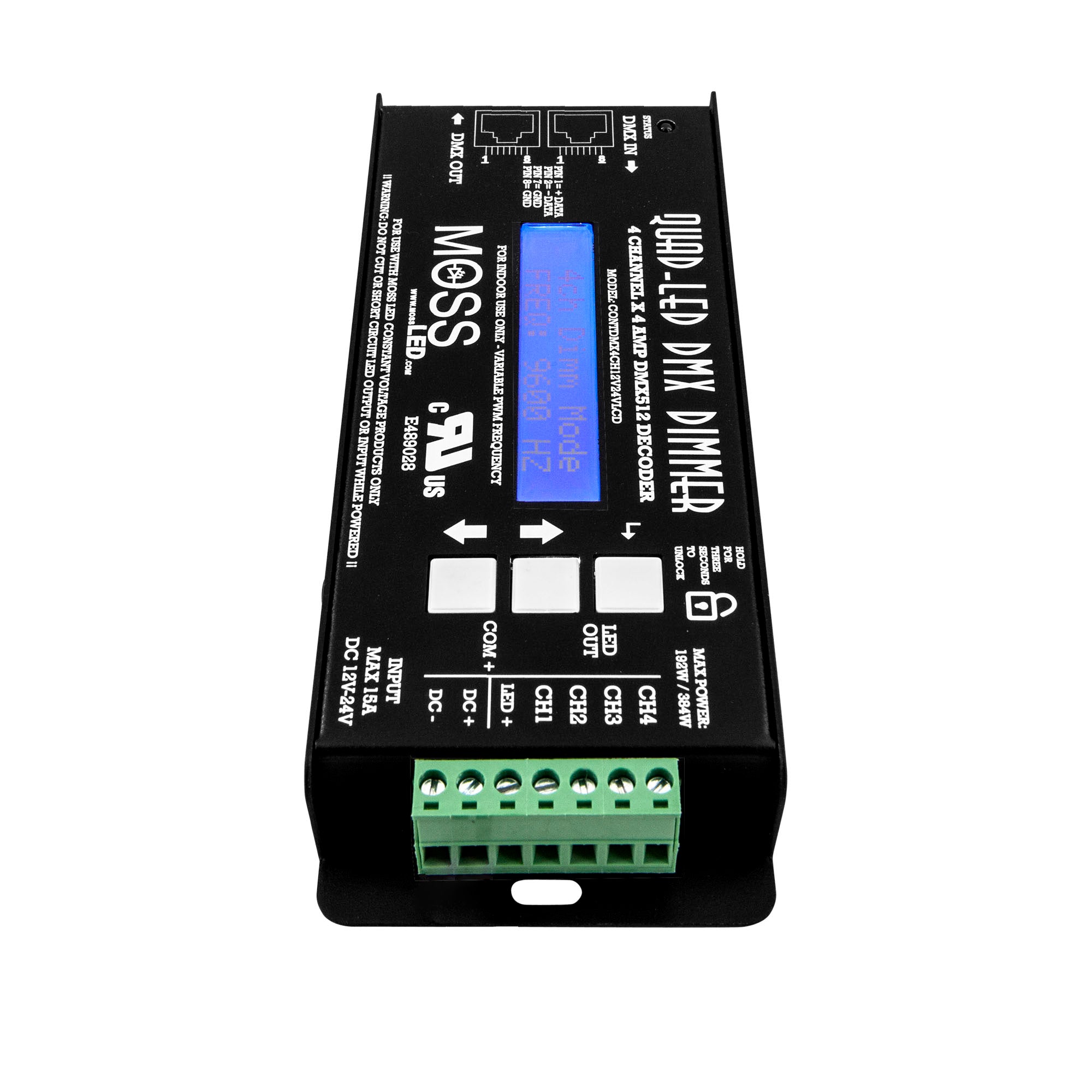

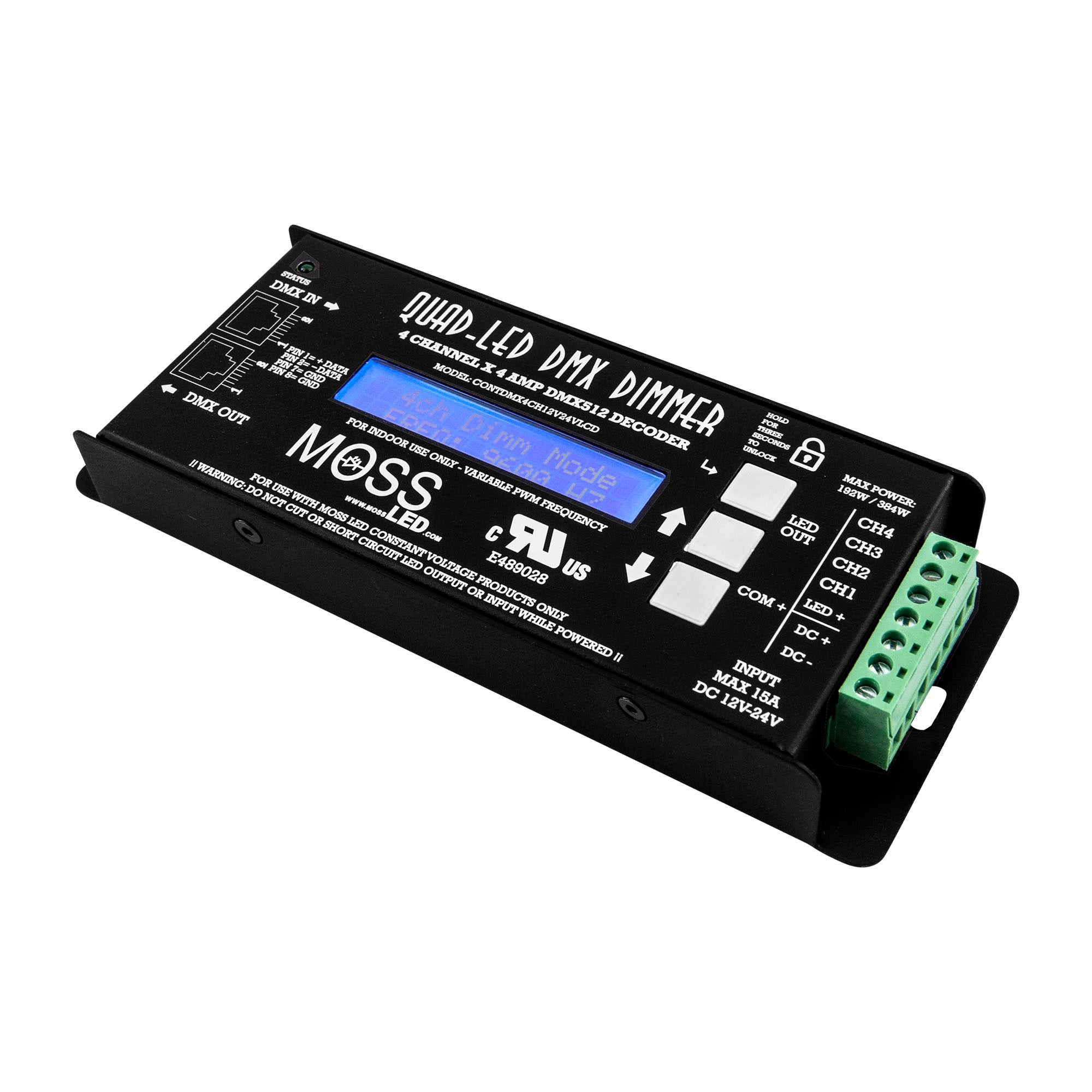

The Quad-LED DMX Dimmer is a compact, user-friendly 4-channel controller, designed for seamless integration with FlexLED Tape and Modules. With manual mode, variable frequency settings, and an isolated DMX input, it offers precise dimming control for film, television, and architectural applications. The latest firmware includes a locking feature that can be deactivated by holding the enter key for 3 seconds, ensuring secure operation.
Key Features:
- 4-Channel DMX Dimming – Converts DMX-512/1990 signals into four independent dimmable outputs.
- Wide Compatibility – Works with RGBA, RGBW, RGB, Bi-Colour, and White FlexLED Tape.

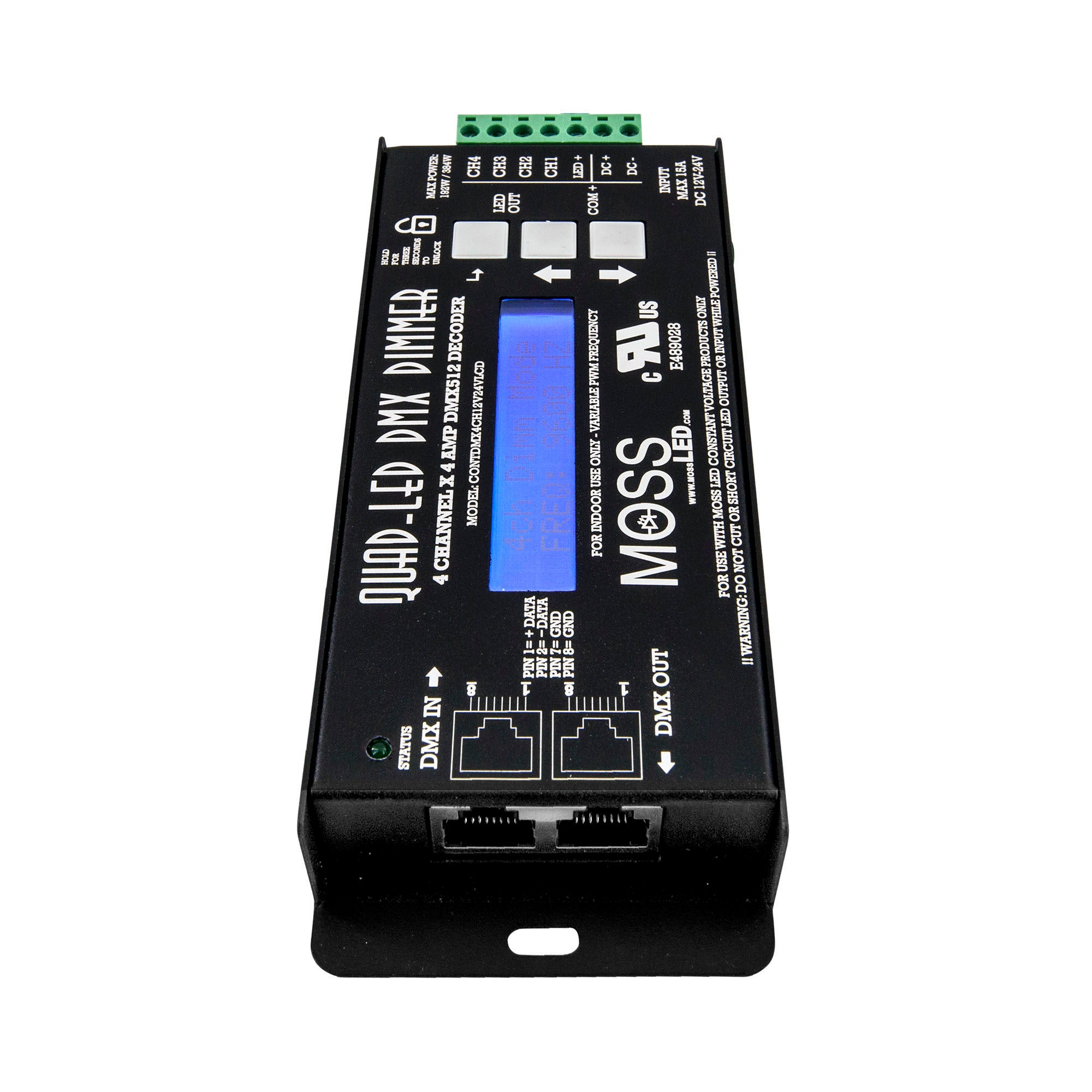

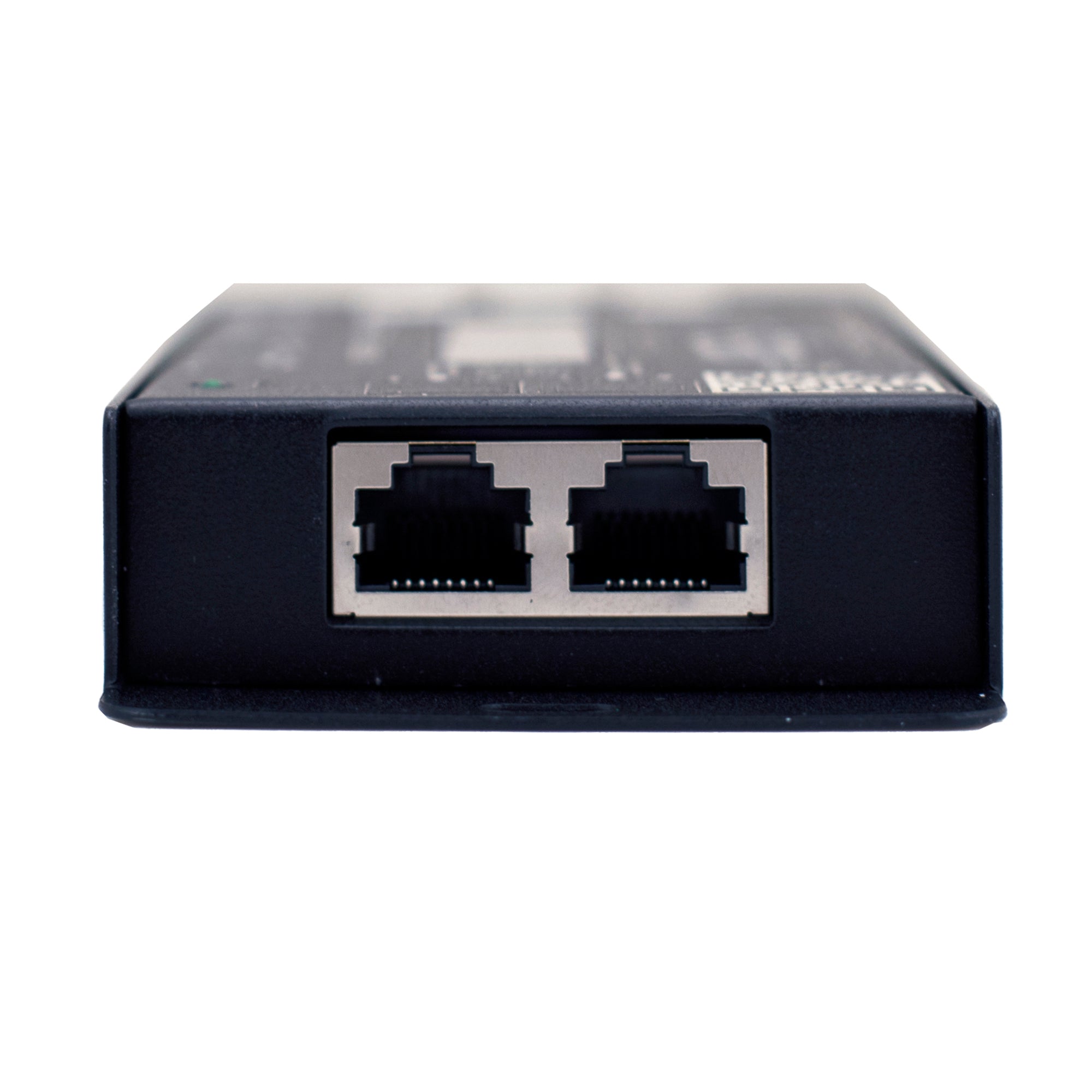

- Industry-Standard DMX Connectivity – Uses RJ45 Ethernet for seamless control via lighting consoles or software.
- LCD Interface & Manual Mode – Provides easy DMX addressing, test control, and frequency adjustments.
- Isolated DMX Input – Ensures stable and interference-free signal transmission.
- Firmware Locking Feature – Prevents accidental changes; hold enter for 3 seconds to deactivate.
Need a custom solution? Contact us today!
Technical Specifications
|
Output Current Non UL / (UL Approved) |
: |
4 CH @ 5A/CH = MAX 20A (MAX 15A for UL Standards) |
|
Output Power Non-UL / (UL Approved) |
: |
240W @ 12V / 480W @ 24V (MAX 180W @ 12V / 360W @ 24V for UL Standards) |
|
Supply Voltage |
: |
12V-24V DC |
|
Size (inches) |
: |
L 6.6” x W 2.5” x H 0.8” |
|
Working Temperature |
: |
0°C to + 70 °C |
|
Bit Rate |
: |
8 Bit |
|
Weight |
: |
300g |
|
IP Rating |
: |
IP40 |
|
PWM Frequency (variable) |
: |
2.4kHz / 9.6kHz / 20kHz / 30kHz |
| Agency Ratings | : | UL E489028 |
UL Certificate of Compliance
