IllumaDIM™ 6 – Advanced 6-Channel DMX Dimmer with Smart Features
The IllumaDIM™ 6 DMX Dimmer is the flagship model of the IllumaDIM™ series, offering unmatched reliability, precision, and smart control features. Designed for on-camera use, theatrical productions, and high-precision dimming applications, it features Protect-A-Fet™ 2.0 for enhanced short-circuit protection and IllumaSync™ technology for batch updating multiple controllers simultaneously. With flicker-free dimming, advanced RDM capabilities, and an intuitive OLED display, the IllumaDIM™ 6 is the most advanced standalone DMX decoder available today. With Protect-A-Fet 2.0 technology, when a short circuit happens, the IllumaDIM will tell you which channel the short has occurred on to help make troubleshooting a breeze. It also allows you to reset the internal fuses remotely via RDM.
Key Features:

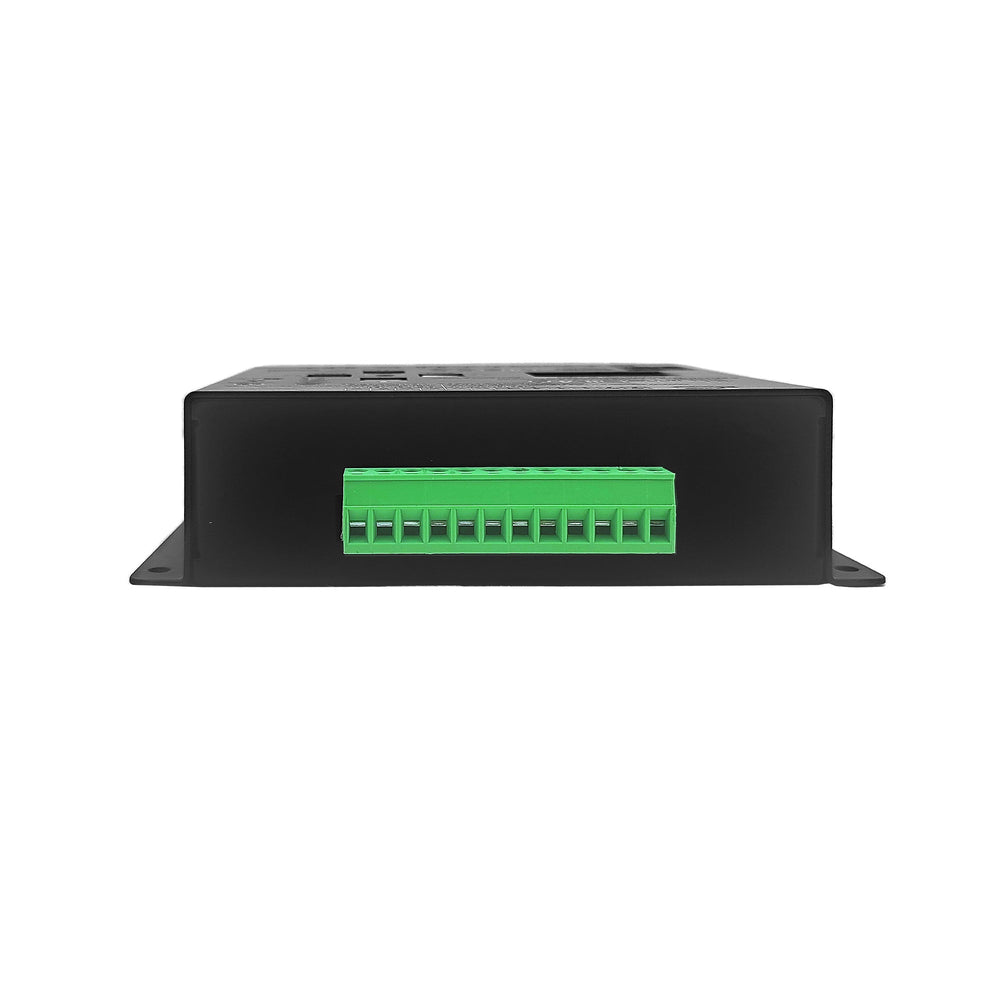

- 6-Channel DMX Dimming – Converts DMX-512/1990 signals into six independently controlled outputs.
- Protect-A-Fet™ 2.0 – Smart short-circuit detection for individual channel protection.
- IllumaSync™ Technology – Allows batch updating of multiple controllers for faster setup.
- Adjustable PWM Frequency – 1kHz to 35kHz for flicker-free dimming at all camera settings.
- 8-bit & 16-bit Resolution Modes – Ensures smooth, precise dimming and colour control.
- Customizable Gamma Correction – Fine-tune dimming response for optimized low-end or high-end performance.

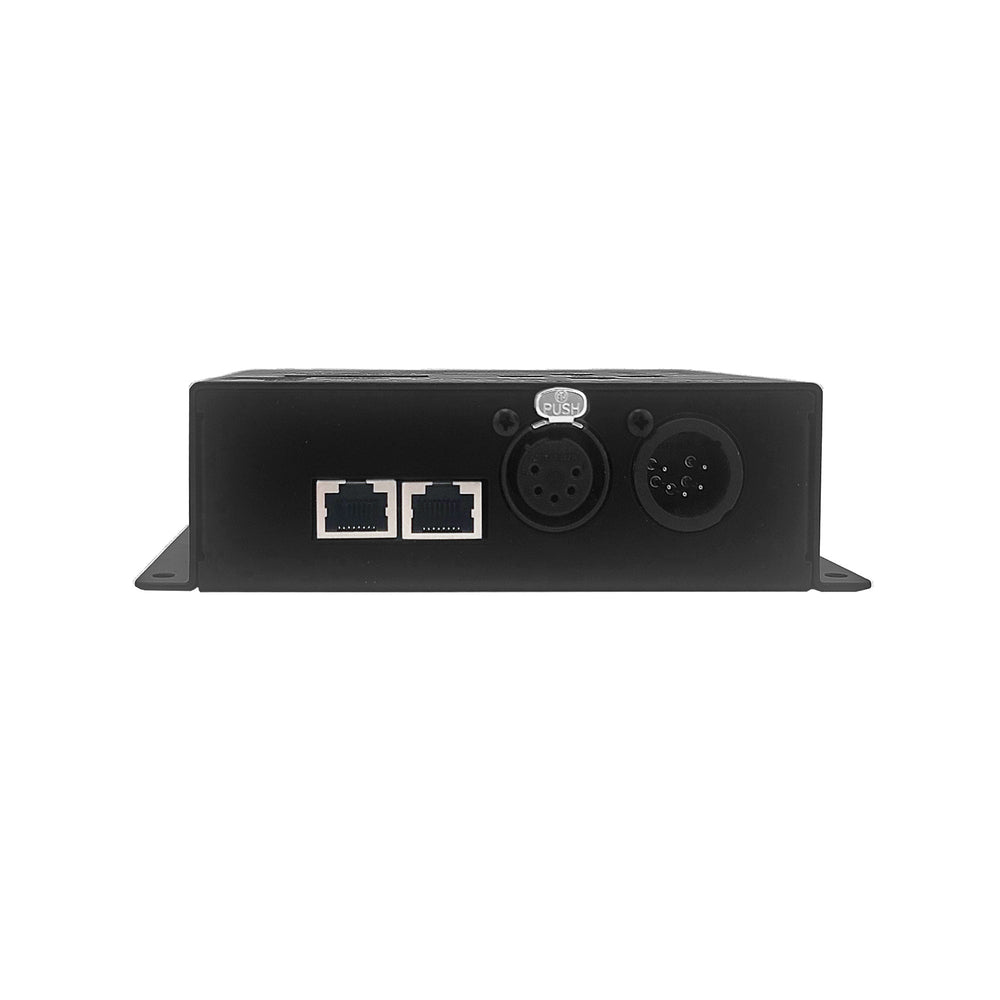

- Industry-Standard DMX Connectivity – Features 5-pin XLR and RJ45 Ethernet in/out for seamless integration.

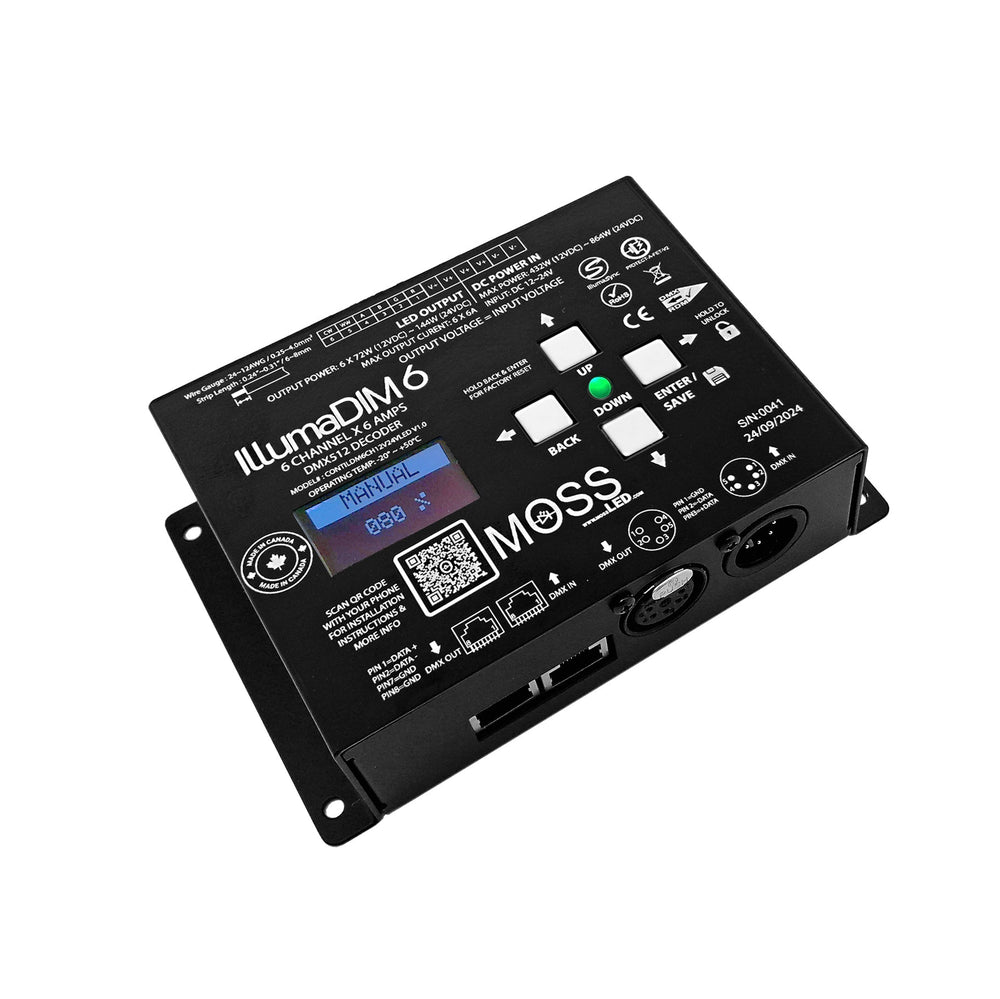

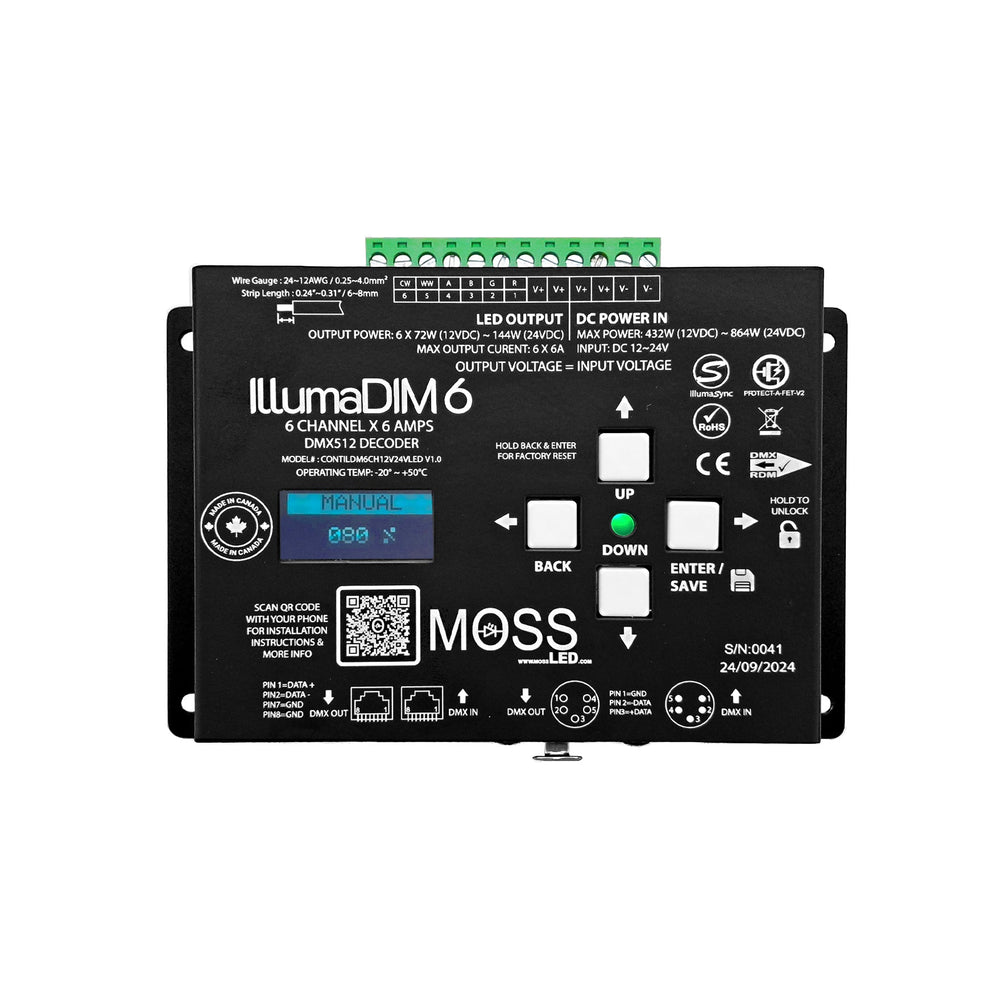

- OLED Graphical Display – Enables easy DMX addressing, manual mode, test control, and controller settings
- Enhanced Safety Features – Optically isolated DMX, voltage spike protection, and overcurrent detection.
- Three Preset Memory Slots – Save and recall manual scenes or DMX channel values instantly.
- Built-in Test Modes & Firmware Updates – Selectable via GUI, or RDM over DMX.
The IllumaDIM™ 6 DMX Dimmer delivers industry-leading performance and intelligent control, making it the ultimate choice for demanding professional lighting applications.
Need a custom solution? Contact us today!
Technical Specifications
|
Output Current (A)
|
:
|
6 CH @ 6A/CH = Max 36A
|
|
Output Power (W)
|
:
|
432W @ 12V / 864W @ 24V
|
|
Supply Voltage
|
:
|
12V ~ 24V DC
|
|
Size (mm)
|
:
|
L 110 mm 4.33”
W 150 mm 5.91”
H 40 mm 1.57”
|
|
Working Temperature
|
:
|
-20°C to + 50°C
|
|
Weight
|
:
|
300g
|
|
PWM Frequency
|
:
|
1000Hz to 35kHz
|
|
IP Rating
|
:
|
IP40 - Indoor Use Only
|
|
Flicker Free
|
:
|
Yes
|
|
Bit Rate
|
:
|
8 Bit & 16 Bit
|
Refer to Installation Guide Prior to Installing.
