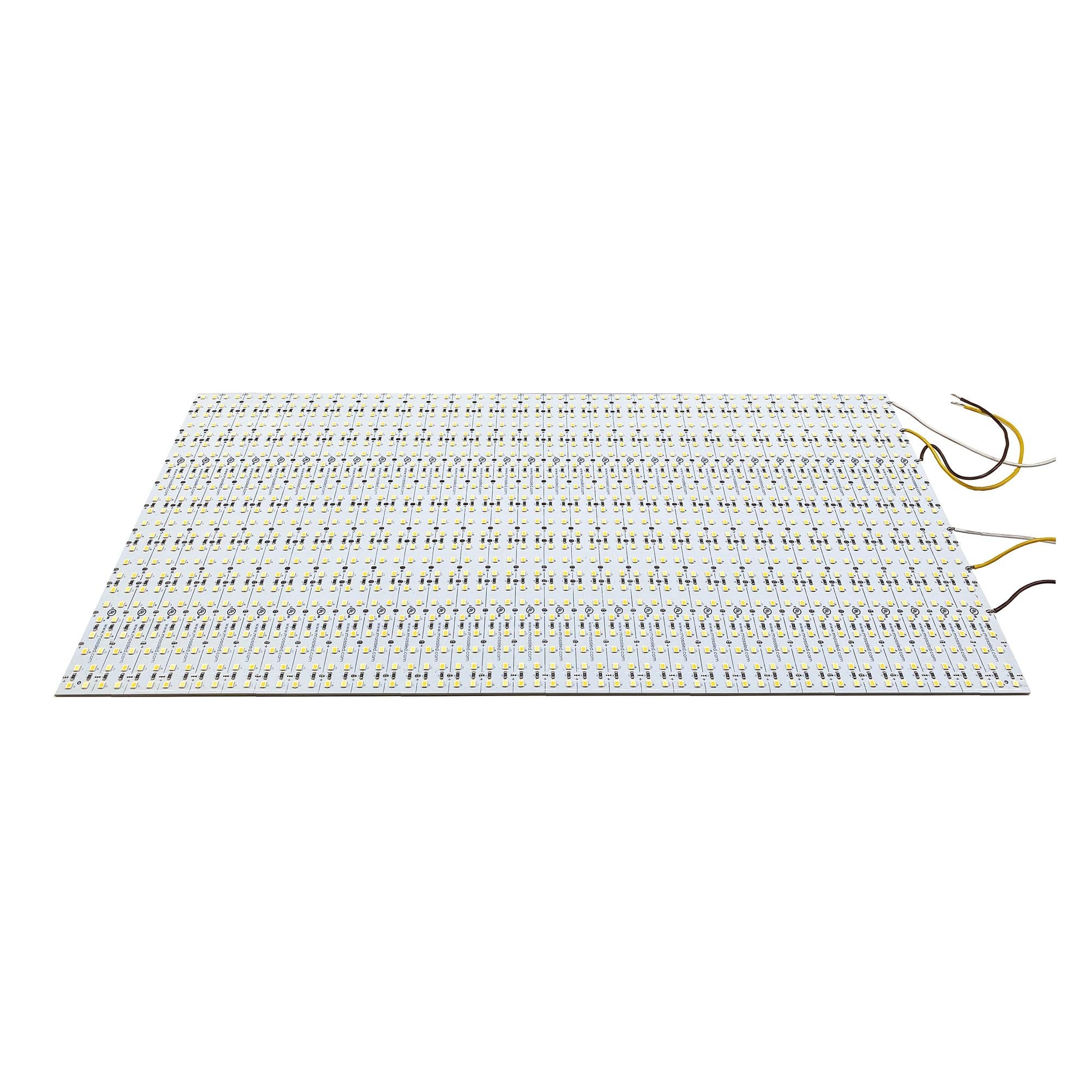

A highly durable colour temperature adjustable (3000k -> 5600k) panel for back-lighting, under-lighting, or anywhere
a high-output array of color-controllable LEDs are required.
The unit uses our newly-released High CRI 3000k and 5600k LED chips. CRI over 95 and R9 value consistently over 90.
Solder pads located on all four sides of the panel allow for easy connections between other panels.
| Product Type | : | Rigid Bi-Colour 3000k - 5600k |
| Product Code | : | LEDR-I24VBC3056-5024 |
| CRI | : | ≥95 |
| Kelvin | : | 3000k - 5600k |
| PCB Color | : | White |
| Current, Rating | : | 4.83 A / 1 meter panel |
| Voltage | : | 24 VDC |
| Wattage | : | 116 W / panel |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lux @ Full | : | 14,005 |
| FC @ 36" | : | 330 |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | Not Cuttable |
| LED Quantity | : | 1,440 / panel |
| Number of Contacts | : | 3 |
| LED Type | : | 2835 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Dimensions | : | 240 MM X 500MM |
| Maximum Recommended Panels | : | 8 X 500 MM Panels |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 3M 300MP |
Specification Sheet
