Extremely reliable and robust medical-grade power supply. Perfect for on-camera and constant-on use with our FlexLED Tape and any 24V DC LED product. Class II & Class 2 safety ensures short-circuit, overload, and over-voltage protection. Safe, powerful, and reliable are the cornerstones of our the OWA line of power supplies from Mean Well. Comes with a standard 2-prong North American input power plug.

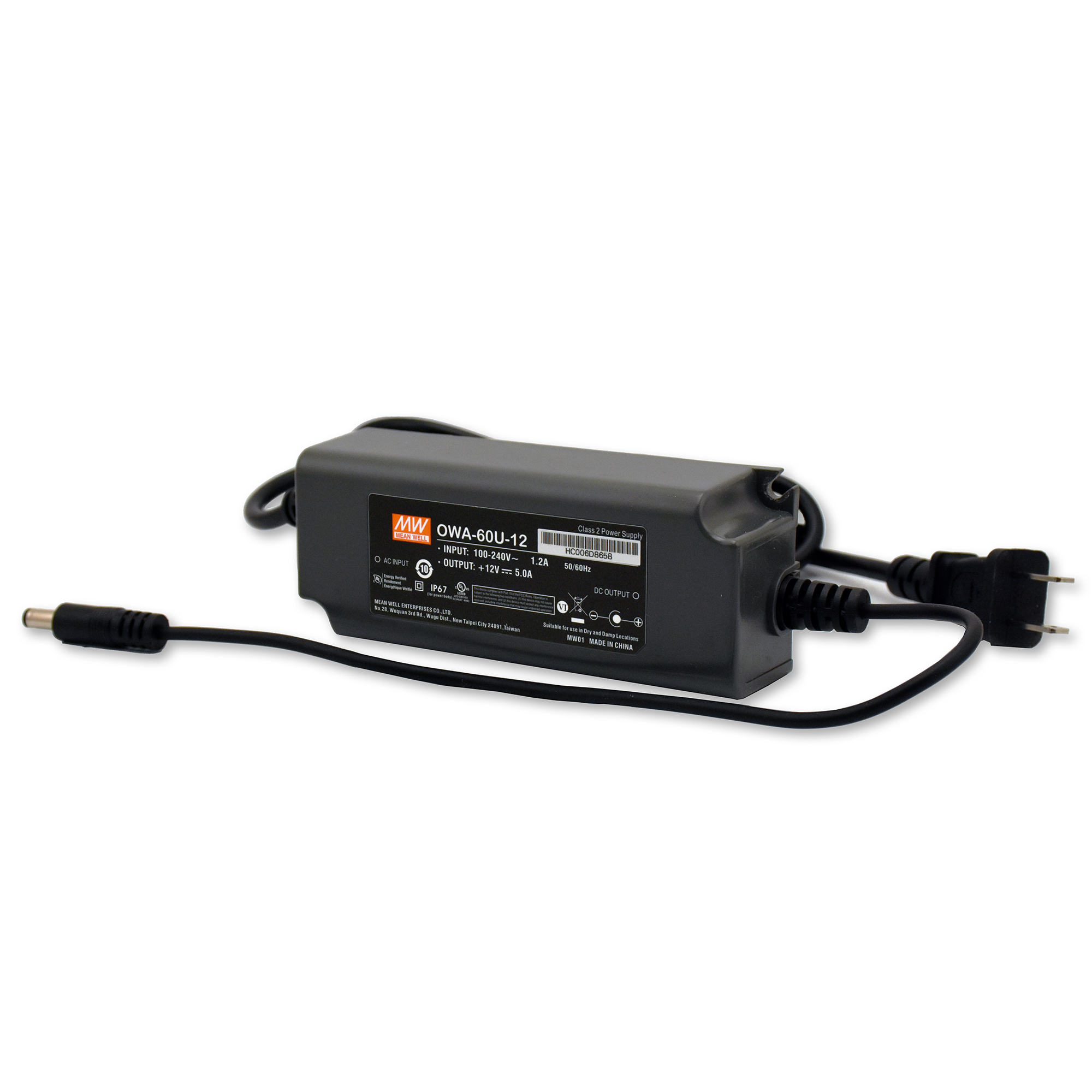

Output plug for 60W version is a standard DC Barrel Connector (P1M)

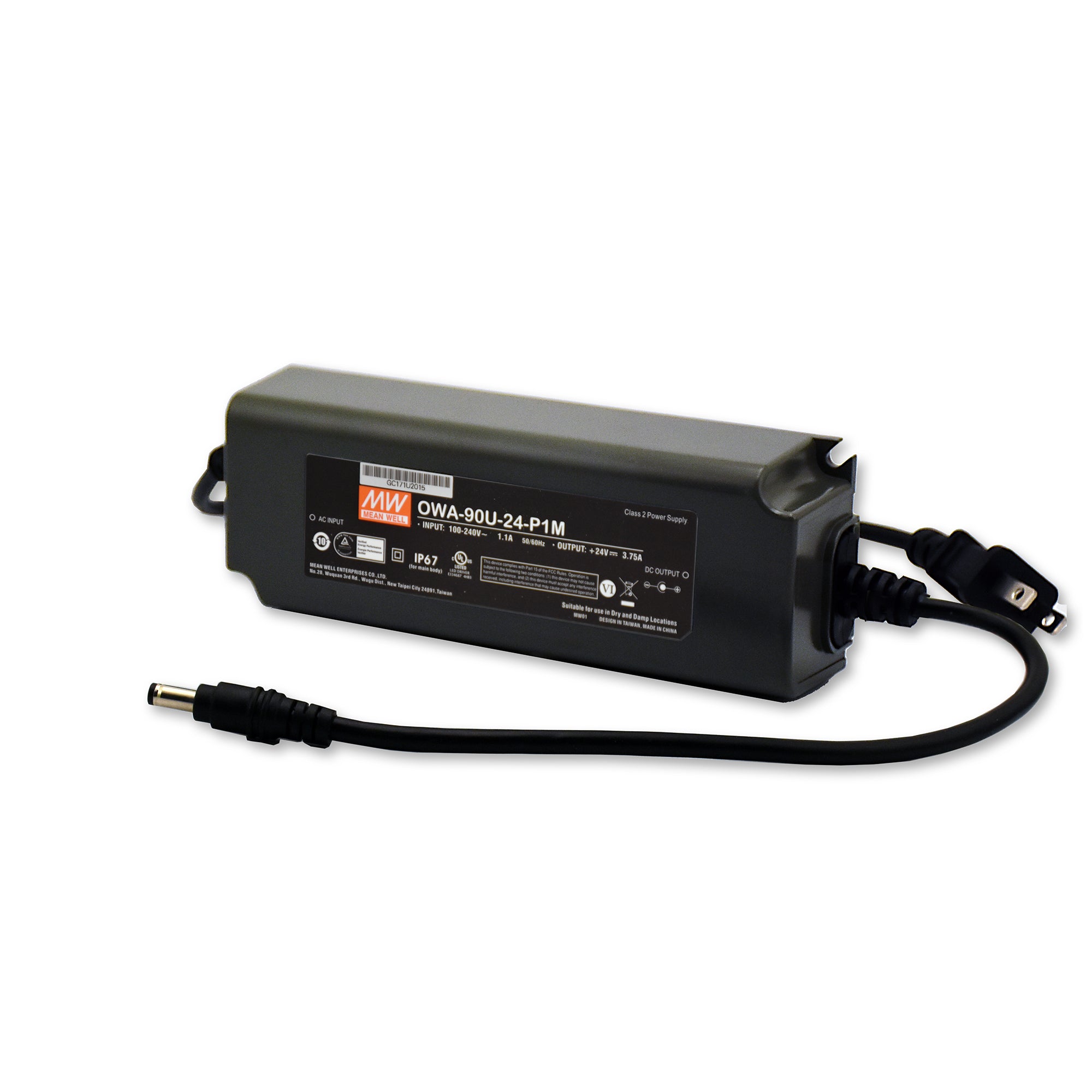

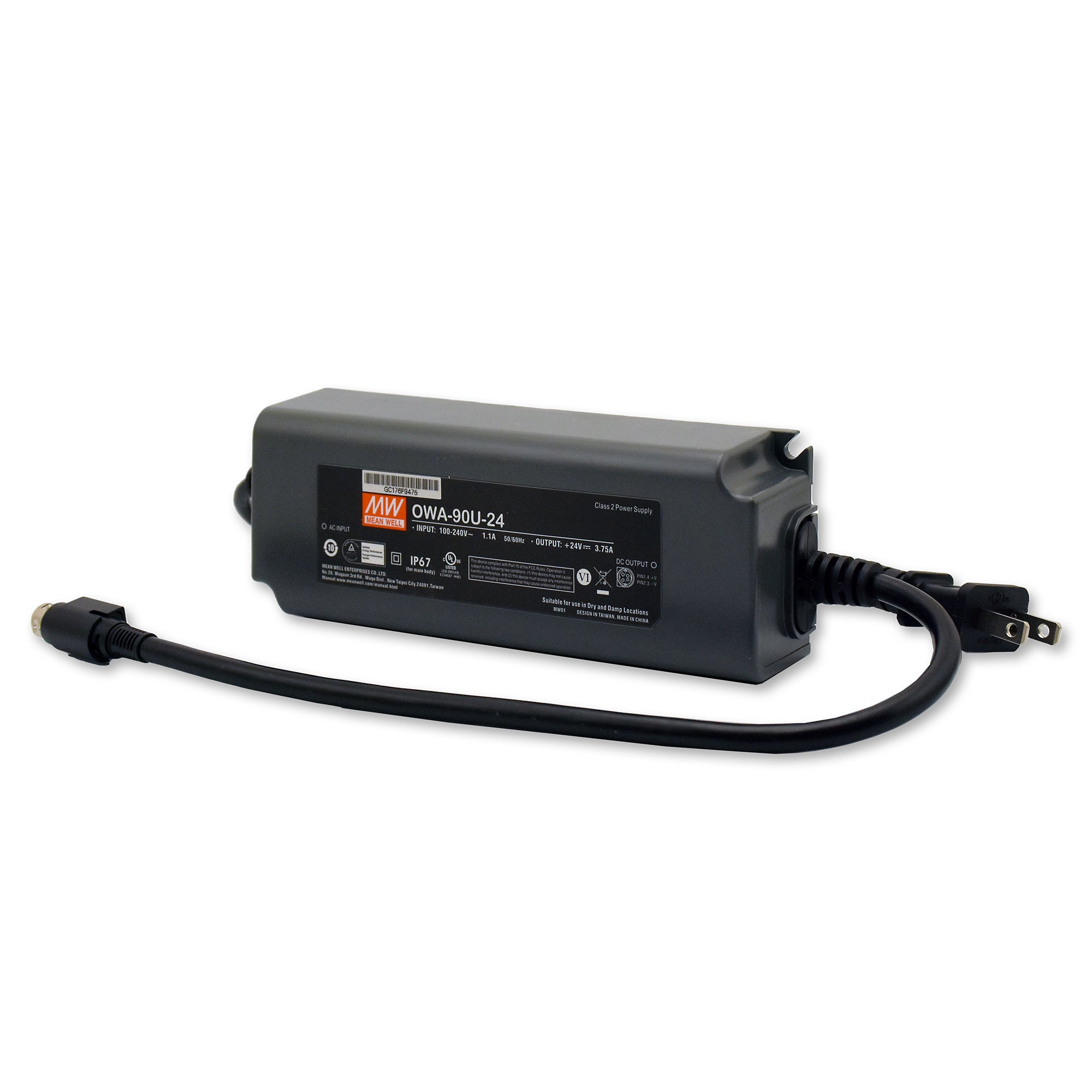

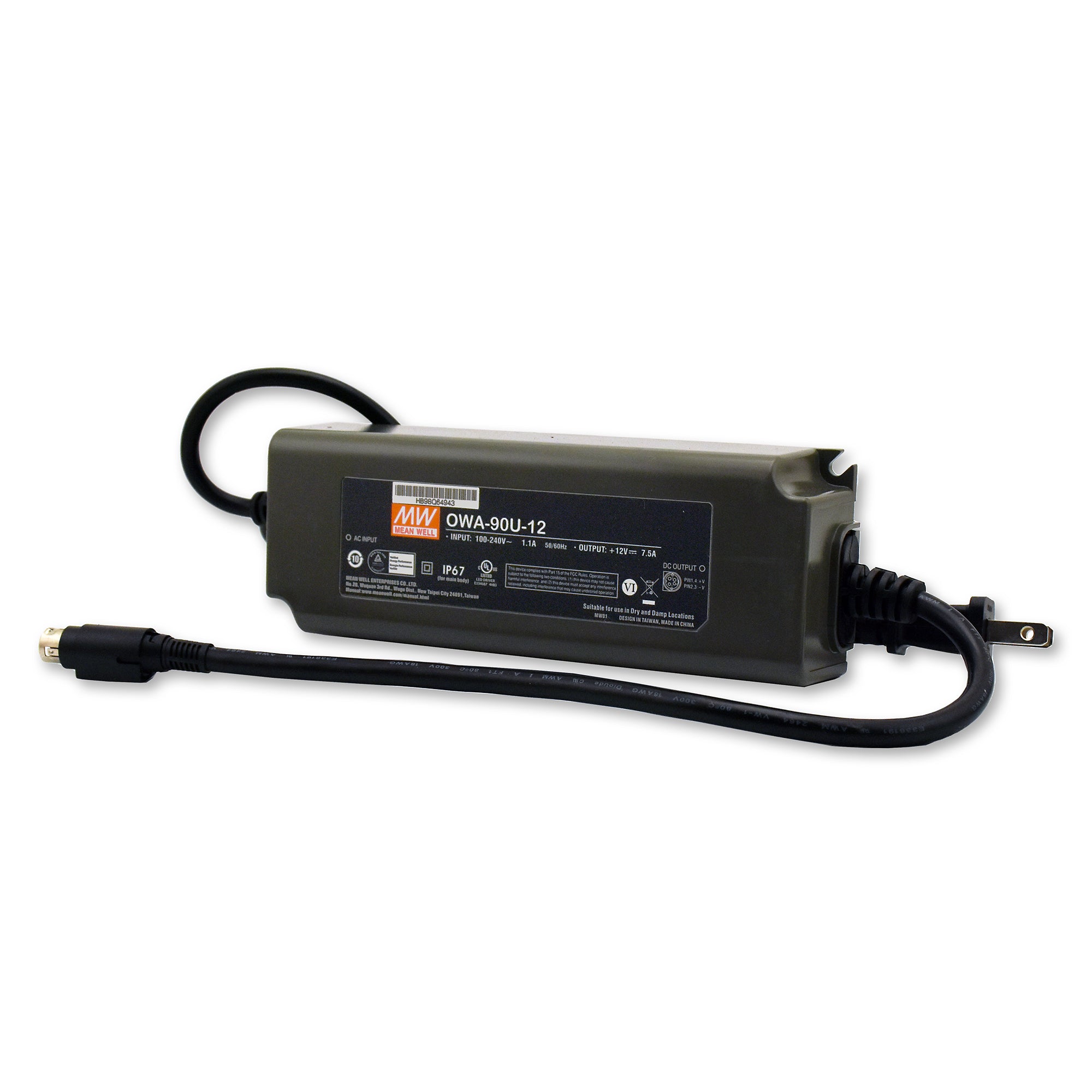

Output plug for 90W version is standard DC Barrel Connector (P1M) or R7B locking 4-pin DIN connector

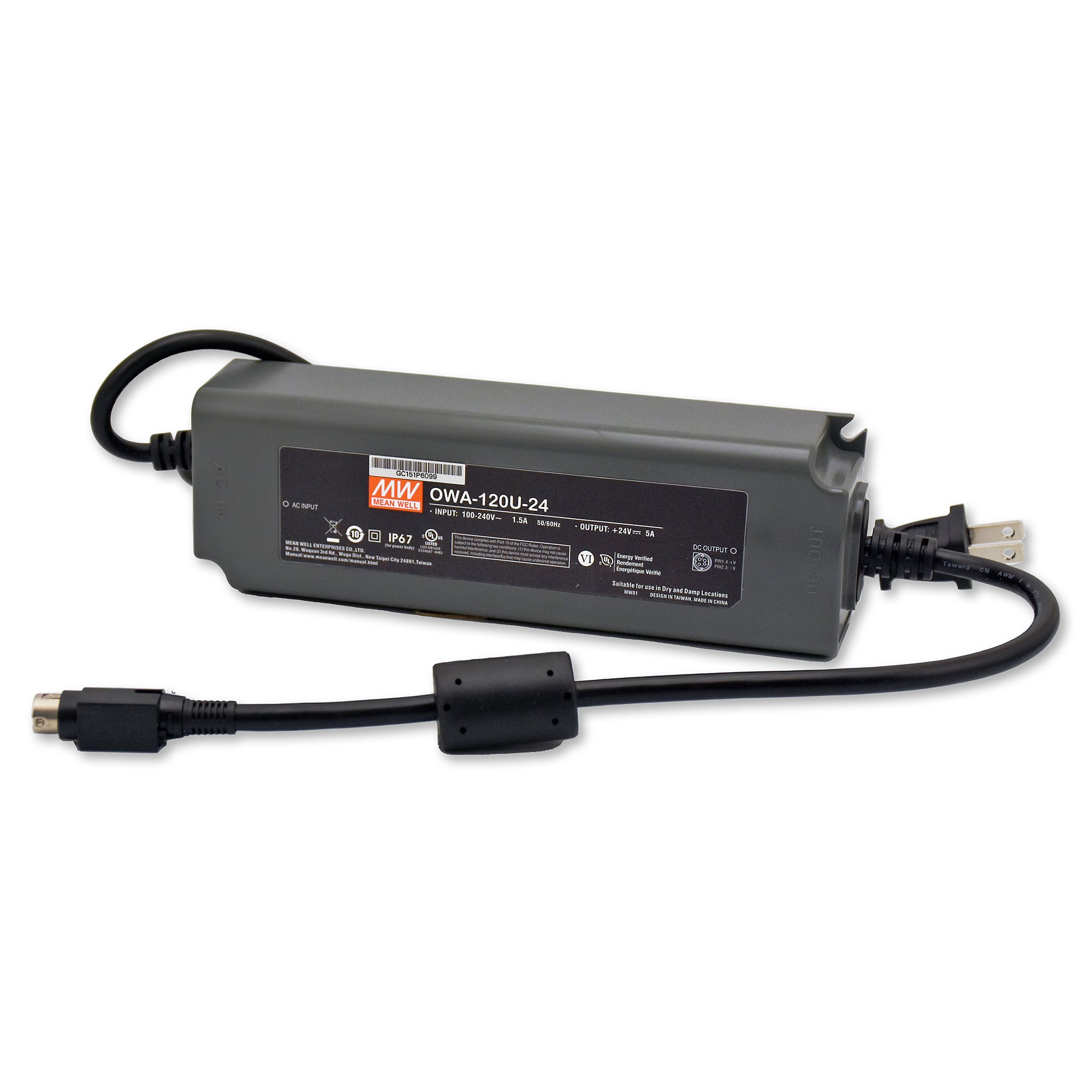

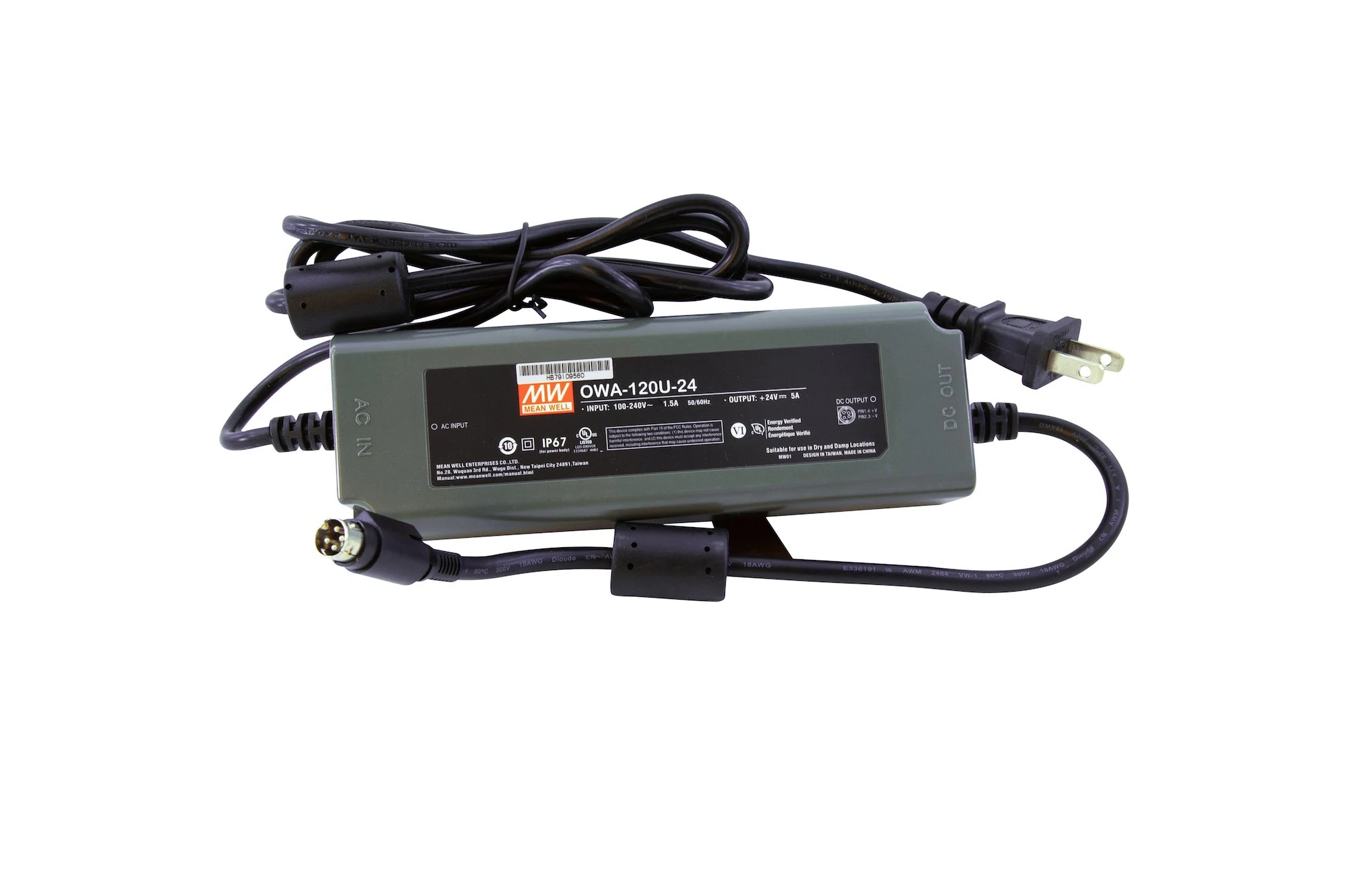

Output plug for 120W version is a locking 4-pin DIN connector (R7B)
- Output 60W / 90W / 120W
- Class II
- Class 2 (60W @ 12V & 60W @ 24V & 90W @ 24V)
- Fanless Design
- UL Listed, suitable for dry & damp locations
- 5 year warranty
- 91% high efficiency
- Mounting Holes
SPECIFICATIONS - 60W LED Driver
60W 24V LED Driver Specifications
| Voltage (V) | : | 12V DC OR 24V DC |
| Current (A) | : | Various |
| Output Power (W) | : | 60W / 90W / 120w |
| Agency Approvals | : | UL/CUL/CE/FCC/TUV/CB |
| Size (inches) | : | Various - See Datasheet |
| Ripple & Noise (mV p-p) | : | 150 |
| Load Regulation () | : | +-1% |
| Line Regulation () | : | +-1% |
| Efficiency | : | 88.5% |
| Frequency Range | : | 47 ~ 63 Hz |
| Universal AC input | : | 90 ~ 264VAC 127 ~ 370VDC |
| Low leakage current | : | < 50 amps |
| Protections: | : | short circuit, over voltage, over current, over temperature |
| AC Input | : | 2 pole IEC320 |
| Housing | : | Fully enclosed plastic case |
| Medical safety approved | : | 2 x MOPP between primary and secondary |
| Class | : | Class II power & Class 2 (w/o ground pin) |
| Indicator | : | LED indicates power on |
| Standby Power Consumption | : | < 0.1 watts |
| Output Connector Type | : | Cylindrical Female |
| Output Connector Diameter | : | 2.1mm x 5.5mm |
| Output Polarity | : | Center Positive |
| Product Type | : | AC to DC Power Supply |
| MFR Product Family | : | OWA |
| Operating Temperature | : | -35C to 70C |
| Power Supply Color | : | Black / Grey |
