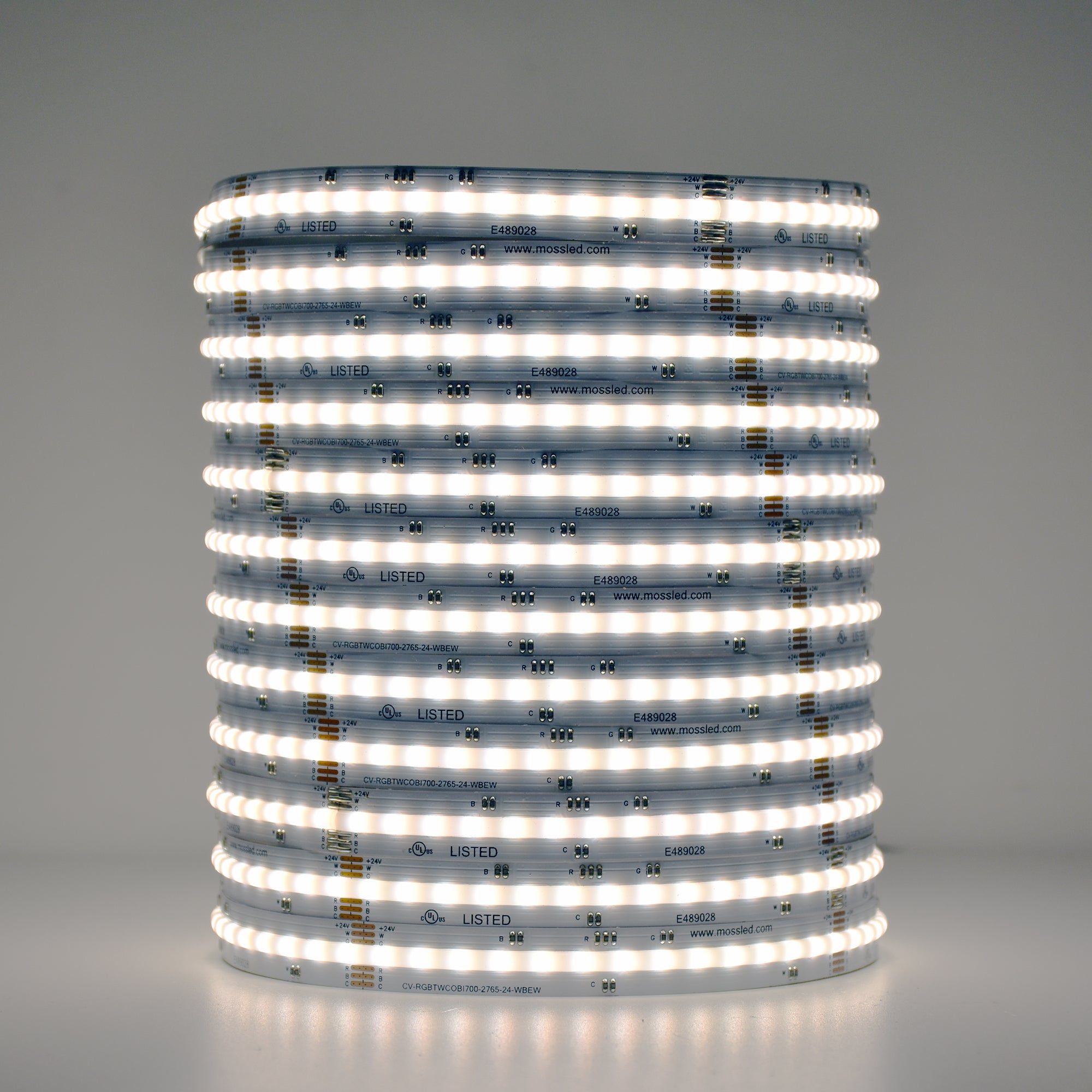

700 LED/Meter SoftFlex LED Tape in 24V DC (5 meter lengths)
Our SoftFLEX (COB) series of flexible LED creates a virtually seamless, diffused, soft output without the ability to see individual pixels unlike our traditional FlexLED strips. The innovative design shows minimal hot spots & dark spots making it ideal in locations where you may be able to see the LED or its reflection. The SoftFLEX 700 RGB+WW+CW is only 12MM in width which makes it suitable for narrow locations. Using chip-on-board (COB) technology the phosphor coating also acts as the diffuser creating almost pixel-free light output.
The 700 RGB+WW+CW arranges the Red, Green, Blue & Dual White pixels in a linear format which allows for a narrow 12MM width and at the same time providing convenient solder pads on top of the PCB. For comparison, our SoftFLEX LED 1134 RGB 24V & SoftFLEX LED 1008 Dynamic White (Bi-Colour) 24V arranges the pixels in a parallel format. The two different designs result in a very different visual effect in spite of both being part of the SoftFLEX family.
Reliable, high efficacy and high heat dissipation ensuring a long life-span.

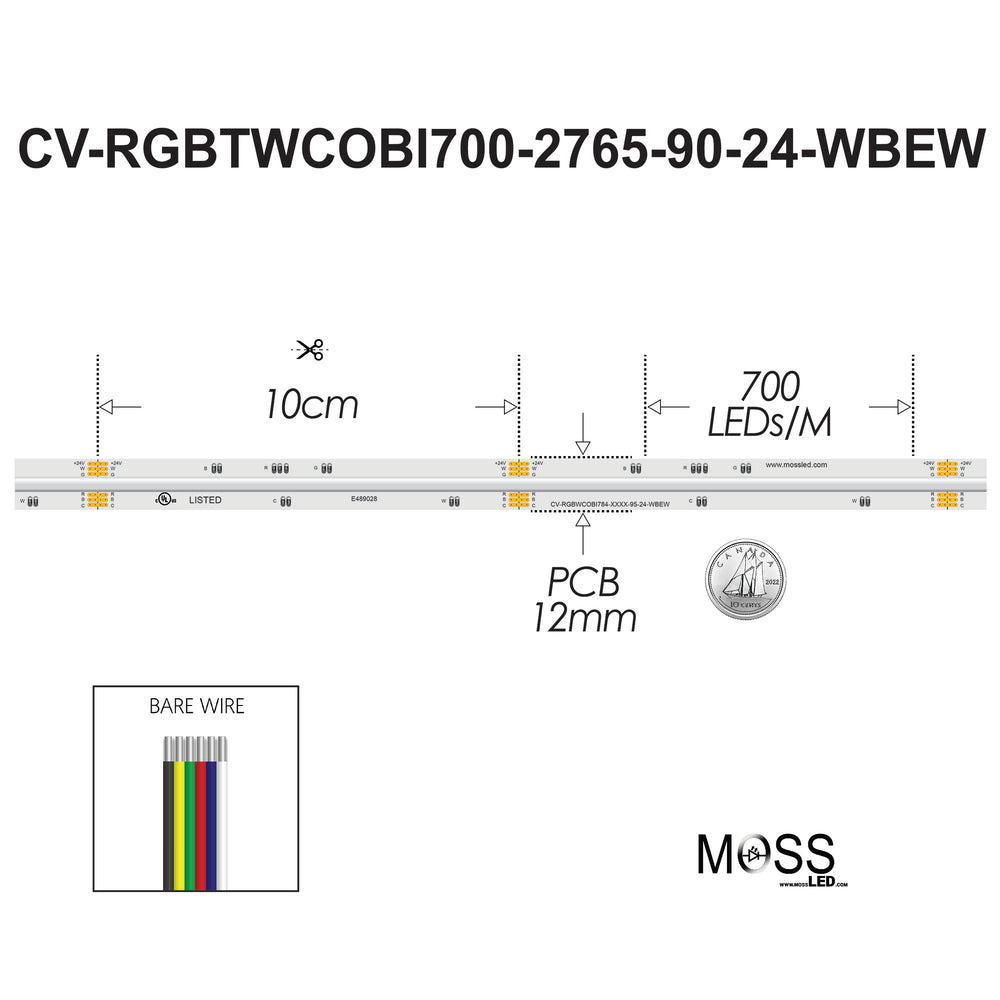

Cuttable every 10CM (3.94”) the SoftFLEX 700 is extremely customizable and is a perfect solution for countless lighting challenges. I
Indoor and weatherproof strips have double-sided tape on the back which makes installation as easy as peel n stick. Waterproof must be mounted using silicone (not provided).
Soldering Guidelines: Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
Controller, power supply and extension cables sold separately. Quantity discounts and custom colour temperatures are available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
Important: due to the high LED density, cutting exactly on the cutting lines (+/-0.2mm) is critical, otherwise you may damage the LED segment.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB + 2700k + 6500k Colour Changing 700 |
| Product Code | : | CV-RGBTWCOBI700-2765-90-24-WBEW |
| CRI | : | 90+ |
| Kelvin | : | RGB+WW+CW |
| PCB Color | : | White |
| Current, Rating Per Meter | : | 0.83 A |
| Voltage | : | 24 VDC |
| Wattage Per Meter | : | 20 W / METER TOTAL------11 W / METER @ RGB------4W / METER @ 2700K------3W / METER @ 6500K |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP21 |
| Lumens @ Full per meter | : | 840 lm total------532 lm @ RGB------305lm @ 2700k------311lm @ 6500k |
| Lumen / Watt | : | 42 lm/w total------48lm/w @ RGB------76lm/w @ 2700k------103lm/w @ 6500k |
| Lifetime* | : | 40,000 hours |
| Cutting Length | : | 10 CM |
| LED Quantity per meter | : | 700 chips |
| Number of Contacts | : | 6 |
| LED Type | : | COB |
| Copper Quantity (ounce) | : | 2 |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 12MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 |
| Adhesion | : | 3M 55280 |
DOWNLOADS
Specification Sheet
UL Certificate of Compliance
Download IES Files - SoftFLEX LED 700 RGB+WW+CW 24V*nominal lifetime - dependent on installation location
