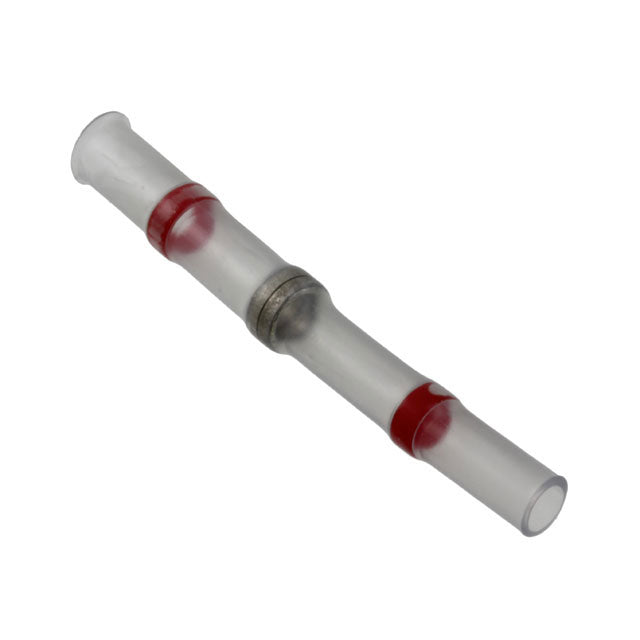

Designed for quickly connecting wire to wire, replaces a butt crimp. One-piece design makes installation easy and lowers the installed cost
RUGGED
• Transparent polyvinylidene fluoride or polyolefin sleeve provides encapsulation, inspectability, strain relief, and insulation
• With one or two wires per end, the NAS 1744 splices meet 75,000 ft [22,000 m] altitude immersion requirement
CAPABLE
• Prefluxed solder preform provides a controlled soldering process
• UL and CUL recognized (CWT + D-110)
EASY TO USE
• Thermochromic temperature indicator in the NAS splices facilitates termination and inspection
SPECIFICATIONS
| Style | : | Butt Splice Solder Sleeve |
| Wire Range In. (mm) | : | 16AWG - 26AWG |
| Length In. (mm) | : | 1.655" (42.04mm) |
| Type | : | Wire to Wire |
| Diameter |
: | 0.105" (2.67mm) |
| Minimum Wire Temp Rating |
: | 85°C [185°F] |
| Maximum Wire Temp Rating |
: | 125°C [257°F] |
| UL Listed | : | Recognized Component |
| : | ||
| RoHS Compliancy Status | : | Compliant |
Wire Parameters
